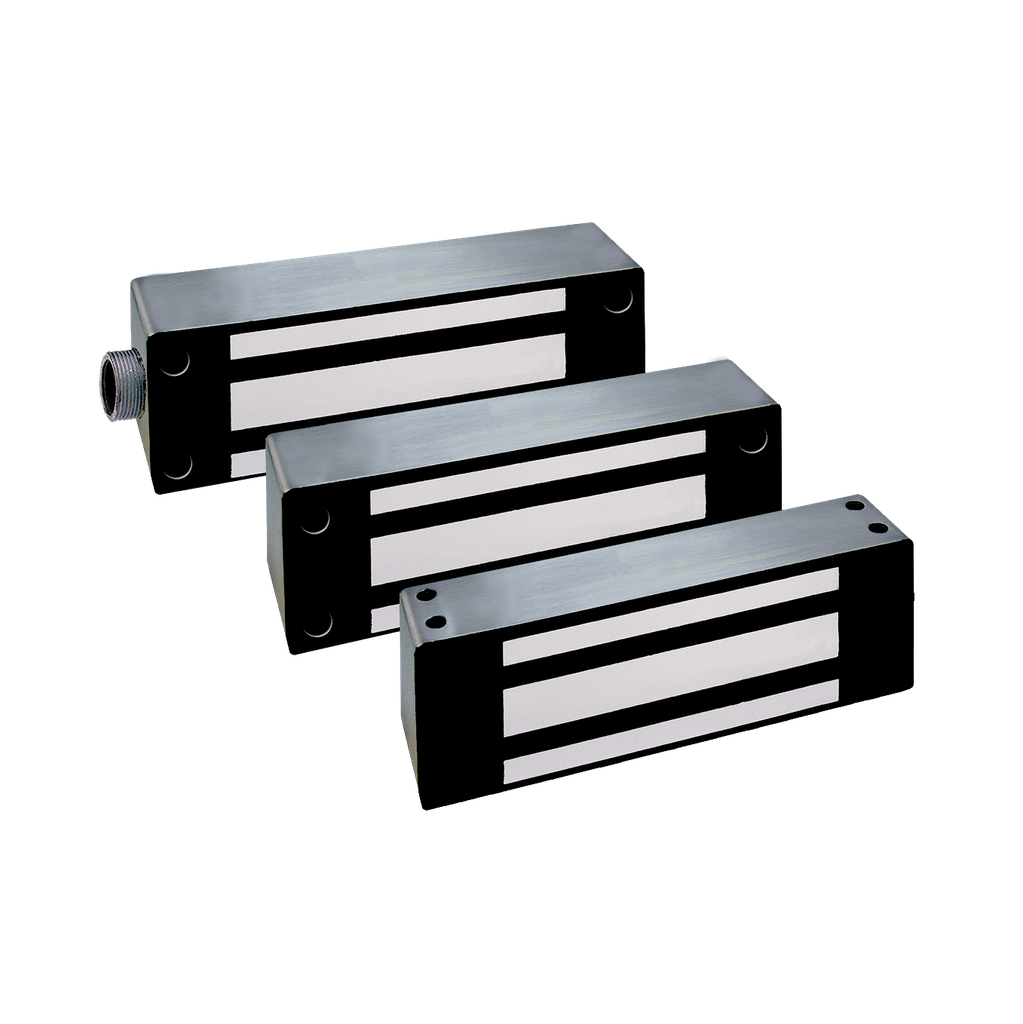

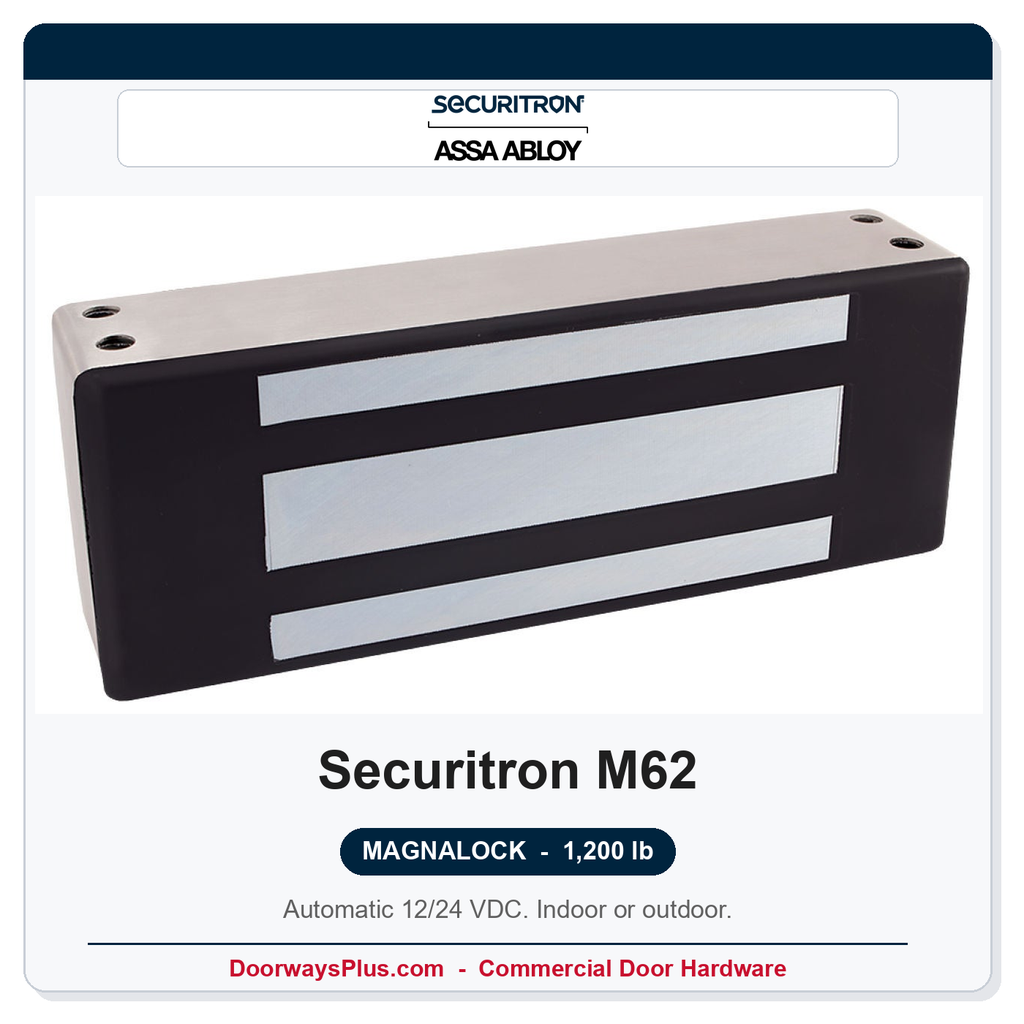

Securitron M62 Magnalock – 1,200 lb Holding Force Electromagnetic Lock
The Securitron M62 Magnalock is a heavy-duty, direct-mount electromagnetic lock delivering 1,200 lbs of holding force for demanding commercial and institutional access-control applications. Designed for both indoor and outdoor use, the M62 features automatic dual voltage operation (12/24 VDC) — no manual switching required — making it compatible with a wide range of access control panels and power supplies. With its UL 10C 3-hour fire rating and sealed electronics, the M62 is engineered to perform reliably in code-compliant, high-security openings.
Key Features & Benefits
- 1,200 lb Direct-Mount Holding Force: Provides robust security for high-traffic commercial doors, corridors, and controlled-access entryways.
- Automatic Dual Voltage (12/24 VDC): Draws 250 mA at 12 VDC or 150 mA at 24 VDC and self-selects the supply voltage — simplifying integration with existing power infrastructure.
- UL 10C 3-Hour Fire Rated: Meets stringent fire-rated opening requirements; suitable for use on fire-labeled door assemblies when installed with a compliant fire-alarm release.
- Indoor & Outdoor Rated: Sealed electronics and a wide operating temperature range of -40°F to 140°F make the M62 suitable for exterior applications, parking structures, and harsh environments.
- Sealed Electronics: Protects internal components from dust, moisture, and environmental contaminants — extending service life and reducing maintenance needs.
- Compact, Low-Profile Design: At just 8 × 1-3/4 × 3 inches, the M62 mounts discreetly on most standard door frames and headers without heavy modification.
- 10 ft Lead Cable Included: Pre-wired with a 10-foot cable for straightforward connection to the access control system or power supply.
- Satin Stainless Finish (US32D/630): Coordinates with a broad range of commercial door hardware and architectural finishes.
Applications
- Commercial office buildings and tenant-access corridors
- Healthcare facilities, schools, and government buildings requiring fire-rated access control
- Exterior doors and entry vestibules in all-weather environments
- Server rooms, data centers, and restricted-access areas
- Retrofit or new-construction access control installations
Important Installation Notes
The M62 requires compatible latching hardware (such as a door coordinator or latching accessory) to maintain proper door alignment and magnet-to-armature contact. A fire-alarm release interface is mandatory on fire-rated openings per code. This lock does not function as a standalone push-button sole-release device. Do not use lithium or NiMH battery backup systems with AQD/AQS accessories.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62 |
| Manufacturer | Securitron |
| Holding Force | 1,200 lbs |
| Voltage | 12/24 VDC (automatic dual voltage) |
| Current Draw | 250 mA @ 12 VDC / 150 mA @ 24 VDC |
| Fire Rating | UL 10C, 3-Hour |
| Grade | Grade 2 |
| Operating Temperature | -40°F to 140°F |
| Environment | Indoor / Outdoor (sealed electronics) |

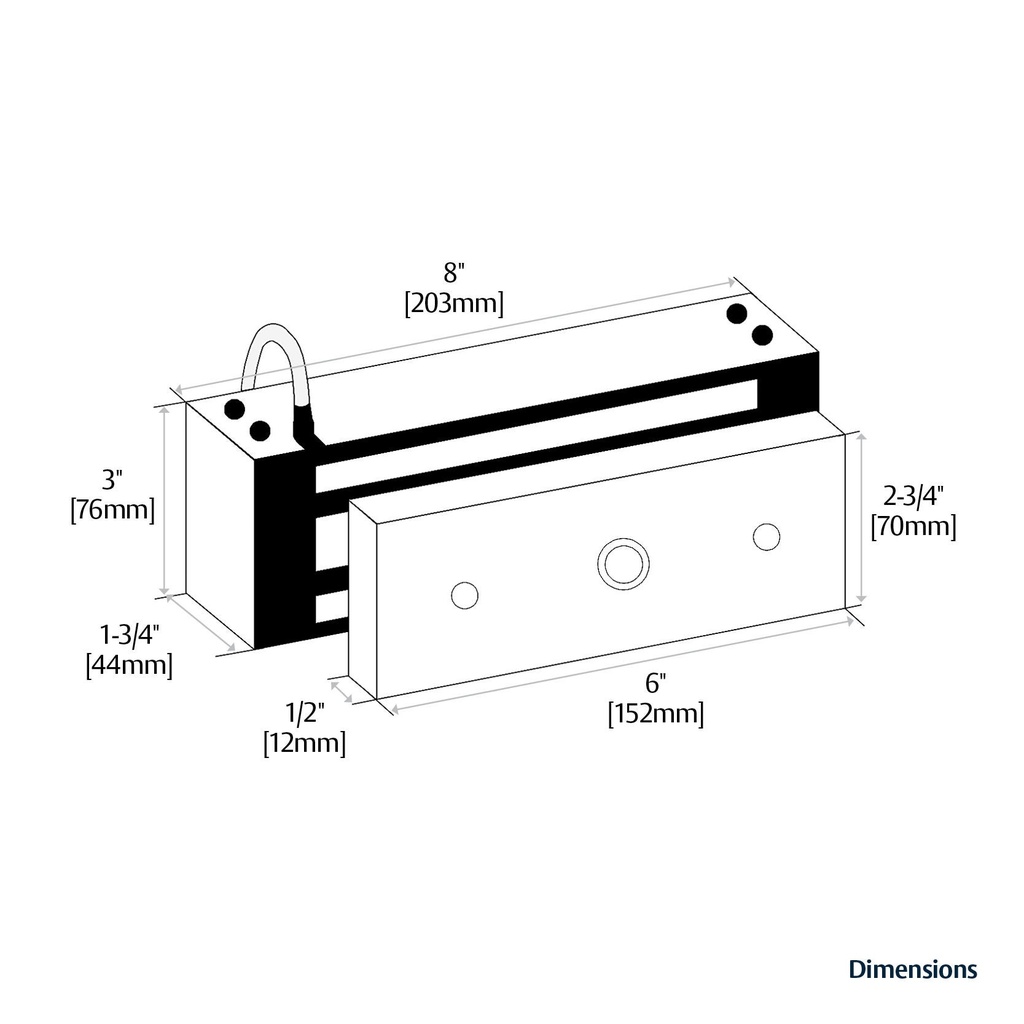

| Dimensions | 8 x 1-3/4 x 3 in. |
| Finish | US32D / 630 (Satin Stainless) |
| Lead Cable | 10 ft included |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
