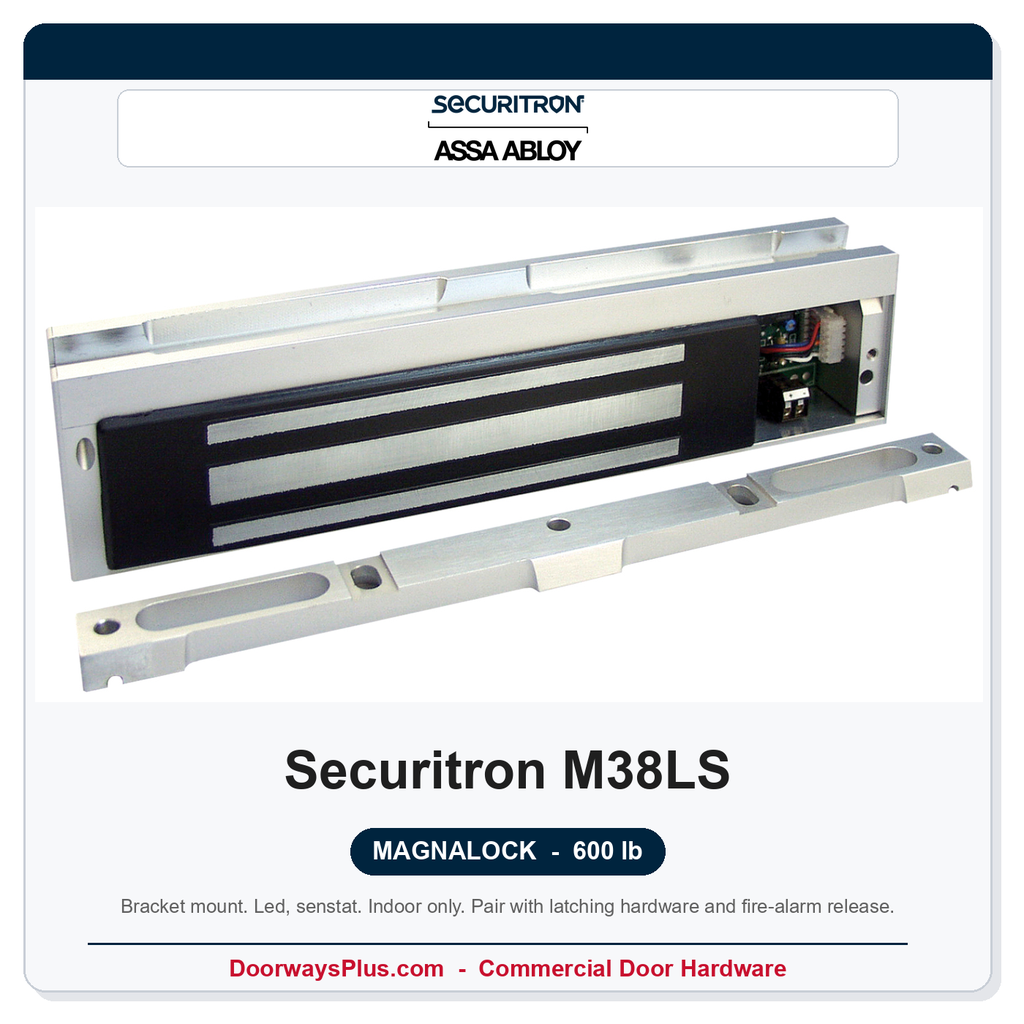

Securitron M38LS Magnalock 600 lb | LED, Senstat

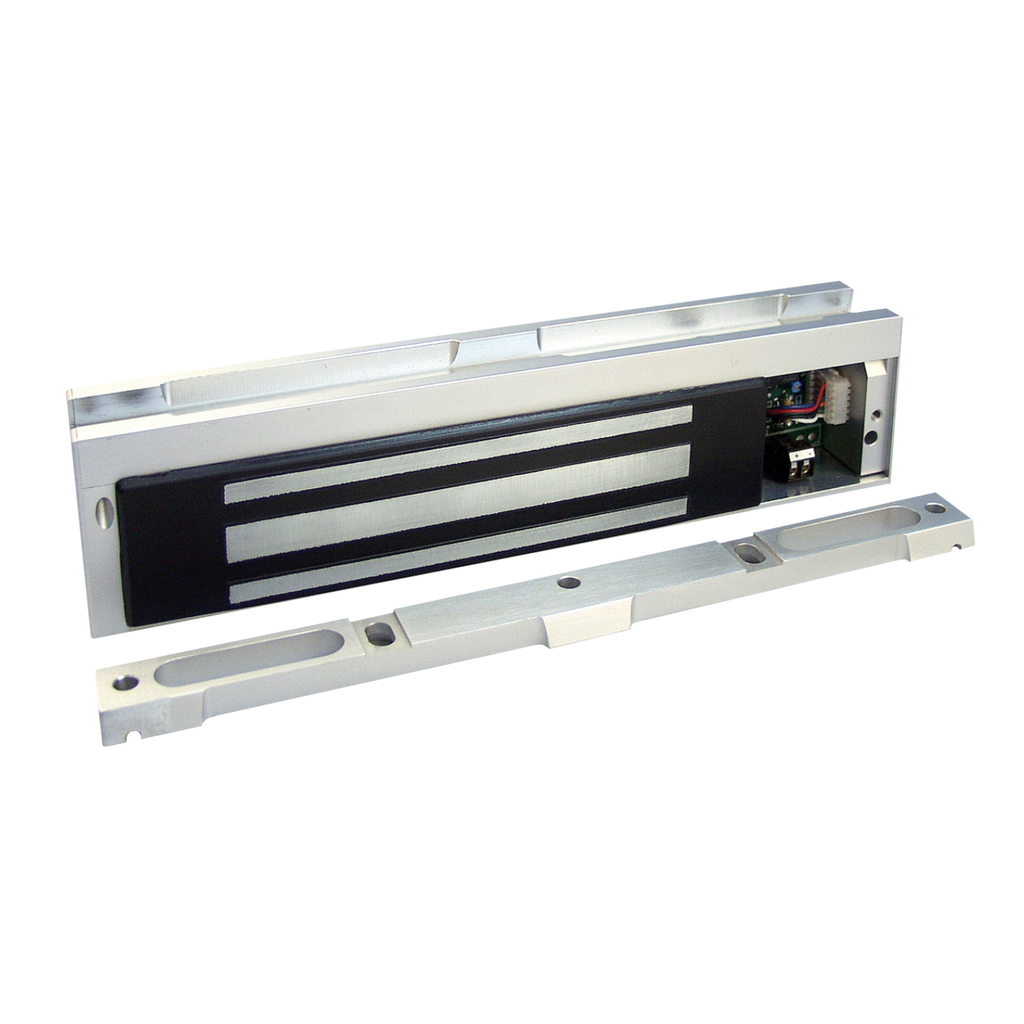

The Securitron M38LS is a bracket-mount electromagnetic lock (maglock) delivering 600 lb holding force for commercial access-control applications. Designed for indoor use only, this unit ships in a 630 satin stainless finish and features an integrated LED status indicator and Senstat door-position sensing technology. The M38LS accepts automatic 12/24 VDC input, drawing 325 mA at 12 VDC or 175 mA at 24 VDC, making it compatible with a wide range of access-control power supplies. It carries a UL 10C one-hour fire-rated listing and meets ANSI/BHMA A156.23 Grade 3 (E18501-500) standards.
Important egress note: A maglock is not a complete egress solution on its own. It must be paired with appropriate latching hardware, a compliant fire-alarm release interface, and request-to-exit devices per applicable code. A standalone push button alone does not constitute a code-compliant egress release.
Key Features & Benefits
- 600 lb Holding Force: Provides robust, reliable door security suited to commercial interior access-control openings.
- Bracket-Mount Design: Enables installation on doors where a direct-mount configuration is not feasible, offering installation flexibility for a variety of frame and door conditions.
- Automatic 12/24 VDC Operation: Dual-voltage auto-sensing simplifies integration with existing power supplies and reduces wiring complexity.
- LED Status Indicator: Provides at-a-glance visual confirmation of lock energized/de-energized state for quick field diagnostics.
- Senstat Door-Position Sensing: Monitors door position and reports status to the access-control system; note that Senstat is a distinct technology and is not the same as BondSTAT.
- UL 10C Listed – 1-Hour Fire Rating: Suitable for use on rated fire-door assemblies where the assembly is tested and approved for that application.
- ANSI/BHMA A156.23 Grade 3 Certified: Tested and graded to a recognized industry standard for electromagnetic locks (E18501-500).
- 630 Satin Stainless Finish: Durable, corrosion-resistant finish consistent with commercial-grade architectural hardware standards.
- Wide Operating Temperature Range: Rated 32 °F to 110 °F, appropriate for conditioned interior environments.
Typical Applications
- Commercial office and corporate interior access-control doors
- Healthcare and institutional interior corridor doors
- Educational facility interior secured openings
- Government and municipal building interior access points
- Any indoor commercial opening requiring electromagnetic locking with fire-alarm release integration
Technical Details
| Feature | Details |
|---|---|
| Manufacturer | Securitron |
| Model Number | M38LS |
| Series | Magnalock |
| Mount Type | Bracket mount |
| Holding Force | 600 lb |
| Voltage | Automatic 12/24 VDC |
| Current Draw | 325 mA at 12 VDC / 175 mA at 24 VDC |
| Body Dimensions | 10-1/2 in L × 2-1/2 in H × 2-1/2 in D |
| Finish | 630 Satin Stainless |
| Features | LED status indicator, Senstat door-position sensing |
| Fire Rating | UL 10C – 1 Hour |
| Standard | ANSI/BHMA A156.23 Grade 3 (E18501-500) |
| Operating Temperature | 32 °F to 110 °F |
| Environment | Indoor use only – not rated for outdoor or weatherproof applications |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | LED |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
