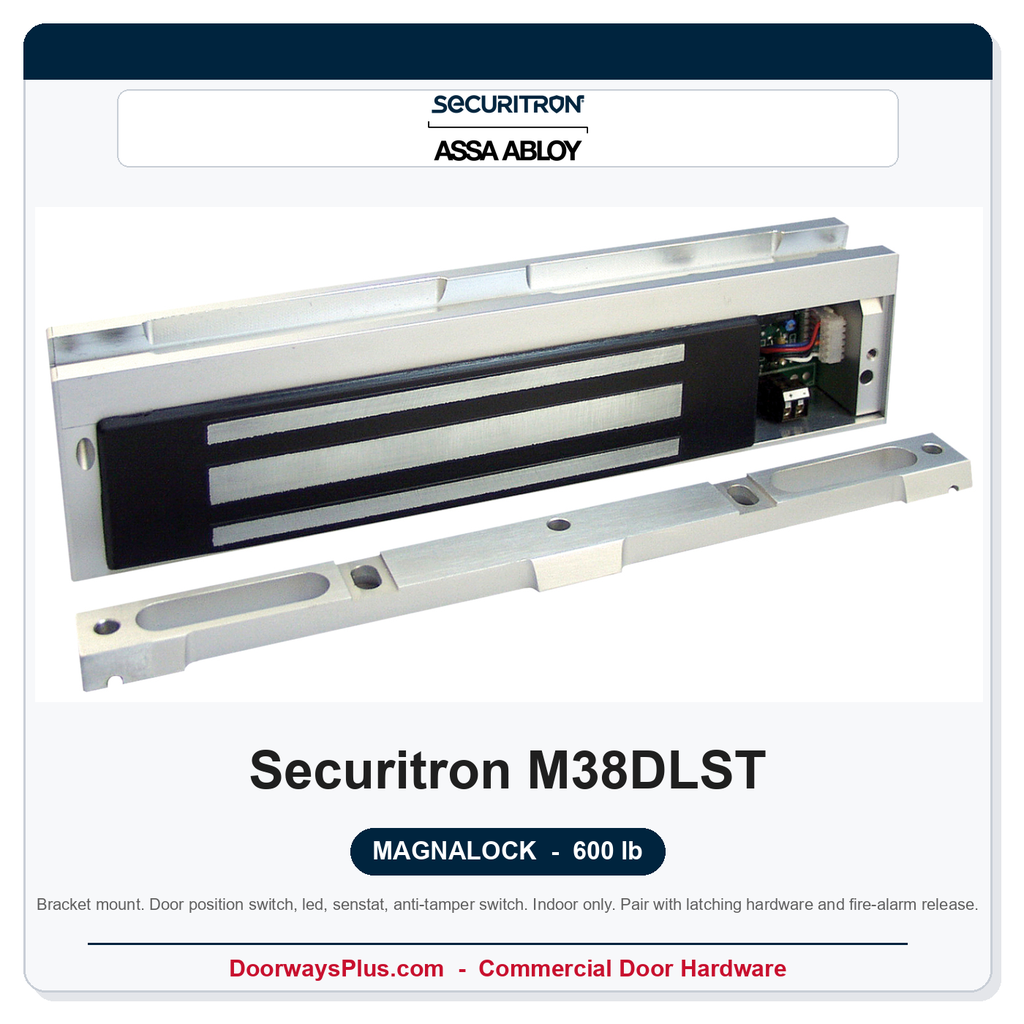

Securitron M38DLST Magnalock 600 lb | LED, Door Position Switch, Senstat, Anti-Tamper

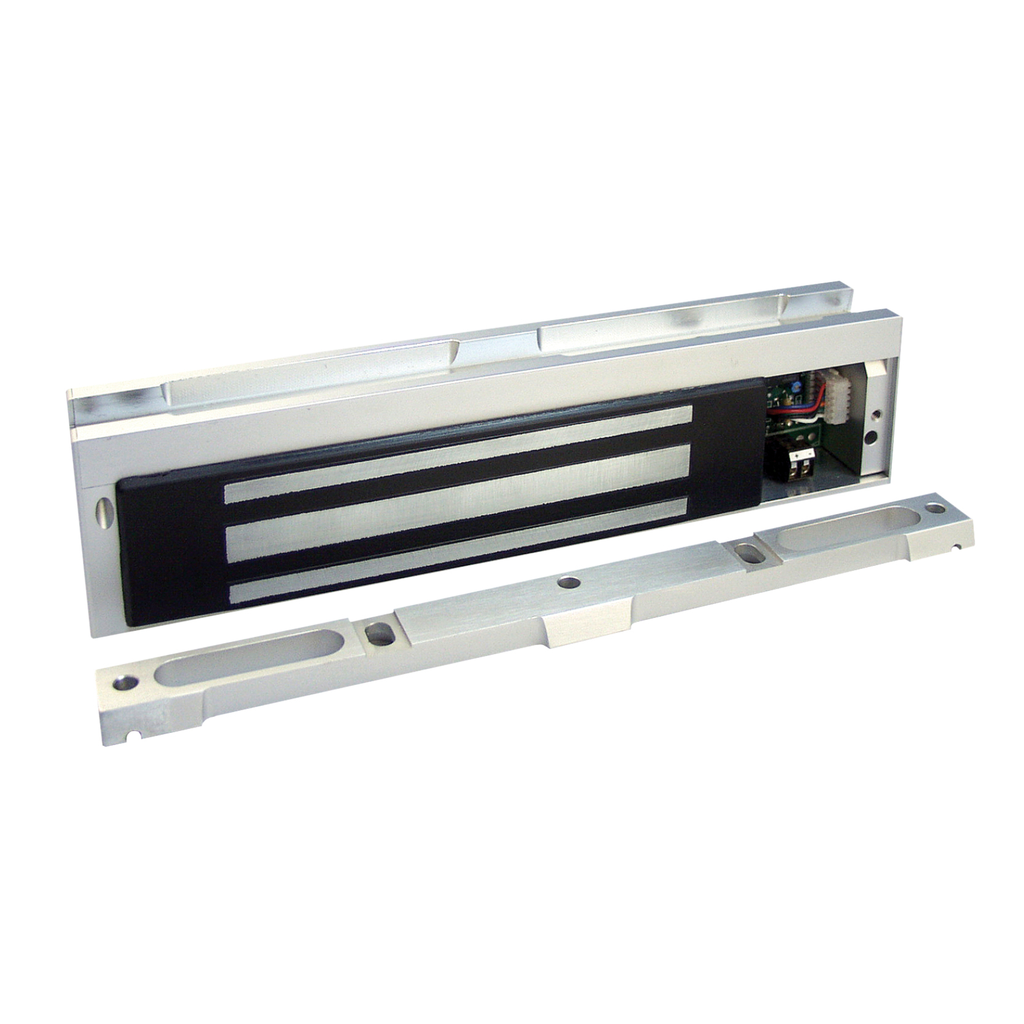

The Securitron M38DLST is a 600-pound holding-force electromagnetic lock designed for indoor bracket-mount applications. Part of Securitron's well-regarded Magnalock series, the M38DLST ships in 630 satin stainless finish and operates on automatic 12/24 VDC dual voltage, making it compatible with a broad range of access-control power supplies. The unit measures 10-1/2 in. long × 2-1/2 in. high × 2-1/2 in. deep and is rated for operating temperatures of 32 °F to 110 °F — verified for interior-only installations.
This listing covers the bracket-mount configuration, which includes an integrated door position switch (DPS), status LED, Senstat surface-mount sensor, and anti-tamper switch — a feature set that supports real-time door status monitoring in card-access, intercom, and building-management integrations. Note: Senstat is not the same as BondSTAT; verify compatibility with your controller before ordering.
Important egress notice: An electromagnetic lock is not a standalone egress solution. It must be paired with a code-compliant latching or locking device and integrated with your fire-alarm or emergency-release system per applicable life-safety codes. A push button alone does not constitute a compliant release method.
Key Features & Benefits
- 600 lb Holding Force: Delivers robust security for single commercial doors — interior lobbies, server rooms, secured corridors, and access-controlled stairwells.
- Bracket-Mount Design: Accommodates doors where a standard surface-mount profile is not feasible; simplifies retrofit installations on aluminum storefront or offset frames.
- Automatic Dual Voltage (12/24 VDC): Auto-sensing input eliminates manual voltage configuration; draws 325 mA at 12 VDC or 175 mA at 24 VDC.
- Door Position Switch (DPS): Provides real-time open/closed status feedback to access-control panels — reduces nuisance alarms and supports audit logging.
- Senstat Sensor: Monitors bond integrity between magnet and armature; confirms the lock is actually holding, not just energized.
- Anti-Tamper Switch: Signals if the maglock body is disturbed, adding an extra layer of intrusion detection.
- Status LED: Gives installers and security staff immediate visual lock-state confirmation at the door.
- UL 10C — 1-Hour Fire Rated: Meets the positive-pressure fire-door standard for use on rated assemblies (coordinate with AHJ and door assembly rating).
- ANSI/BHMA A156.23 Grade 3 (E18501-500): Independently tested and classified electromagnetic lock.
- 630 Satin Stainless Finish: Corrosion-resistant, aesthetically neutral finish appropriate for high-traffic interior environments.
Typical Applications
- Interior access-controlled entry doors in office buildings, healthcare facilities, and educational campuses
- Server rooms, IT closets, and secure storage requiring audit-trail access control
- Retrofit bracket-mount scenarios on aluminum storefront frames
- Fire-rated door assemblies requiring electromagnetic hold-open/lock functionality with alarm integration
Technical Details
| Feature | Details |
|---|---|
| Model Number | M38DLST |
| Series | Magnalock |
| Holding Force | 600 lb |
| Mount Type | Bracket Mount |
| Voltage | Automatic 12/24 VDC |
| Current Draw | 325 mA @ 12 VDC / 175 mA @ 24 VDC |
| Body Dimensions | 10-1/2 in. L × 2-1/2 in. H × 2-1/2 in. D |
| Finish | 630 Satin Stainless |
| Operating Temperature | 32 °F to 110 °F |
| Indoor / Outdoor | Indoor only — not weatherproof |
| Included Features | Door position switch, status LED, Senstat, anti-tamper switch |
| Fire Rating | UL 10C — 1-Hour Positive Pressure |
| ANSI/BHMA Classification | A156.23 Grade 3 (E18501-500) |
| Manufacturer | Securitron |
A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release.
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, LED |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
