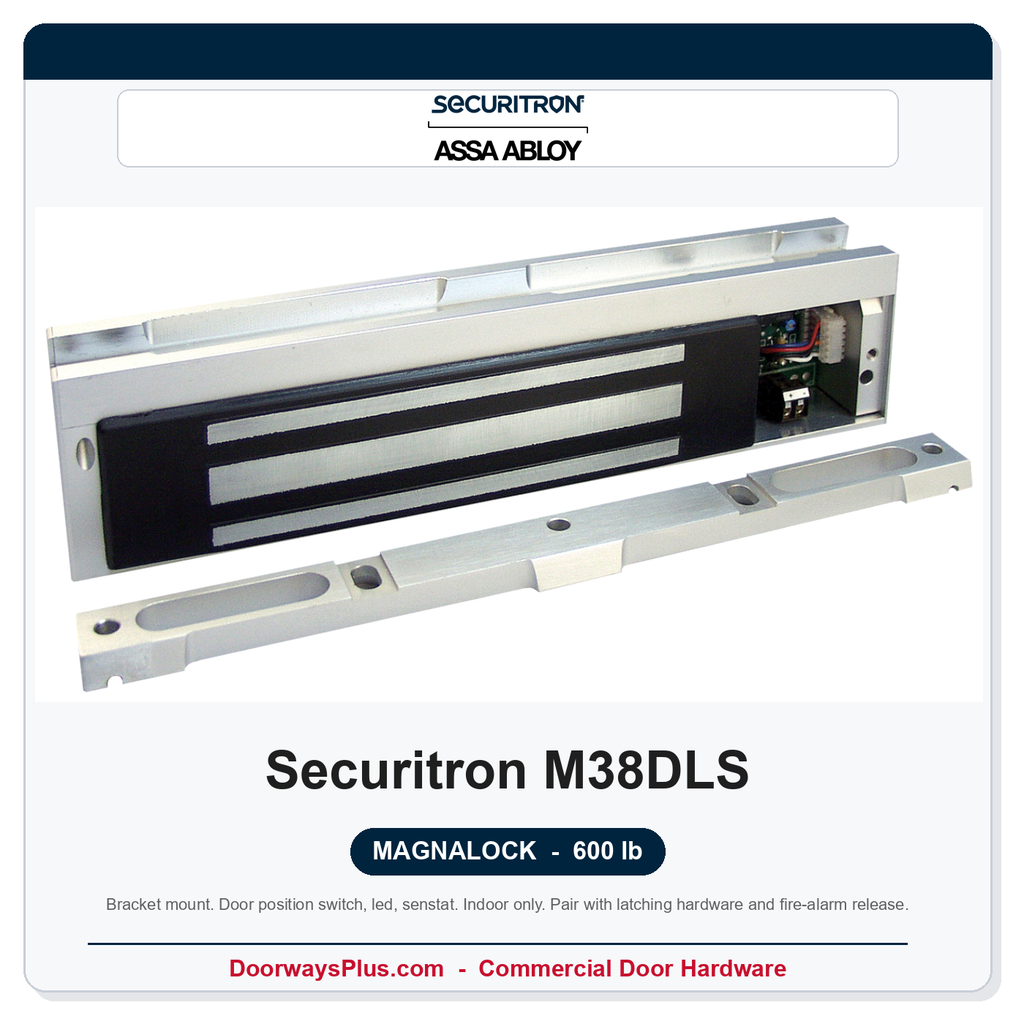

Securitron M38DLS Magnalock 600 lb | LED, Door Position Switch, Senstat

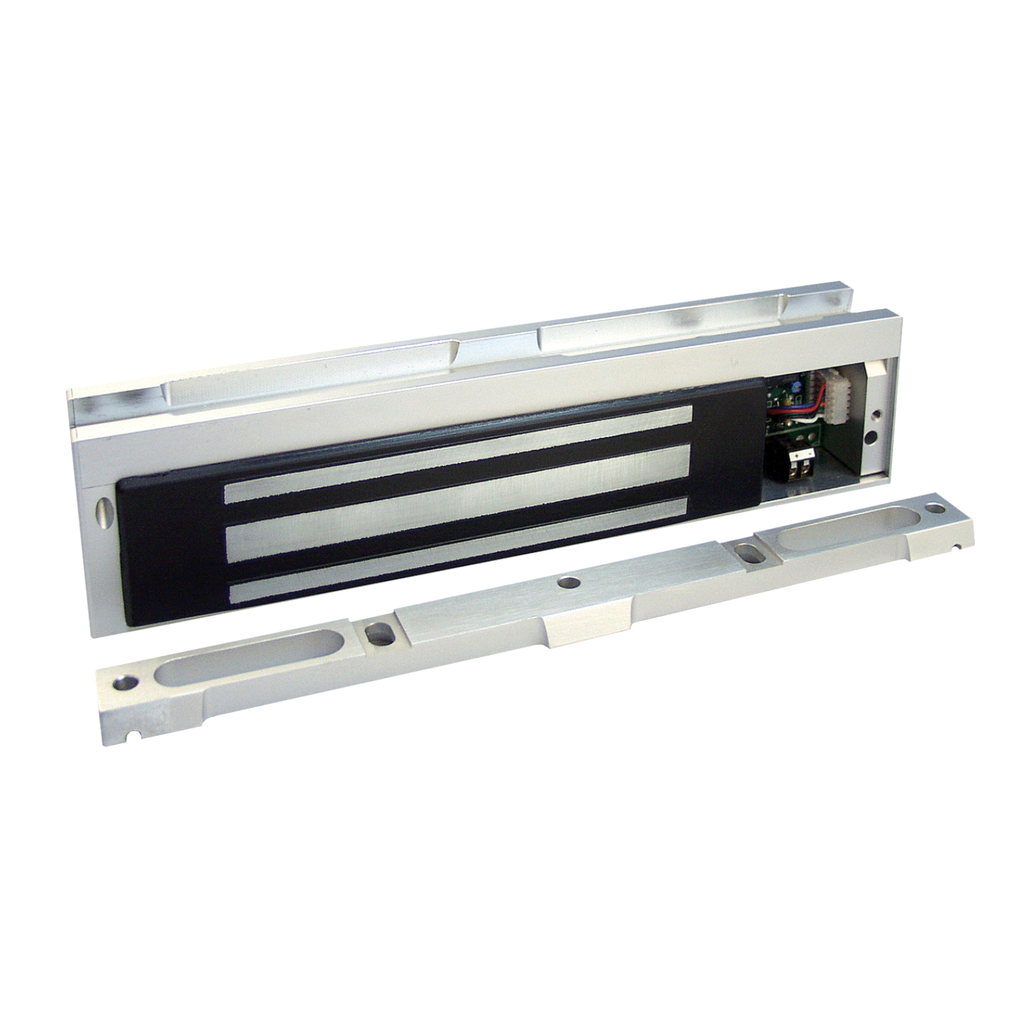

The Securitron M38DLS is a bracket-mount Magnalock electromagnetic lock rated at 600 lb holding force, designed for indoor access-control applications where a surface-mounted or offset installation is required. This listing covers the bracket-mount configuration finished in 630 satin stainless steel. The M38DLS operates on automatic 12/24 VDC, draws 325 mA at 12 VDC or 175 mA at 24 VDC, and incorporates a built-in door position switch (DPS), status LED, and Senstat bond-sensing technology — giving access-control panels real-time feedback on door status and magnet-to-armature contact. Note: Senstat is a bond-sensing function; it is not the same as BondSTAT.
Important egress compliance note: A magnetic lock is not a standalone egress solution. The M38DLS must be paired with appropriate latching hardware, a listed fire-alarm release interface, and any locally required means of egress release. A push button alone does not constitute a code-compliant sole-release method. Consult your AHJ and applicable building/fire codes before specifying.
Key Features & Benefits
- 600 lb Holding Force: Delivers robust electromagnetic holding suitable for single doors in controlled-access corridors, office suites, server rooms, and similar interior applications.
- Bracket-Mount Design: Accommodates installations where a direct in-line mount is not feasible — ideal for doors with frames that require an offset or angled mounting approach.
- Automatic 12/24 VDC: Auto-sensing power input eliminates guesswork during integration with existing access-control power supplies rated at either voltage.
- Door Position Switch (DPS): Built-in sensor reports door open/closed status to the access-control system, enabling alarm, audit-log, and held-open monitoring without a separate DPS accessory.
- Status LED: Provides at-a-glance visual confirmation of lock energization state for technicians during commissioning and service calls.
- Senstat Bond Sensing: Monitors magnet-to-armature contact quality, alerting the control panel if the door is ajar or the armature is misaligned — reducing false-secure conditions.
- UL 10C — 1-Hour Fire Rated: Listed for use on 1-hour fire-rated door assemblies when installed per UL 10C requirements.
- ANSI/BHMA A156.23 Grade 3 Compliant: Meets electromagnetic lock performance standard E18501-500.
- Indoor Use Only: Not rated for outdoor or weatherproof installations; operating range 32°F to 110°F.
- 630 Satin Stainless Finish: Corrosion-resistant finish blends with stainless architectural hardware in commercial and institutional interiors.
Typical Applications
- Interior access-controlled doors in office buildings, schools, and healthcare facilities
- Server rooms, data centers, and secure storage requiring monitored electromagnetic locking
- Stairwell and corridor doors on fire-rated assemblies (1-hour UL 10C)
- Retrofit installations where bracket-mount geometry is required by the existing frame or door condition
Technical Details
| Feature | Details |
|---|---|
| Model Number | M38DLS |
| Series | Securitron Magnalock |
| Holding Force | 600 lb |
| Mount Type | Bracket mount |
| Voltage Input | Automatic 12 VDC / 24 VDC |
| Current Draw | 325 mA at 12 VDC / 175 mA at 24 VDC |
| Body Dimensions | 10-1/2 in L × 2-1/2 in H × 2-1/2 in D |
| Integrated Features | Door position switch, status LED, Senstat bond sensing |
| Fire Rating | UL 10C — 1-hour |
| ANSI/BHMA Standard | A156.23 Grade 3 (E18501-500) |
| Operating Temperature | 32°F to 110°F |
| Finish | 630 Satin Stainless |
| Environment | Indoor use only — not weatherproof |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, LED |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
