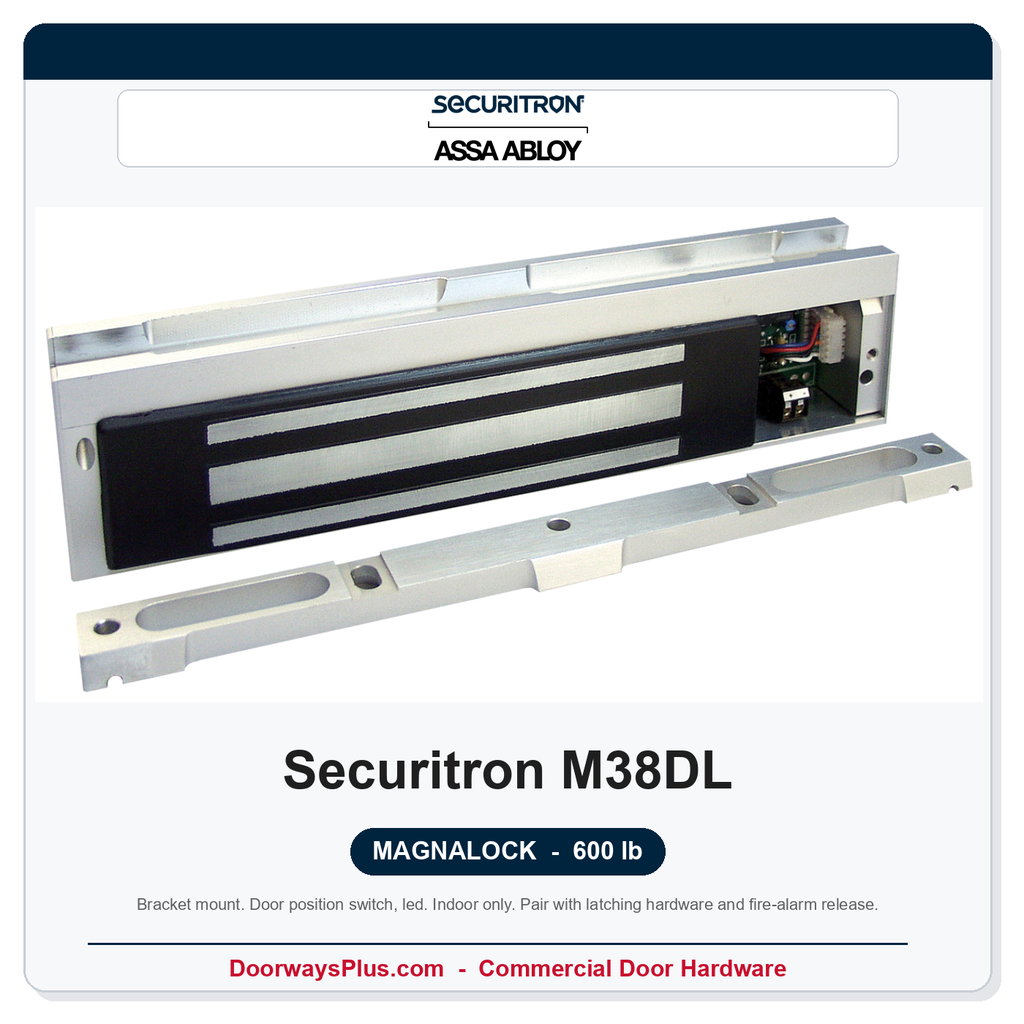

Securitron M38DL Magnalock 600 lb | LED, Door Position Switch

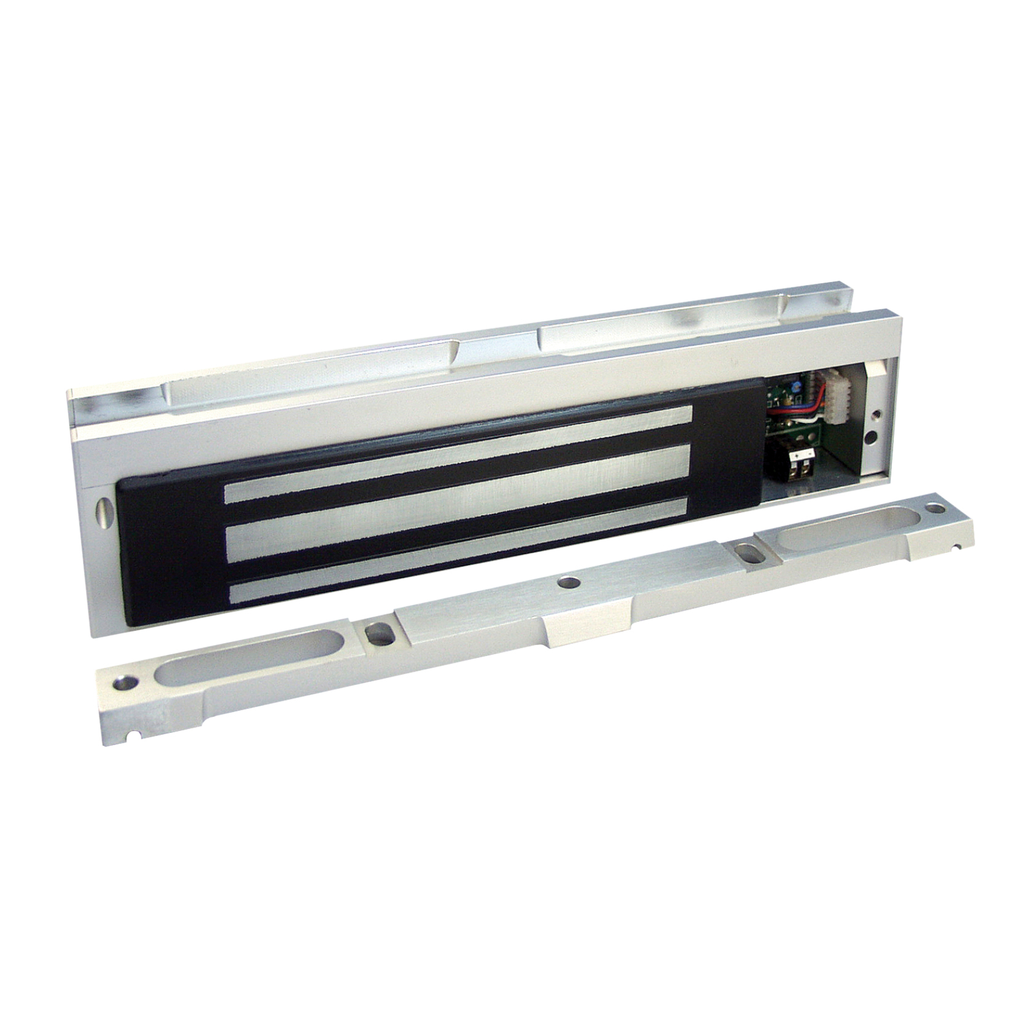

The Securitron M38DL is a bracket-mount electromagnetic lock from the Magnalock series, delivering a 600 lb holding force for commercial and institutional access control applications. Designed for indoor use only, this listing features the bracket mount configuration in a 630 satin stainless finish, making it well-suited for interior doors in office buildings, government facilities, healthcare environments, and educational institutions. The M38DL includes a built-in door position switch (Senstat) and LED indicator, providing real-time door status feedback to access control panels without requiring a separate BondSTAT sensor. Its compact body profile and dual-voltage automatic detection simplify both new installations and retrofit projects.
Key Features & Benefits
- 600 lb Holding Force: Delivers robust electromagnetic holding strength suited for high-traffic commercial interior doors.
- Bracket Mount Configuration: Factory-configured bracket mount simplifies installation on standard door frames without custom fabrication.
- Automatic 12/24 VDC Operation: Automatically detects supply voltage, drawing 325 mA at 12 VDC or 175 mA at 24 VDC — compatible with most standard access control power supplies.
- Built-In Door Position Switch (Senstat): Integrated Senstat sensor monitors door open/closed status and reports to the access control system. Note: Senstat is not the same as BondSTAT and does not monitor bond strength.
- LED Status Indicator: On-board LED provides immediate visual confirmation of lock status at the door.
- UL 10C Listed – 1 Hour Fire Rating: Rated for use on 1-hour fire-rated door assemblies per UL 10C, supporting code-compliant installations.
- ANSI/BHMA A156.23 Grade 3 Certified: Certified to ANSI/BHMA A156.23 (E18501-500), the recognized performance standard for electromagnetic locks.
- 630 Satin Stainless Finish: Corrosion-resistant finish coordinates with contemporary commercial door hardware.
- Wide Operating Temperature Range: Rated for environments from 32°F to 110°F, covering typical interior commercial conditions.
Important Installation & Egress Compliance Notes
A magnetic lock is not a complete egress solution on its own. It must be paired with latching hardware and an approved fire-alarm release to meet applicable life safety and building codes. A standalone push button does not constitute a sole means of egress release. Always consult local AHJ (Authority Having Jurisdiction) and applicable codes (NFPA 101, IBC) when specifying electromagnetic locks on egress paths. This product is rated for indoor use only — no weatherproof or outdoor rating applies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M38DL |
| Series | Magnalock |
| Manufacturer | Securitron |
| Mount Type | Bracket Mount |
| Holding Force | 600 lb |
| Voltage | Automatic 12/24 VDC |
| Current Draw | 325 mA at 12 VDC / 175 mA at 24 VDC |
| Body Dimensions | 10-1/2 in L × 2-1/2 in H × 2-1/2 in D |
| Finish | 630 Satin Stainless |
| Door Position Switch | Yes – Senstat (not BondSTAT) |
| LED Indicator | Yes |
| Fire Rating | UL 10C – 1 Hour |
| ANSI/BHMA Standard | A156.23 Grade 3 (E18501-500) |
| Operating Temperature | 32°F to 110°F |
| Indoor / Outdoor | Indoor Only |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, LED |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
