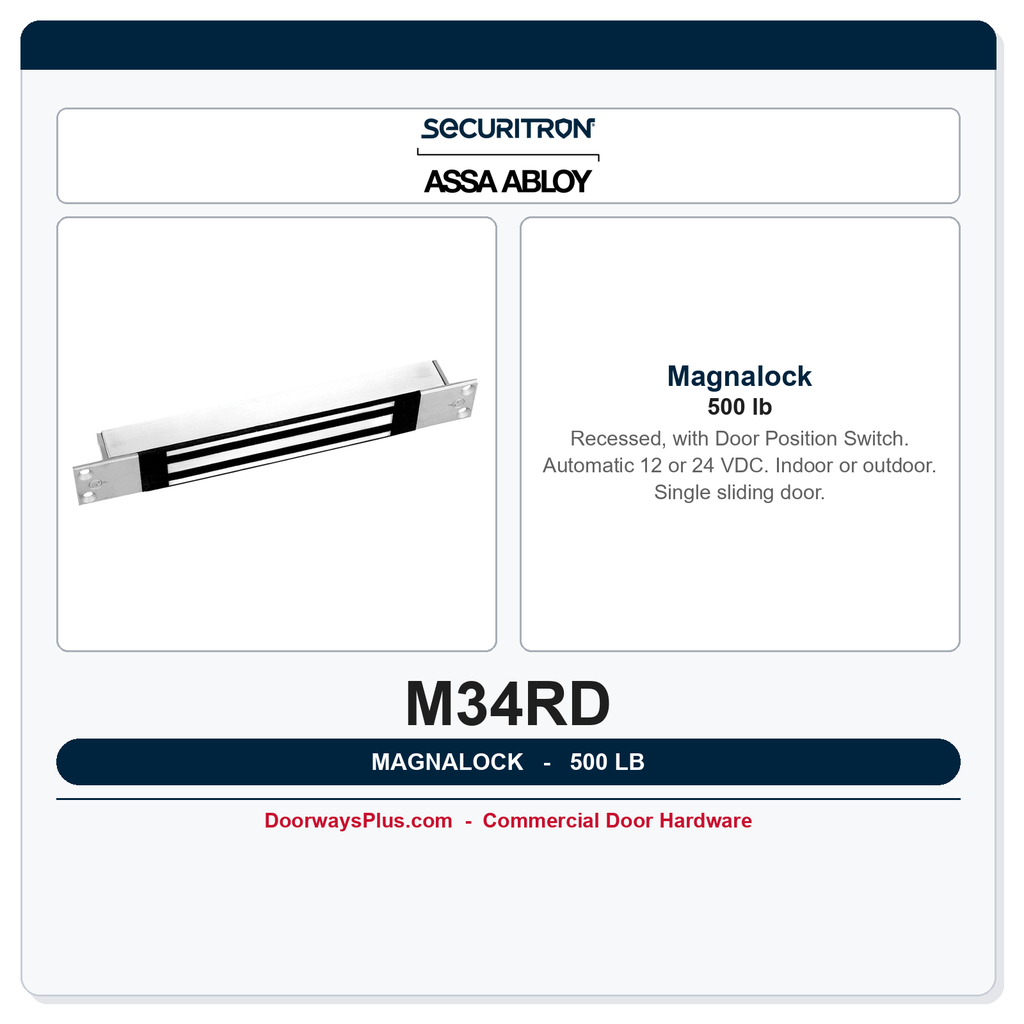

Securitron M34RD Recessed Magnalock — 500 lb Holding Force for Sliding Doors with Door Position Switch
**** Lead Time: 1-3 Weeks ****

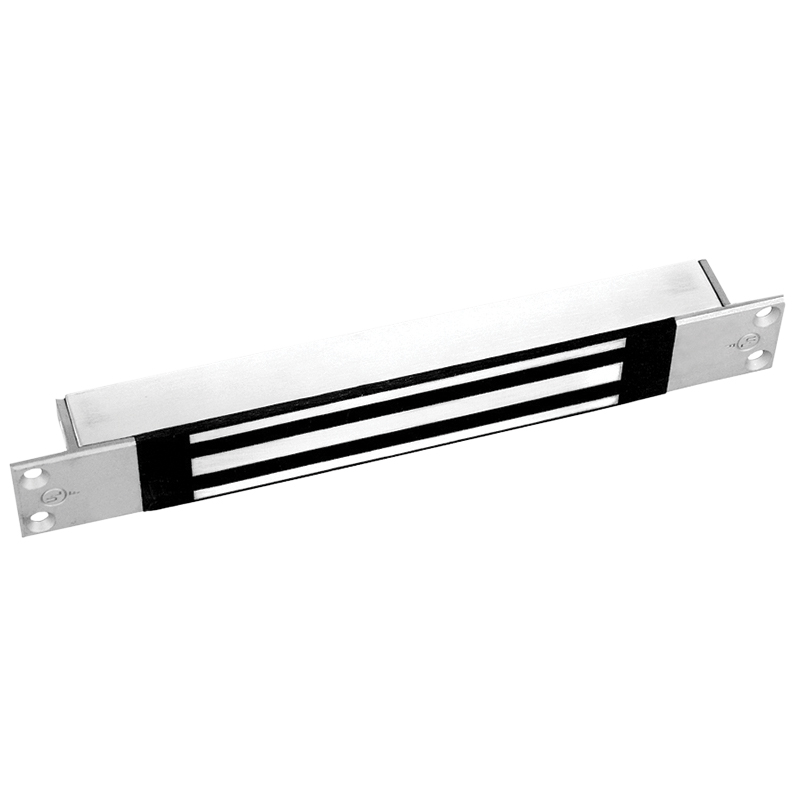

The Securitron M34RD is a recessed electromagnetic lock engineered specifically for single sliding doors, delivering a robust 500 lb holding force in a low-profile housing that mounts flush within the door or frame. A fully integrated door position switch (DPS) provides real-time door status monitoring — a critical feature for access control, alarm integration, and audit-log compliance. Suitable for indoor or outdoor applications, the M34RD is a UL 10C listed and UL 294 recognized component electromagnetic lock built to meet the demands of commercial access control installations.
Key Features & Benefits
- Recessed Low-Profile Design: The compact body — 10-1/2 in long, 1-1/8 in high, 1-1/2 in deep — mounts recessed, keeping hardware protected and aesthetically clean on sliding door applications where surface-mount maglocks are not viable.
- 500 lb Electromagnetic Holding Force: Provides commercial-grade security for controlled sliding door openings, meeting typical specification requirements for electromagnetic locks in access-controlled environments.
- Integrated Door Position Switch: Built-in DPS monitors door open/closed status in real-time, enabling supervisory feedback to access control panels, alarm systems, or building management systems without a separate sensor.
- Automatic 12/24 VDC Operation: Auto-sensing input accepts 12 VDC at 320 mA or 24 VDC at 170 mA, simplifying integration with virtually any commercial power supply or access control system — no manual voltage switching required.
- UL 10C Listed: Rated for use on positive-pressure fire door assemblies where required by code. Listed exactly as: UL 10C listed. UL 294 recognized component.
- Indoor or Outdoor Suitability: Engineered for use in both indoor and outdoor environments, broadening application scope across covered entryways, secure enclosures, and interior controlled areas.
Important Installation & Egress Notes
An electromagnetic lock is not a complete egress solution on its own. The M34RD must be paired with appropriate latching hardware and a fire-alarm release system in accordance with applicable codes. A standalone push button alone does not constitute a compliant sole-release mechanism. Always consult local building and fire codes and coordinate with your access control integrator to ensure a fully code-compliant installation. Do not use lithium or NiMH batteries with AQD or AQS power supplies in this application.
Applications
- Single sliding doors in commercial office, healthcare, and institutional facilities
- Access-controlled sliding doors requiring door position monitoring
- Indoor or outdoor secured entry points on sliding door hardware systems
- ADA-compliant sliding door hardware configurations requiring electromagnetic locking
- Integration with card readers, keypads, and building access control systems
Technical Details
| Feature | Details |
|---|---|
| Model Number | M34RD |
| Brand / Manufacturer | Securitron |
| Series | Magnalock |
| Holding Force | 500 lb |
| Door Type | Single Sliding Door |
| Mount Type | Recessed |
| Door Position Switch | Included (integrated) |
| Body Dimensions | 10-1/2 in L × 1-1/8 in H × 1-1/2 in D |
| Input Voltage | Automatic 12/24 VDC |
| Current Draw | 320 mA at 12 VDC / 170 mA at 24 VDC |
| Environment | Indoor or Outdoor |
| UL Listing | UL 10C listed. UL 294 recognized component. |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 500 lbs. |
