Securitron M34RBD Magnalock 500 lb | Recessed, with BondSTAT and Door Position Switch
Securitron M34RBD Magnalock, 500 lb Holding Force. Recessed, with BondSTAT and Door Position Switch. Indoor or Outdoor. Automatic 12/24 VDC. Requires Latching Hardware and Fire-Alarm Release.
**** Lead Time: 1-3 Weeks ****

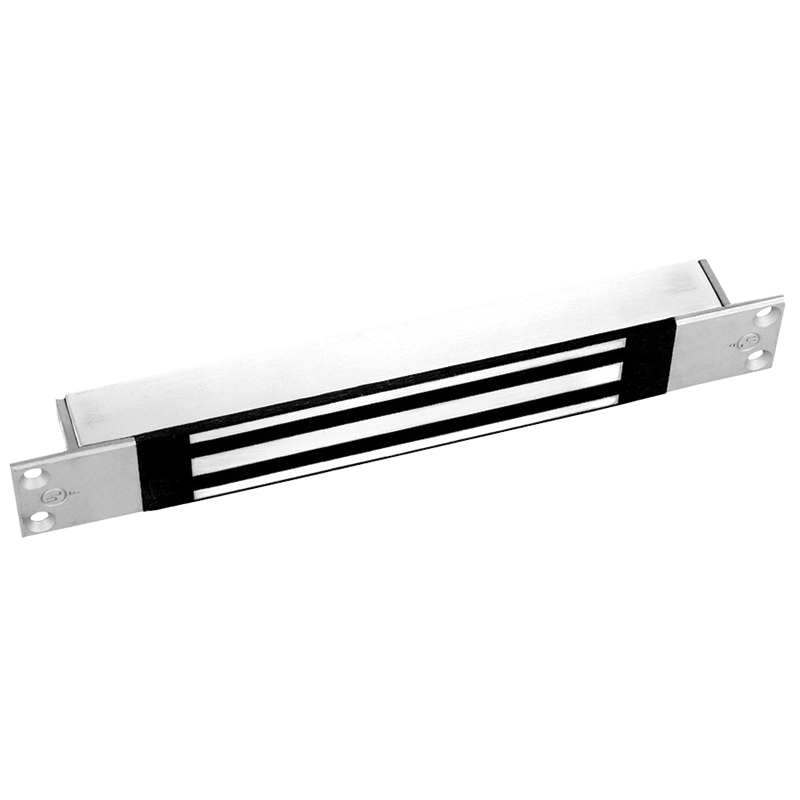

Securitron M34RBD Recessed Magnalock — 500 lb Electromagnetic Lock for Sliding Doors with BondSTAT and Door Position Switch
**** Lead Time: 1-3 Weeks ****
The Securitron M34RBD is a recessed electromagnetic lock (maglock) engineered specifically for single sliding door applications. Delivering a robust 500 lb holding force, this compact, low-profile unit installs flush within the door or frame pocket, keeping hardware out of the traffic path while maintaining high-security access control integrity. The M34RBD integrates two critical diagnostic features — the BondSTAT bond sensor and a built-in door position switch — giving access control systems real-time feedback on both magnetic bond status and door open/closed state from a single device.
Suitable for indoor or outdoor installations, the M34RBD operates on automatic 12/24 VDC dual voltage, drawing 320 mA at 12 VDC or 170 mA at 24 VDC, making it compatible with a wide range of power supplies and access control panels.
Important egress notice: An electromagnetic lock is not a complete egress solution on its own. The M34RBD must be used in conjunction with appropriate latching hardware and a fire-alarm release interface to meet life-safety code requirements. A standalone push button does not constitute a sole means of egress release. Consult applicable local codes and your authority having jurisdiction (AHJ) when specifying this product.
Key Features & Benefits
- Recessed Form Factor: Low-profile body (10-1/2 in long × 1-1/8 in high × 1-1/2 in deep) mounts flush, ideal for sliding doors where surface-mount maglocks would interfere with door travel.
- 500 lb Holding Force: Commercial-grade magnetic holding strength suitable for controlled-access sliding doors in healthcare, education, commercial office, and government facilities.
- BondSTAT Bond Sensor: Continuously monitors the magnetic bond between the lock body and armature plate, reporting bond status to the access control panel for real-time verification and alarm integration.
- Door Position Switch: Provides a discrete signal indicating whether the door is open or closed, enabling smarter access control programming, alarm monitoring, and audit trail accuracy — all without a separate door position sensor device.
- Automatic 12/24 VDC Operation: Auto-sensing dual-voltage input simplifies installation and reduces the need to specify separate models for different power supply voltages.
- Indoor or Outdoor Rated: Suitable for indoor and outdoor applications, expanding deployment flexibility across building types and climates.
- UL Listed / Recognized: UL 10C listed. UL 294 recognized component, supporting fire-rated door and access control system compliance documentation.
Typical Applications
- Sliding doors in healthcare corridors, patient rooms, and clean-room environments
- Retail storefront and commercial office sliding entry doors
- Government and institutional access control with monitored egress
- Any sliding door application requiring flush hardware and dual-status monitoring
Technical Details
| Feature | Details |
|---|---|
| Model Number | M34RBD |
| Brand / Manufacturer | Securitron |
| Series | Magnalock |
| Lock Type | Recessed Electromagnetic Lock (Maglock) |
| Door Application | Single sliding door |
| Holding Force | 500 lb |
| Body Dimensions | 10-1/2 in long × 1-1/8 in high × 1-1/2 in deep |
| Input Voltage | Automatic 12/24 VDC |
| Current Draw | 320 mA at 12 VDC / 170 mA at 24 VDC |
| Monitoring Features | BondSTAT bond sensor, door position switch |
| Environment | Indoor or outdoor |
| Listings / Standards | UL 10C listed; UL 294 recognized component |
A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. Do not use lithium or NiMH batteries with AQD or AQS power supplies.
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 500 lbs. |
