Securitron M34RB Recessed Magnalock — 500 lb Holding Force for Sliding Doors with BondSTAT

**** Lead Time: 1-3 Weeks ****

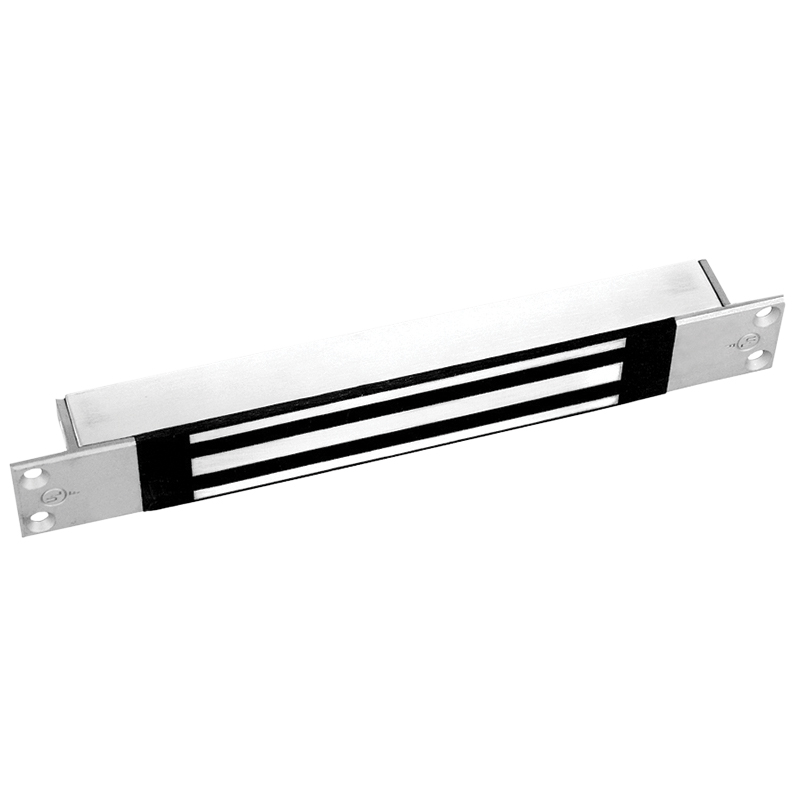

The Securitron M34RB is a recessed electromagnetic lock (maglock) engineered specifically for single sliding door applications. Delivering 500 lb of holding force, this unit features a low-profile recessed body measuring just 10-1/2 in long × 1-1/8 in high × 1-1/2 in deep — ideal where flush mounting is required to protect the lock body and maintain a clean door appearance. The M34RB includes Securitron's BondSTAT bond sensor, which continuously monitors the magnetic bond and provides a status output to confirm the door is actually held secure, supporting access control system integration and door status monitoring.

Suitable for indoor and outdoor sliding door installations, the M34RB operates on automatic 12/24 VDC power, drawing 320 mA at 12 VDC or 170 mA at 24 VDC — making it compatible with a wide range of access control power supplies and panels without manual voltage selection.

Important compliance note: A maglock is not a complete egress solution on its own. It must be paired with appropriate latching hardware and a fire-alarm release to meet egress code requirements. A standalone push button is not an acceptable sole means of release. Consult applicable local codes, NFPA 101, and AHJ requirements when designing your egress path.

Key Features & Benefits

• 500 lb Holding Force: Provides robust security for sliding door applications in commercial, institutional, and controlled-access environments.
• Recessed Body Design: Compact 10-1/2 in × 1-1/8 in × 1-1/2 in profile mounts flush within the door or frame, reducing exposure and protecting hardware from impact.
• BondSTAT Bond Sensor: Integrated sensor outputs real-time bond status to your access control system, enabling door position monitoring and alarm integration without additional hardware.
• Automatic 12/24 VDC Operation: Auto-sensing dual voltage eliminates manual configuration and simplifies compatibility with existing power infrastructure.
• UL 10C Listed: Meets the standard for positive pressure fire tests of door assemblies, supporting fire-rated door applications where required.
• UL 294 Recognized Component: Recognized for use in access control system installations per UL 294 component requirements.
• Indoor and Outdoor Rated: Suitable for both interior and exterior sliding door applications.

Typical Applications

• Commercial and institutional sliding doors requiring controlled access
• Healthcare facility sliding corridor and suite doors
• Government and secure-access sliding door openings
• Retail and hospitality sliding entrance doors with access control integration
• Any sliding door opening where a low-profile, recessed maglock is specified

System Design Guidance

Pair the M34RB with a compatible access control power supply. Do not use lithium or NiMH batteries with AQD or AQS power supplies in this application. Always integrate fire-alarm release per local code. Verify egress hardware complies with NFPA 101 and local AHJ requirements before installation.
