Securitron M34R Recessed Magnalock — 500 lb Holding Force for Single Sliding Doors

**** Lead Time: 1-3 Weeks ****

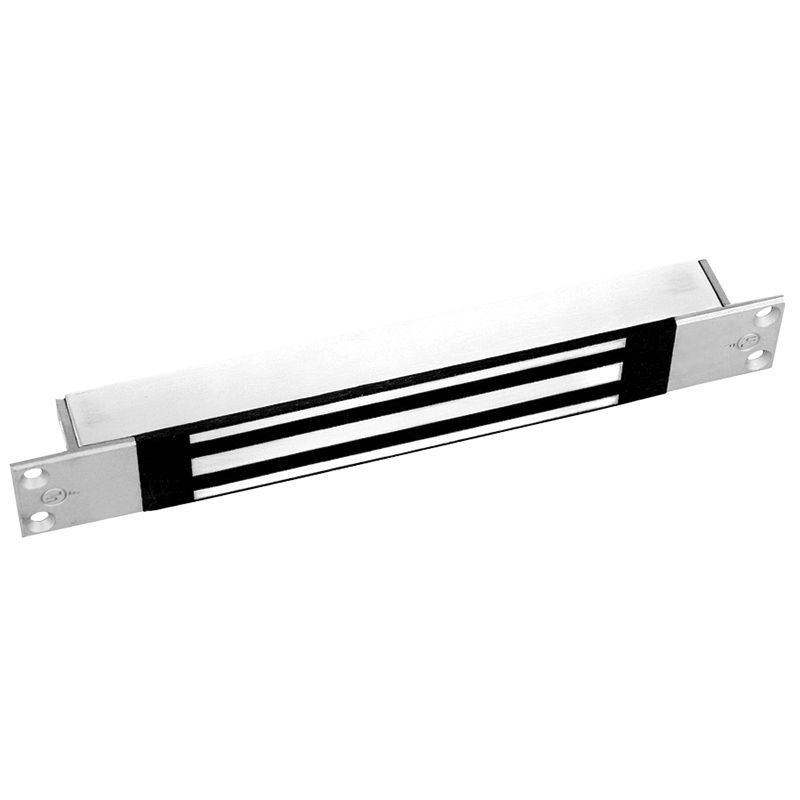

The Securitron M34R is a recessed electromagnetic lock (maglock) engineered specifically for single sliding doors. With a 500 lb holding force and a low-profile recessed body measuring just 10-1/2 in long × 1-1/8 in high × 1-1/2 in deep, the M34R delivers robust access control without protruding into the door opening. This model ships without a bond sensor or door position switch, making it a clean, straightforward maglock solution where those monitoring functions are not required. UL 10C listed. UL 294 recognized component.

Important egress notice: A maglock is not a complete egress solution. It must be paired with appropriate latching hardware and a fire-alarm release system. A standalone push button does not qualify as the sole means of release.

Key Features & Benefits

• Recessed Low-Profile Body: The 10-1/2 in × 1-1/8 in × 1-1/2 in recessed housing integrates cleanly into sliding door frames, minimizing visual impact and eliminating door-clearance concerns.
• 500 lb Holding Force: Provides reliable electromagnetic holding strength suited to commercial sliding door applications where security and controlled access are required.
• Automatic 12/24 VDC Dual-Voltage Operation: Automatically selects between 12 VDC (320 mA) and 24 VDC (170 mA), simplifying integration with a wide range of access control power supplies.
• No Bond Sensor / No Door Position Switch: Streamlined configuration for installations where monitoring outputs are managed by the broader access control system rather than at the lock itself.
• UL Listings: UL 10C listed for use on fire-rated openings; UL 294 recognized component for access control systems.
• Indoor or Outdoor Rated: Suitable for indoor or outdoor installations — consult your project requirements to confirm appropriate environmental suitability.

Typical Applications

• Commercial sliding doors in office buildings, healthcare facilities, and retail environments
• Access-controlled entry points where a recessed maglock profile is architecturally preferred
• Integrated fire-alarm release and access control systems requiring a UL 10C listed electromagnetic lock
• Locations where bond sensing and door position monitoring are handled externally

System Integration Notes

The M34R is designed to work within a complete access control ecosystem. Always provide a listed fire-alarm release interface. Do not use lithium or NiMH batteries with AQD or AQS power supplies in the supporting power infrastructure.
