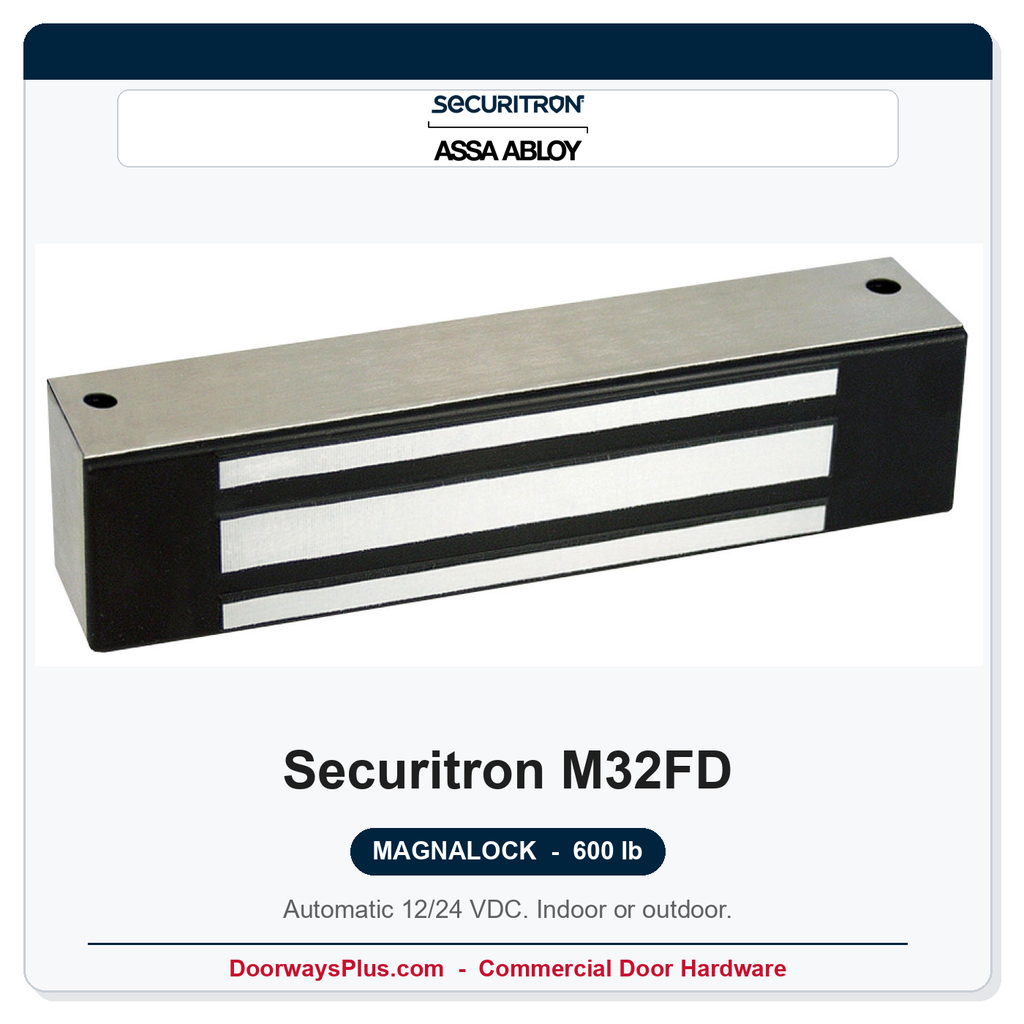

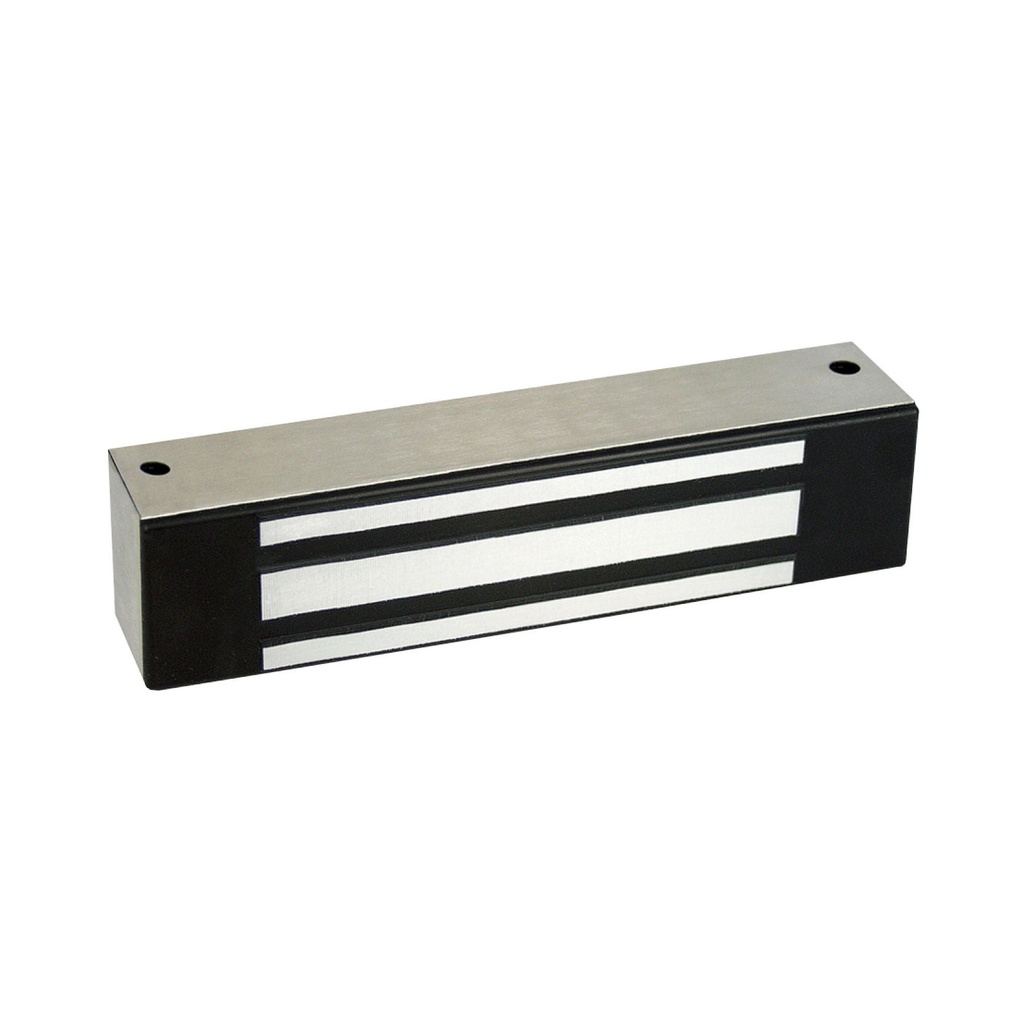

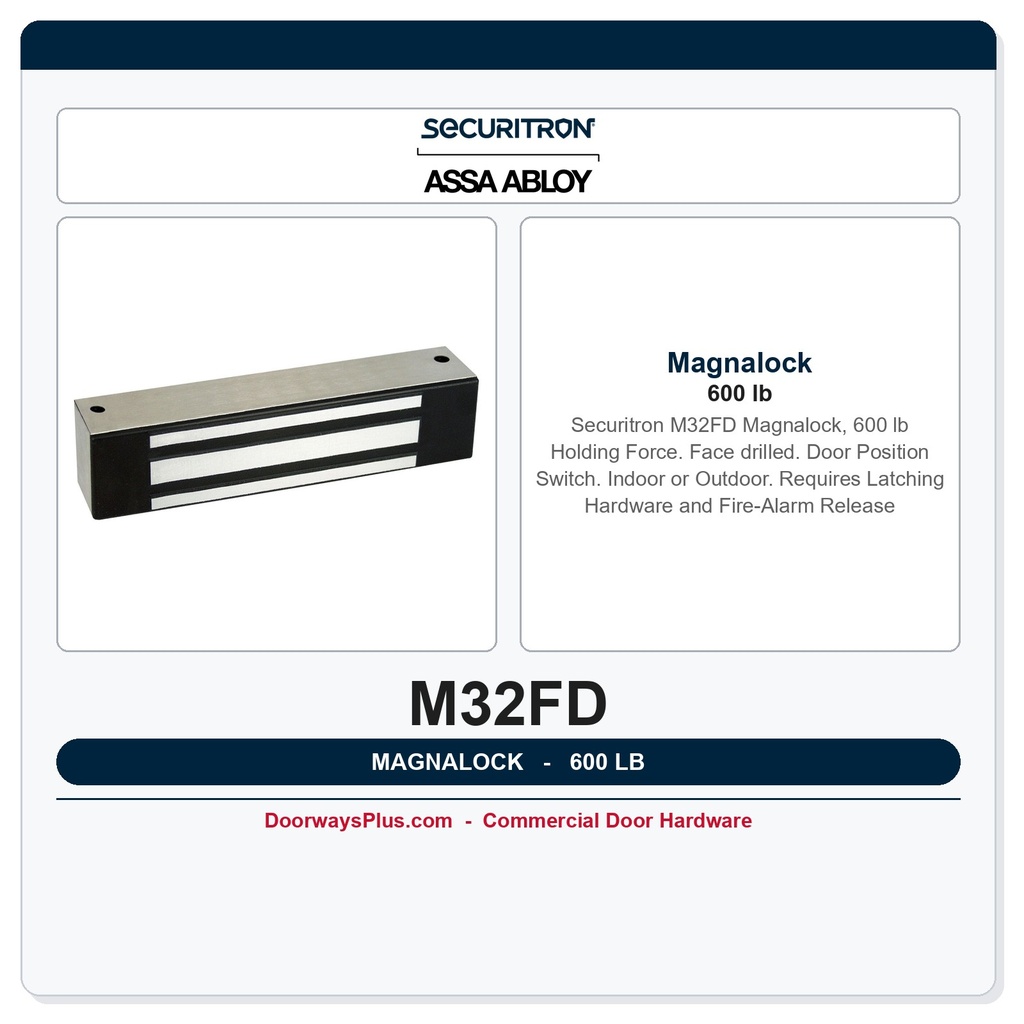

Securitron M32FD Magnalock – 600 lb Electromagnetic Lock, Face Drilled with Door Position Switch (630 Satin Stainless)
The Securitron M32FD Magnalock is a commercial-grade, 600 lb (272 kg) holding-force electromagnetic lock designed for access-controlled openings that demand reliable, high-cycle performance. This listing is the face-drilled configuration with an integrated door position switch — giving installers a built-in monitor point for door status without adding a separate sensor. Finished in 630 Satin Stainless (US32D), the M32FD suits both interior and exterior applications and is manufactured at Securitron's Phoenix, Arizona factory.
Key Features & Benefits
- 600 lb (272 kg) Holding Force: Engineered for demanding commercial and institutional openings requiring strong, consistent electromagnetic hold.
- Automatic 12/24 VDC Operation: Accepts 300 mA at 12 VDC or 150 mA at 24 VDC with no field voltage adjustment required — simplifying installation and integration with existing power supplies.
- Integrated Door Position Switch: Built-in monitoring eliminates the need for a separate switch, reducing hardware count and installation time.
- Instant Release, No Residual Magnetism: Power interruption produces immediate, clean release with no magnetic lag — critical for life-safety egress performance.
- Fully Sealed Enclosure: Rated for indoor and outdoor use; operating range of −40 °F to 140 °F makes this lock suitable for harsh environments, covered entryways, and parking structures.
- Built-in MOV: Metal oxide varistor protects against voltage transients, extending lock longevity and protecting connected control systems.
- Collapsing Blind Nuts: Secure, vibration-resistant mounting without exposed fasteners on the secured side.
- PoE Friendly: Compatible with Power over Ethernet access control architectures for streamlined wiring.
- 10 ft Jacketed Cable: Pre-wired lead simplifies rough-in and connection to access control panels.
- MagnaCare Lifetime Replacement: Securitron's lifetime replacement program provides long-term ownership assurance.
- UL 10C 3-Hour Fire Door Listed: Approved for use on fire-rated door assemblies requiring electromagnetic hold-open or hold-secure function.
Important Egress & Installation Notes
A maglock is not a complete egress solution on its own. It must be paired with appropriate latching hardware and a fire-alarm release interface. A standalone push button does not constitute an acceptable sole means of egress release under most codes. Consult applicable local codes and AHJ requirements. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately if required. Do not use lithium or NiMH batteries with AQD or AQS power supplies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M32FD |
| Series | Magnalock |
| Holding Force | 600 lb (272 kg) |
| Configuration | Face Drilled with Integrated Door Position Switch |
| Voltage / Current | 300 mA @ 12 VDC; 150 mA @ 24 VDC; automatic 12/24 VDC |
| Body Dimensions | 8 in L × 1-5/8 in H × 1-7/8 in D |
| Finish | 630 Satin Stainless (US32D) |
| Environment | Indoor or Outdoor; Fully Sealed |
| Operating Temperature | −40 °F to 140 °F |
| Lead Wire | 10 ft Jacketed Cable |
| Mounting | Collapsing Blind Nuts |
| Fire Rating | UL 10C 3-Hour |
| Standards | ANSI/BHMA A156.23 Grade 3 (E08501-500); CAN4-S104; CAN/ULC-S533; ANSI/UL 294; CSA C22.2 No.205; CSFM; CE |
| Warranty | MagnaCare Lifetime Replacement |
| Country of Manufacture | USA (Phoenix, AZ) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
