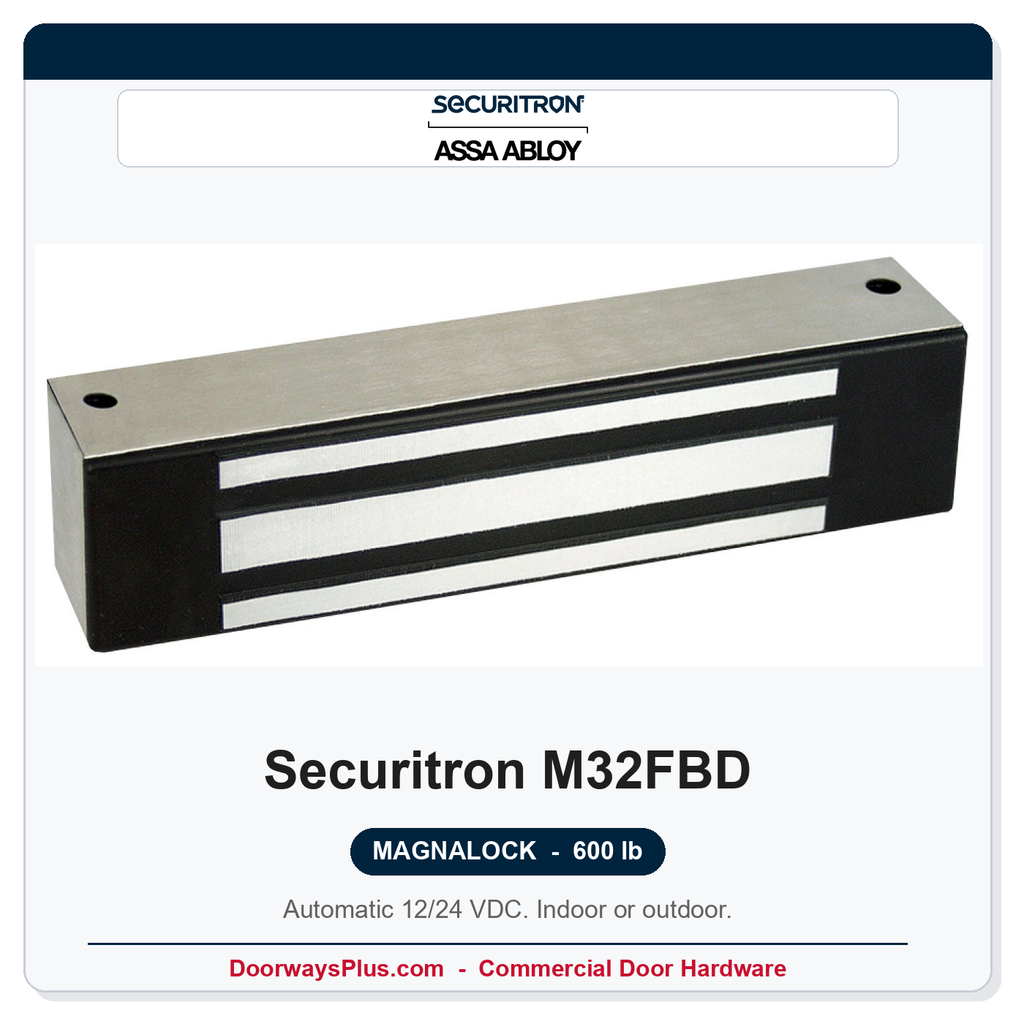

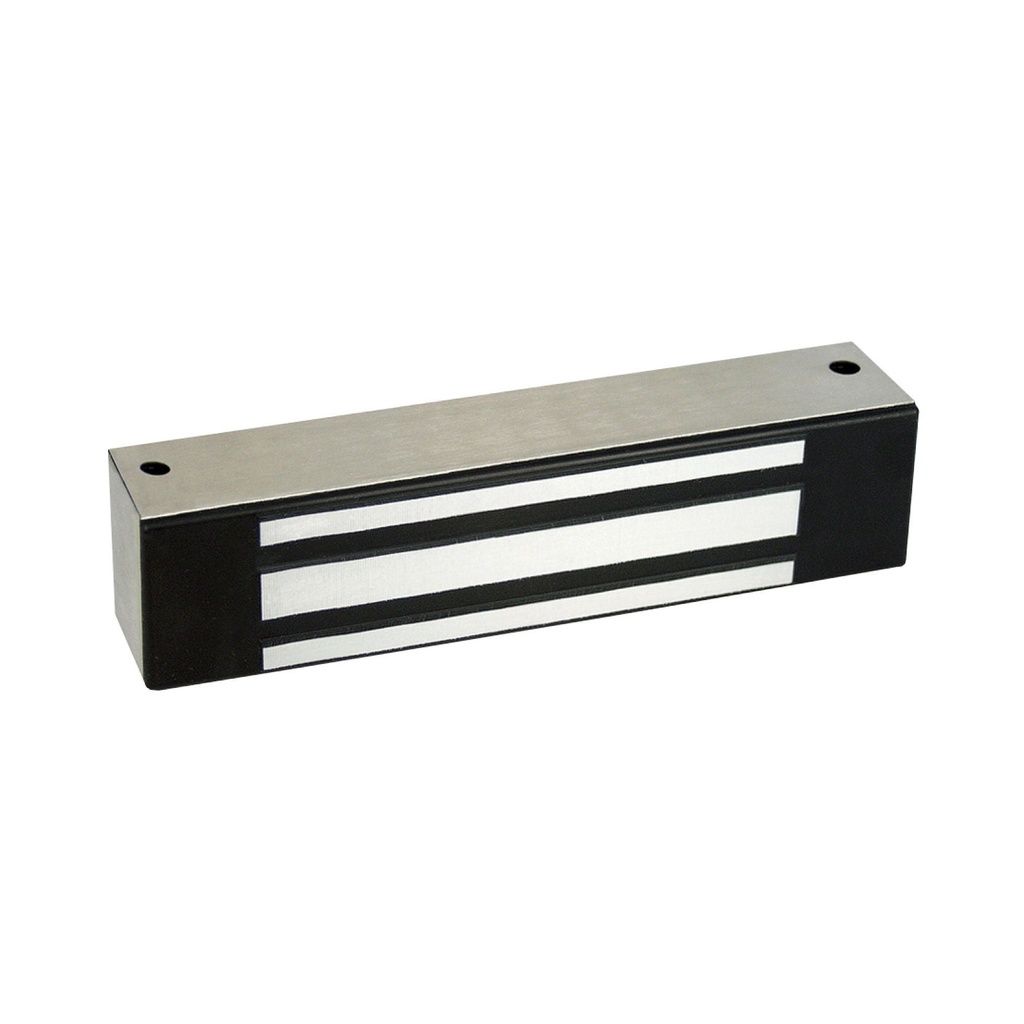

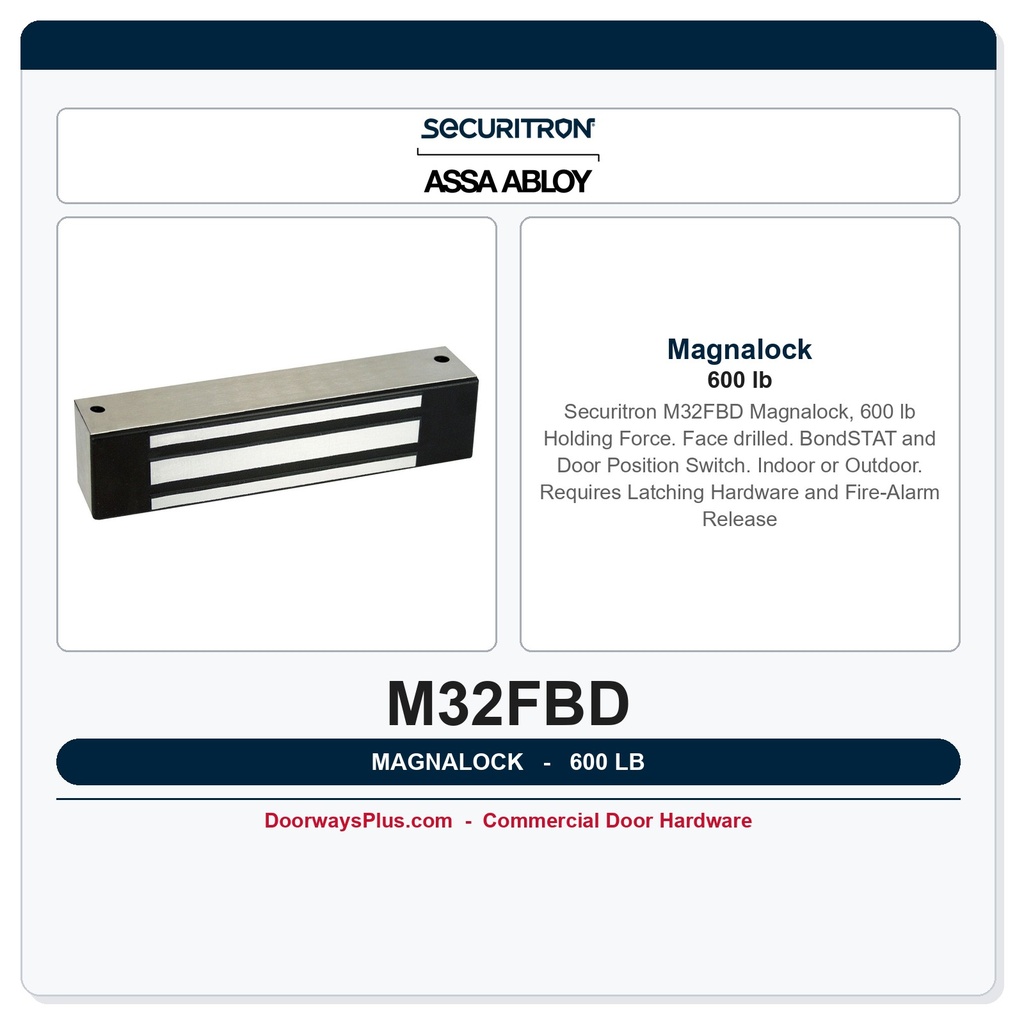

Securitron M32FBD Magnalock — 600 lb Electromagnetic Lock, Face Drilled, Satin Stainless (630)
The Securitron M32FBD Magnalock is a heavy-duty, 600 lb (272 kg) holding-force electromagnetic lock designed for commercial and institutional access-control applications. This listing is the face-drilled configuration, finished in 630 Satin Stainless (US32D), and ships complete with an integrated BondSTAT bond sensor and door position switch — eliminating the need for a separate door-status sensor in most installations. Manufactured at Securitron's Phoenix factory, the M32FBD is rated for indoor and outdoor use and carries a MagnaCare lifetime replacement warranty.
Key Features & Benefits
- 600 lb Holding Force: Delivers 600 lb (272 kg) of electromagnetic holding force — suitable for single commercial doors in high-traffic or secured-access environments.
- BondSTAT Bond Sensor + Door Position Switch: Integrated dual-status monitoring confirms both magnetic bond integrity and physical door position from a single device, simplifying wiring and reducing panel I/O requirements.
- Automatic 12/24 VDC Operation: Accepts 12 VDC (300 mA) or 24 VDC (150 mA) with automatic voltage detection — no field voltage adjustment needed, reducing commissioning time.
- PoE-Friendly Power Draw: Low current consumption is compatible with Power-over-Ethernet access control panels and PoE-based power supplies in modern IP-based systems.
- Instant Release, No Residual Magnetism: Releases immediately upon power interruption with zero magnetic residue, supporting fast, reliable egress.
- Built-In MOV: Metal oxide varistor provides onboard transient-voltage suppression, protecting both the lock and connected control equipment.
- Fully Sealed Construction: Rated for operation from -40°F to 140°F and fully sealed against moisture — suitable for exterior doors and harsh environments.
- Collapsing Blind Nuts: Simplify header or frame mounting with blind-nut fasteners that accommodate varying material thicknesses.
- 10 ft Jacketed Lead Cable: Pre-attached 10-foot jacketed cable provides installation flexibility without field splicing at the lock body.
- UL 10C 3-Hour Fire Rated: Listed for use on 3-hour fire-rated door assemblies when properly integrated with fire-alarm release hardware.
Compliance & Listings
The Securitron M32FBD carries a comprehensive set of certifications supporting specification on public, institutional, and regulated facilities projects: UL 10C (3-hour fire door), ANSI/BHMA A156.23 Grade 3 (E08501-500), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, and CE.
Important Installation & Egress Notes
An electromagnetic lock is not a complete egress solution on its own. It must be paired with appropriate latching hardware and a fire-alarm release interface per local code. A standalone push button does not constitute a sole means of egress release. Consult AHJ requirements before specifying. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately as required. Do not use lithium or NiMH batteries with AQD or AQS power supplies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M32FBD |
| Series | Securitron Magnalock |
| Holding Force | 600 lb (272 kg) |
| Configuration | Face Drilled |
| Integrated Features | BondSTAT Bond Sensor, Door Position Switch |
| Voltage | 12 VDC (300 mA) / 24 VDC (150 mA), auto-sensing |
| Body Dimensions | 8 in L × 1-5/8 in H × 1-7/8 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Temperature | -40°F to 140°F |
| Lead Cable | 10 ft jacketed |
| Fire Rating | UL 10C, 3-hour |
| ANSI/BHMA | A156.23 Grade 3 (E08501-500) |
| Additional Listings | ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, CE |
| Warranty | MagnaCare Lifetime Replacement |
| Origin | Made in USA (Phoenix, AZ) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
