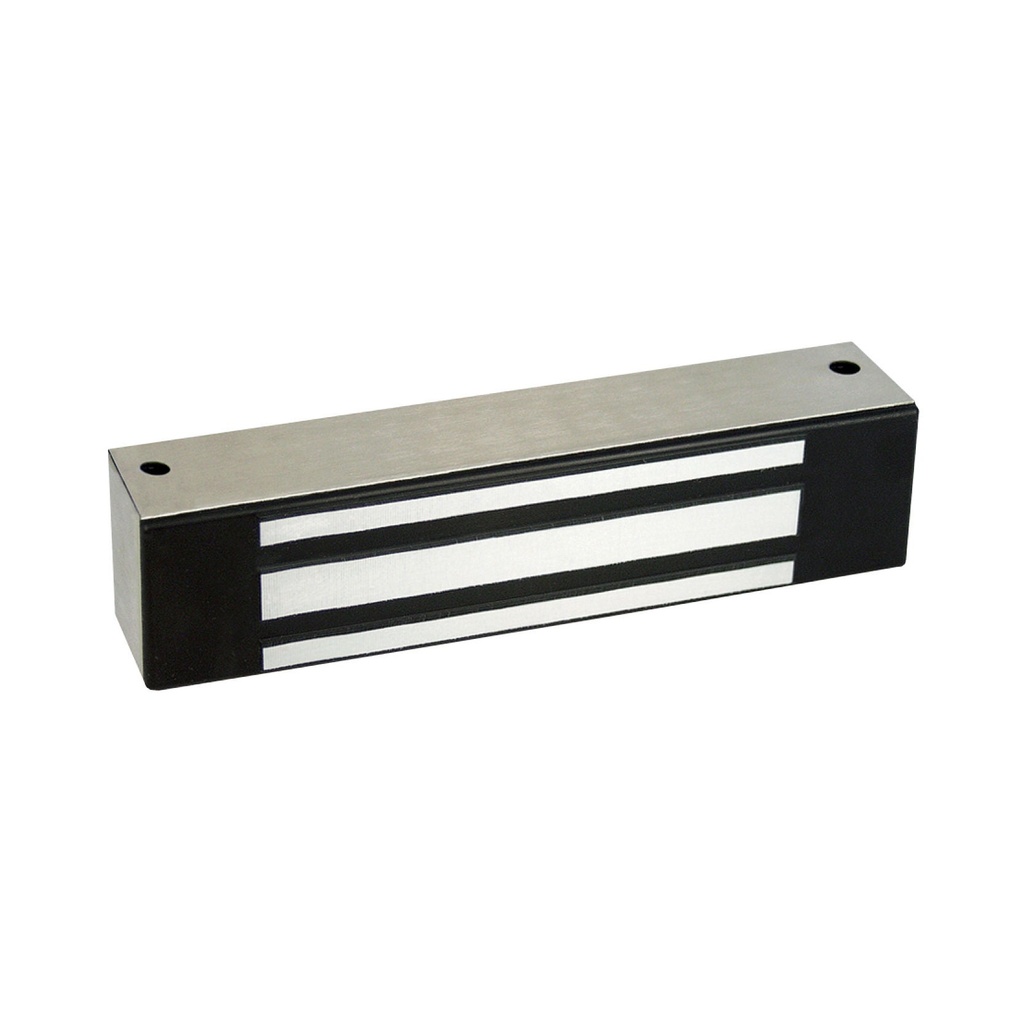

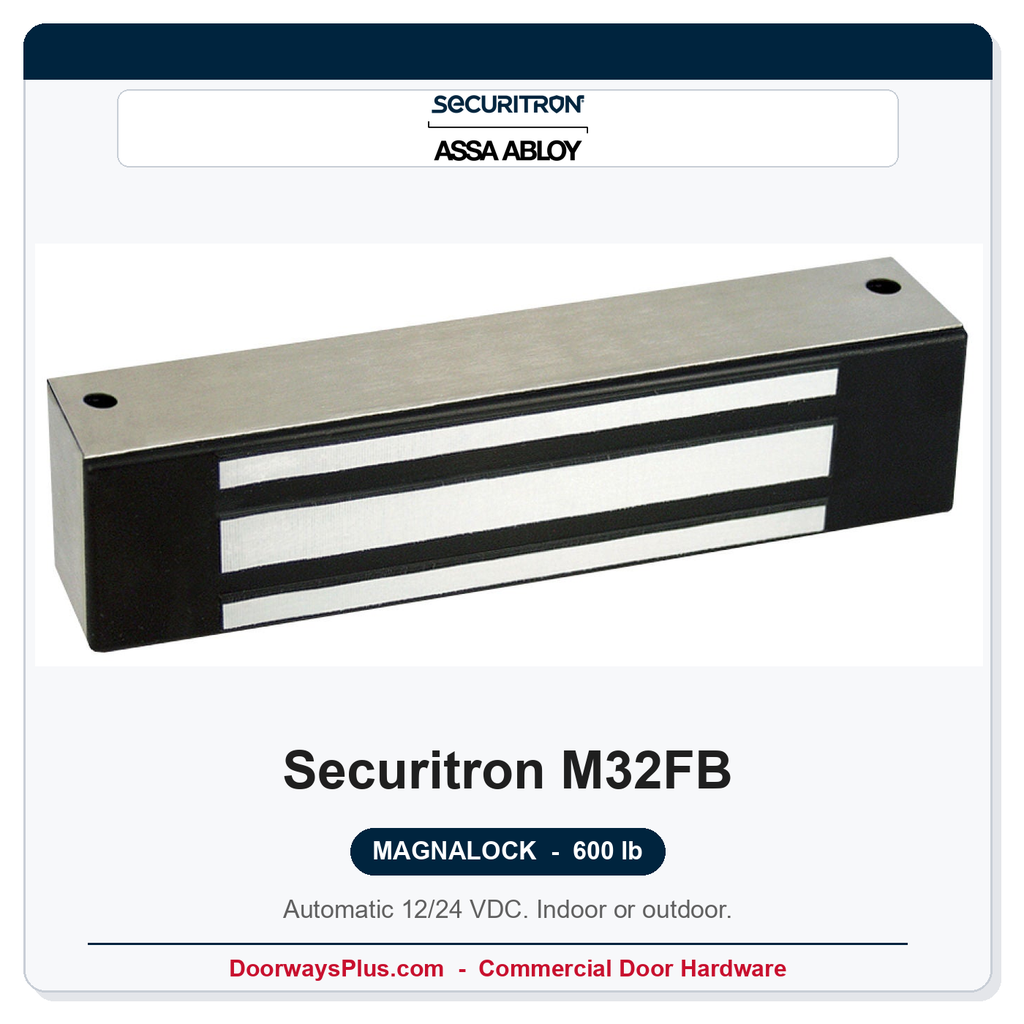

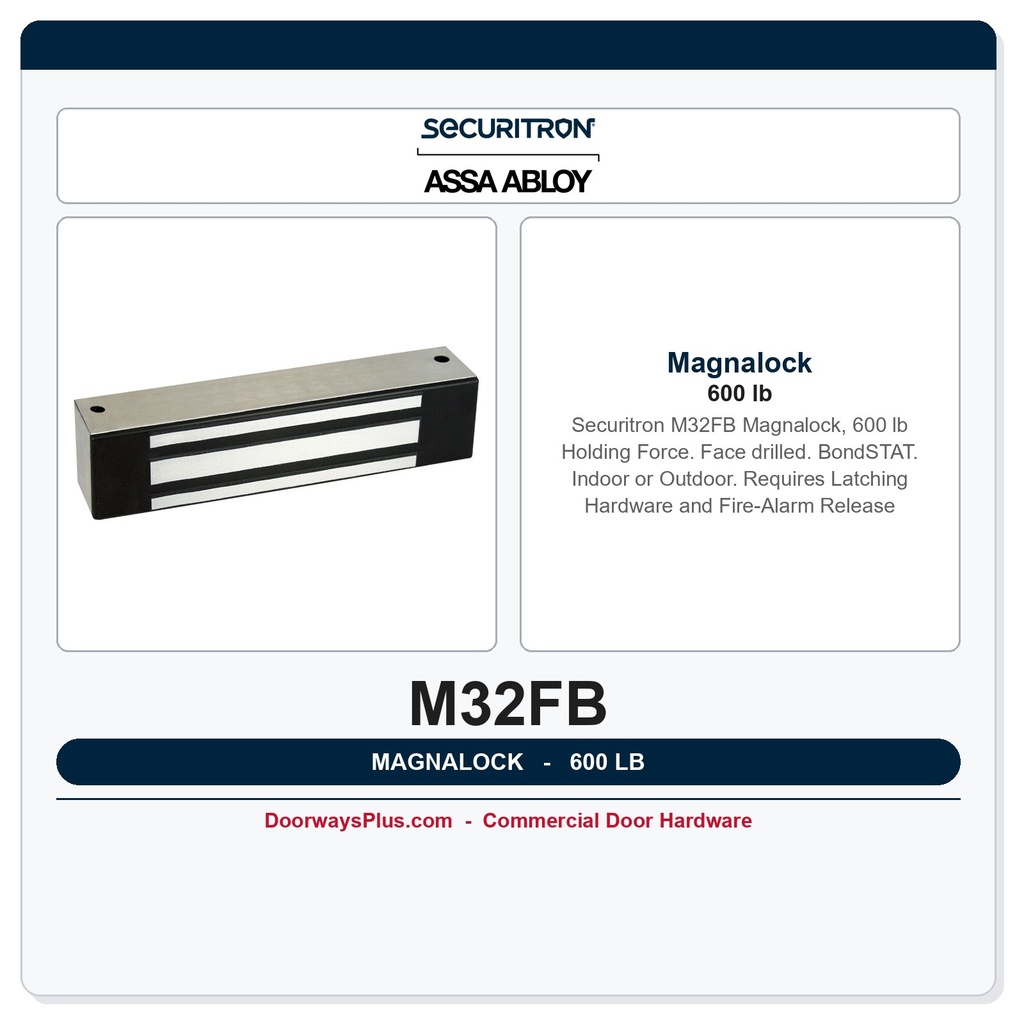

Securitron M32FB Magnalock 600 lb Electromagnetic Lock — Face Drilled with BondSTAT Sensor
The Securitron M32FB Magnalock is a heavy-duty, 600 lb (272 kg) holding-force electromagnetic lock engineered for commercial and institutional access control applications. This listing specifies the face-drilled configuration with an integrated BondSTAT bond sensor, which continuously monitors magnet-to-armature contact and provides door-status feedback to access control systems — eliminating guesswork in security monitoring. Finished in 630 Satin Stainless (US32D), the M32FB is rated for both indoor and outdoor installation, with a fully sealed body that operates reliably across an extreme temperature range of -40°F to 140°F. The unit is manufactured at Securitron's Phoenix factory and is backed by the MagnaCare lifetime replacement warranty.
Key Features & Benefits
- 600 lb Holding Force: Provides robust, high-security holding strength suitable for heavy commercial traffic doors, vestibules, and controlled-entry points.
- BondSTAT Bond Sensor: Built-in door-status monitoring confirms magnetic contact between lock body and armature plate, supporting real-time door-position reporting to access control panels.
- Automatic 12/24 VDC Dual Voltage: Accepts 12 VDC (300 mA) or 24 VDC (150 mA) with no field voltage adjustment required — simplifies installation and reduces commissioning time.
- Instant Release, No Residual Magnetism: Provides immediate, clean door release upon power interruption or access-control command, with no delay caused by residual magnetic flux.
- Built-In MOV Protection: Metal oxide varistor suppresses voltage transients, protecting the lock and connected control equipment.
- Fully Sealed Body: Rated for outdoor use; sealed construction resists moisture, dust, and environmental contaminants across the full -40°F to 140°F operating range.
- PoE Friendly: Low current draw supports Power over Ethernet-based access control architectures where PoE power supplies are used.
- Collapsing Blind Nuts: Provide secure, flush mounting with a clean finished appearance on the door or frame surface.
- 10 ft Jacketed Cable: Pre-attached cable simplifies field wiring and routing to the controller or power supply.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty program covers the lock body for life.
Certifications & Compliance
- UL 10C — 3-Hour Fire Door: Listed for use on positive-pressure-rated fire door assemblies up to 3 hours.
- ANSI/BHMA A156.23 Grade 3 (E08501-500): Meets the electromagnetic lock standard for Grade 3 holding force.
- Additional Listings: CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No.205, CSFM, and CE — supporting use across U.S., Canadian, and international projects.
Important Application Notes
A maglock is not a standalone egress solution. Per code requirements, the M32FB must be paired with appropriate latching hardware and integrated with a fire-alarm release system. A single push button does not constitute a compliant egress release. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately as needed. Do not use lithium or NiMH batteries with AQD or AQS power supplies in the associated power system.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Securitron M32FB |
| Holding Force | 600 lb (272 kg) |
| Configuration | Face Drilled |
| Bond Sensor | BondSTAT (integrated) |
| Voltage / Current | 300 mA at 12 VDC; 150 mA at 24 VDC; auto 12/24 VDC |
| Body Dimensions | 8 in L × 1-5/8 in H × 1-7/8 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Temperature | -40°F to 140°F |
| Indoor / Outdoor | Both (fully sealed) |
| Cable | 10 ft jacketed cable (pre-attached) |
| Fire Rating | UL 10C — 3-Hour Positive Pressure |
| ANSI/BHMA | A156.23 Grade 3 (E08501-500) |
| Additional Listings | CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No.205, CSFM, CE |
| Warranty | MagnaCare Lifetime Replacement |
| Origin | Made in Phoenix, AZ, USA |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
