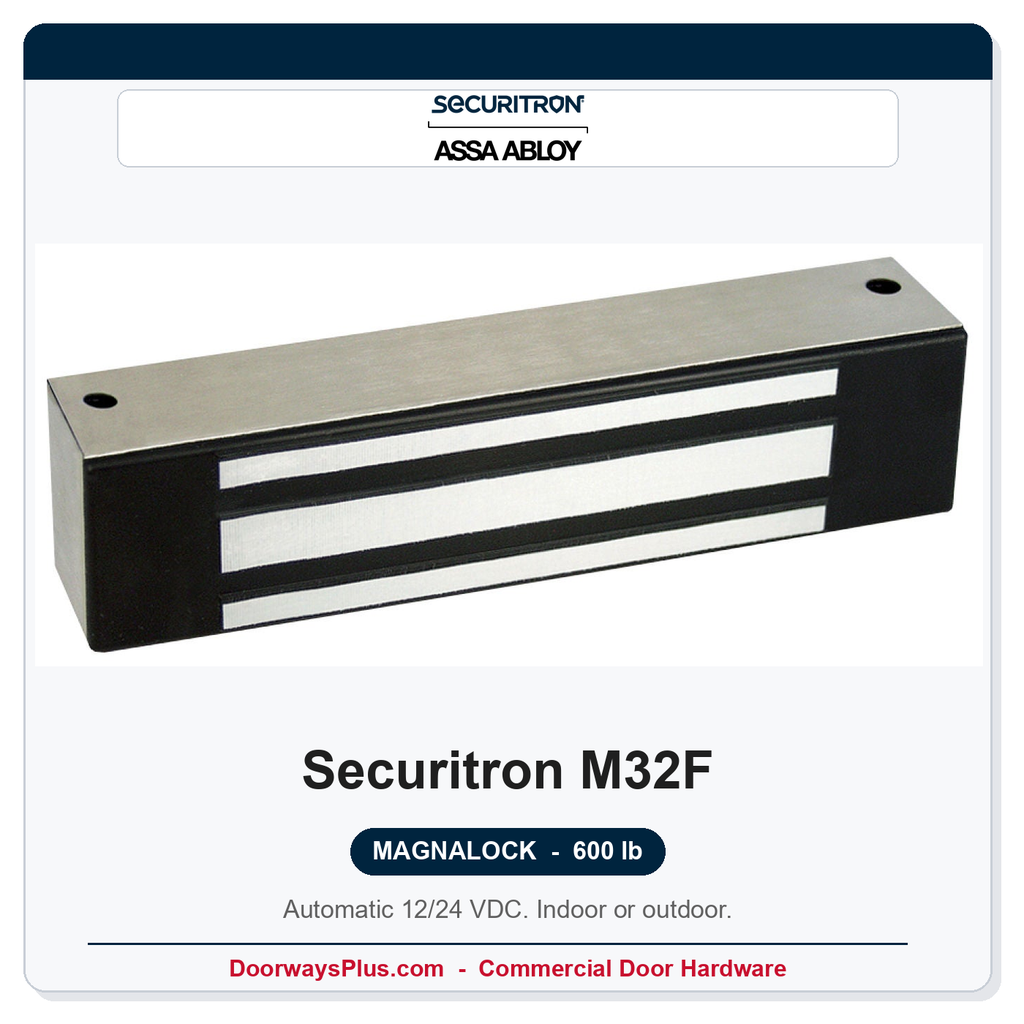

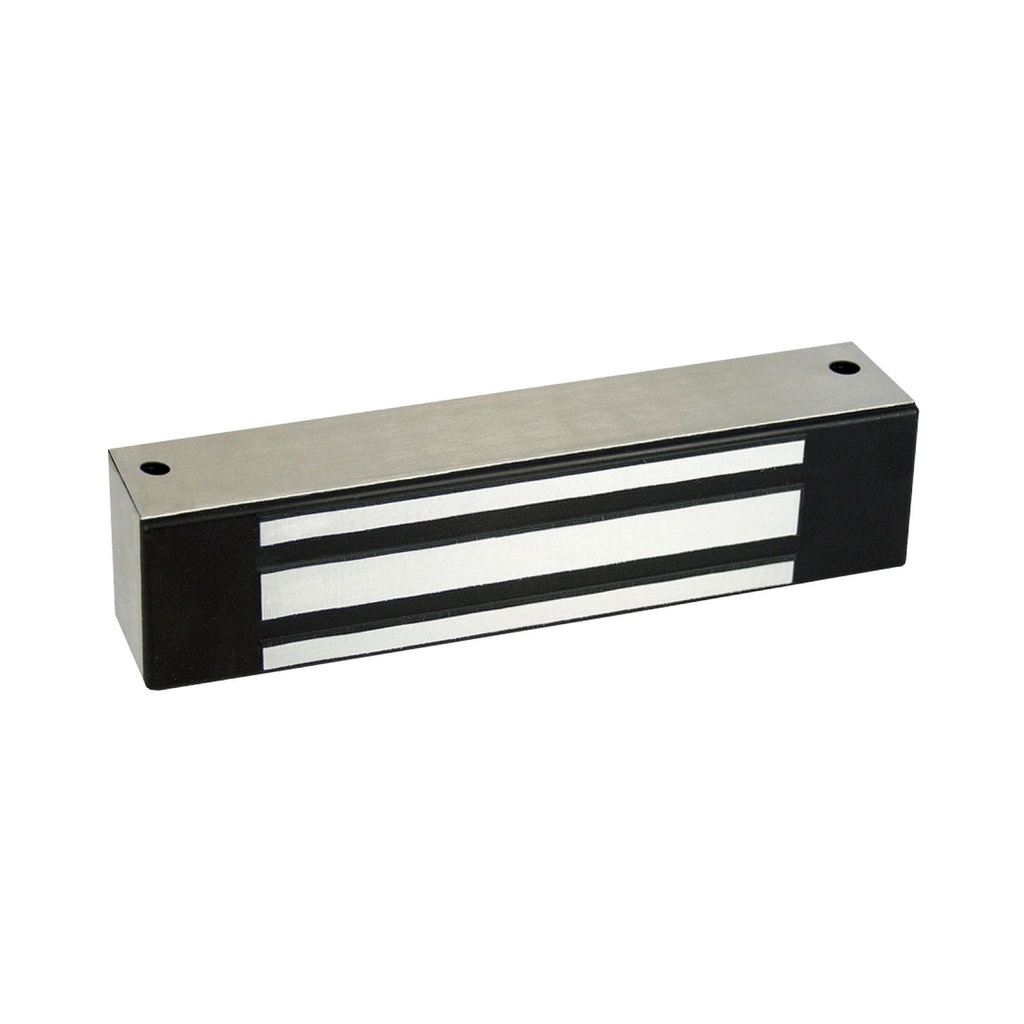

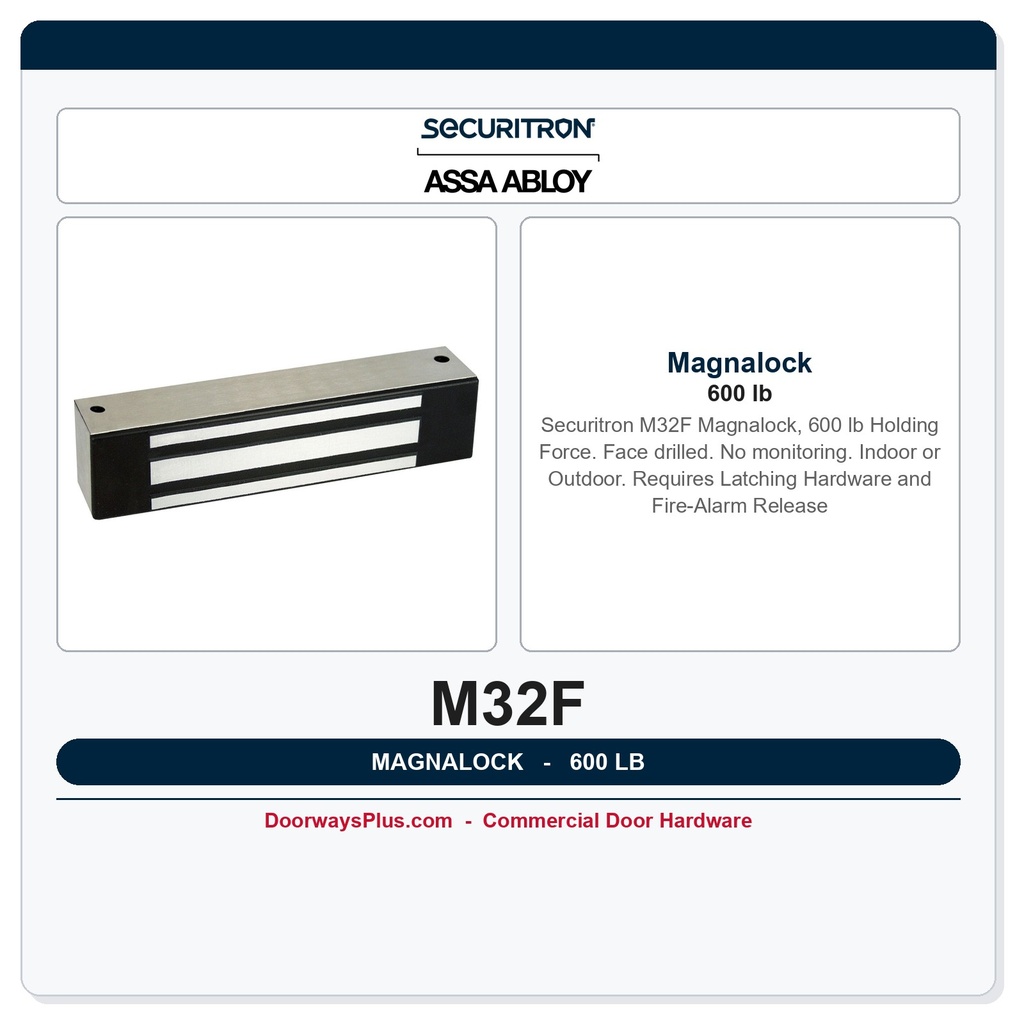

Securitron M32F Magnalock — 600 lb Electromagnetic Lock, Face Drilled, Satin Stainless (630)

The Securitron M32F Magnalock is a heavy-duty commercial electromagnetic lock delivering 600 lb (272 kg) of holding force — engineered for interior and exterior access-control applications where reliable, fail-secure door locking is required. This listing is the face-drilled configuration finished in 630 Satin Stainless (US32D). The M32F does not include a bond sensor or door position switch. Compact enough to fit most aluminum-frame and hollow-metal door assemblies, the M32F is manufactured at Securitron's Phoenix, USA factory and backed by the MagnaCare lifetime replacement warranty.

Key Features & Benefits

• 600 lb Holding Force: Provides robust electromagnetic holding for commercial entry doors, vestibules, server rooms, and controlled-access corridors.
• Automatic 12/24 VDC Operation: Draws 300 mA at 12 VDC or 150 mA at 24 VDC — no field voltage adjustment needed, simplifying installation and integration with existing power supplies.
• PoE Friendly: Low current draw at 24 VDC is compatible with Power-over-Ethernet access-control infrastructure, reducing dedicated power wiring runs.
• Instant Release / No Residual Magnetism: Drops immediately upon signal; residual-magnetism-free design prevents door sticking after de-energization, supporting code-compliant egress timing.
• Built-In MOV: Metal oxide varistor protects connected control equipment from voltage transients at the coil.
• Fully Sealed Body: Rated for indoor and outdoor use across an operating range of −40°F to 140°F (−40°C to 60°C) — suitable for covered exterior vestibules and harsh environments.
• Collapsing Blind Nuts: Simplify mounting into hollow-metal or aluminum door frames without exposed fasteners.
• 10 ft Jacketed Cable: Pre-attached flying lead eases field wiring to nearby power supplies and controllers.
• MagnaCare Lifetime Replacement: Securitron's industry-leading warranty program covers the lock body for the life of the installation.

Certifications & Standards

The Securitron M32F carries a comprehensive certification portfolio for commercial, institutional, and life-safety installations:

• UL 10C — 3-Hour Positive-Pressure Fire Door: Listed for use on fire-rated assemblies requiring positive-pressure fire testing.
• ANSI/BHMA A156.23 Grade 3 (E08501-500)
• CAN4-S104 | CAN/ULC-S533 | ANSI/UL 294 | CSA C22.2 No. 205 | CSFM | CE

Egress & Code Compliance Notice

A maglock is not a standalone egress solution. Per NFPA 101 and IBC requirements, the M32F must be paired with compliant latching hardware and a fire-alarm-interlock release. A single push button alone does not satisfy egress code. Consult your AHJ for project-specific requirements. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately if required.

Technical Details
