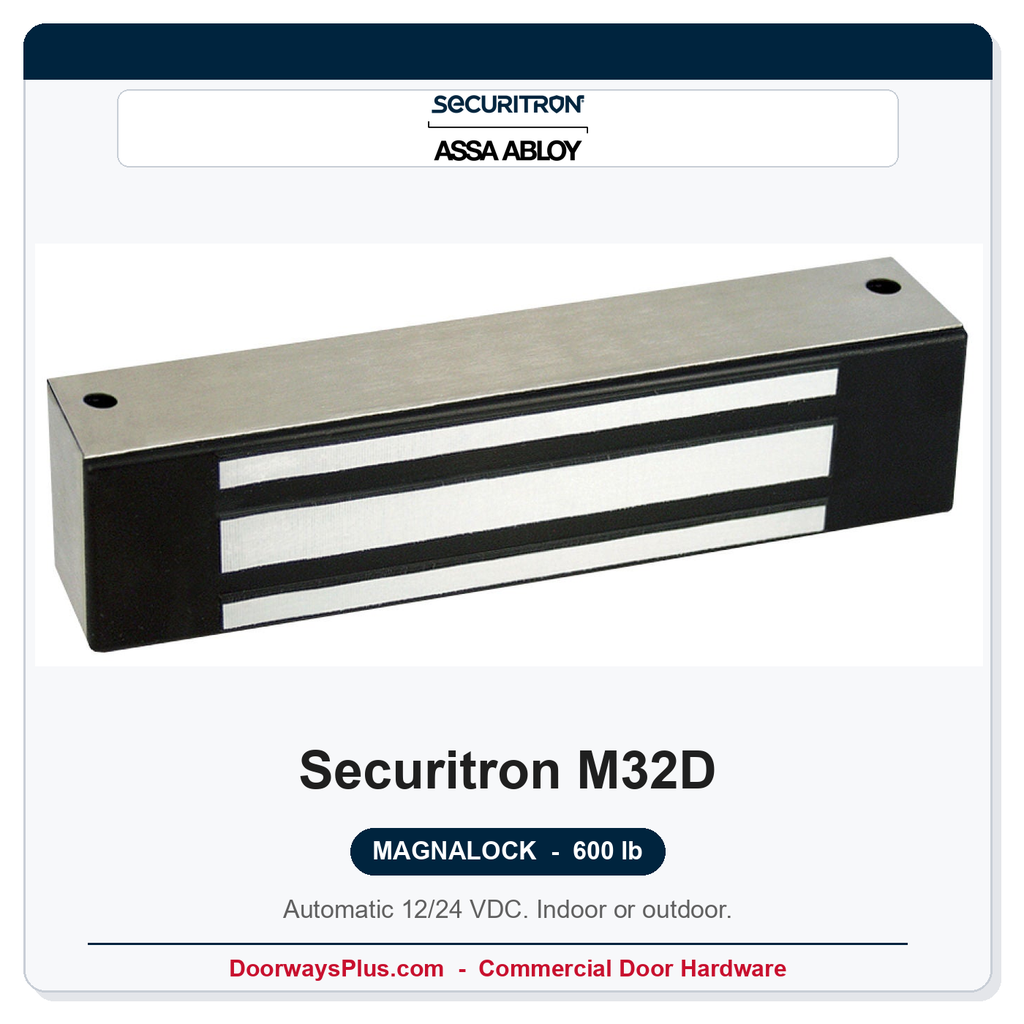

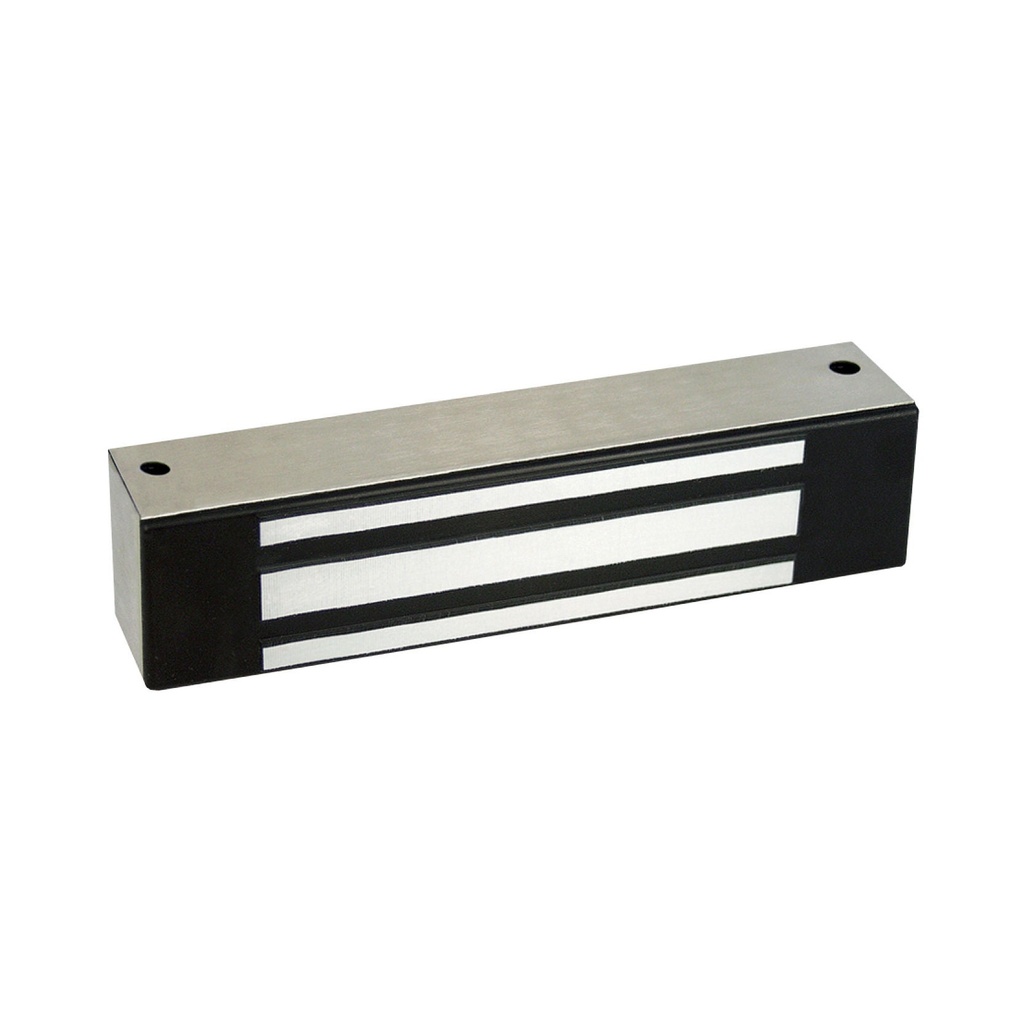

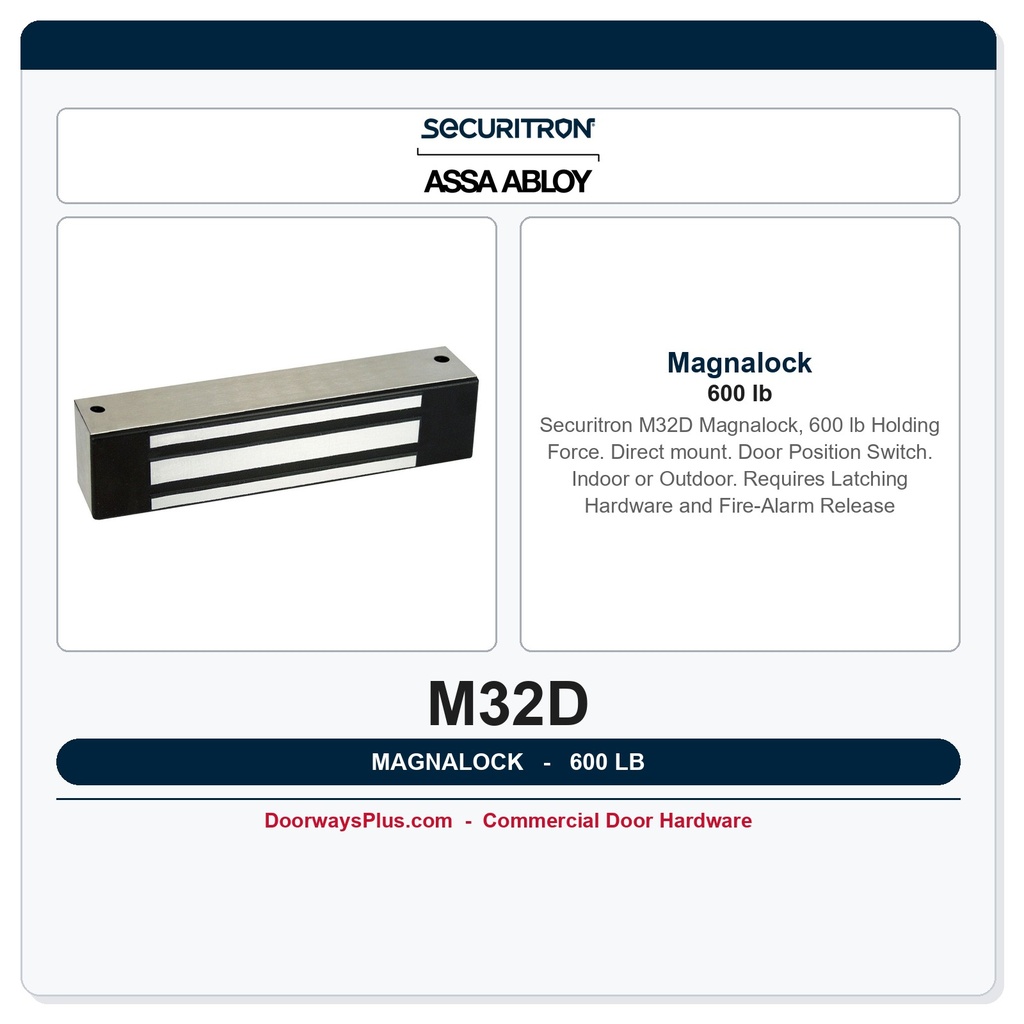

Securitron M32D Magnalock 600 lb – Direct Mount Electromagnetic Lock, Satin Stainless (630/US32D)
The Securitron M32D Magnalock is a commercial-grade electromagnetic lock delivering 600 lb (272 kg) of holding force in a compact, fully sealed housing. This listing is the direct mount configuration with a standard strike and an integrated door position switch (DPS) — providing real-time door status monitoring without a separate sensor. Finished in 630 satin stainless (US32D), the M32D is equally suited for interior and exterior access control applications and carries a MagnaCare lifetime replacement warranty from Securitron's Phoenix, Arizona manufacturing facility.
Key Features & Benefits
- 600 lb Holding Force: Provides robust, reliable security for single swing doors in commercial, institutional, and government applications.
- Automatic 12/24 VDC Operation: Accepts 12 VDC (300 mA) or 24 VDC (150 mA) automatically — no field voltage adjustment required, simplifying installation and commissioning.
- Integrated Door Position Switch: Built-in DPS reports door open/closed status to your access control panel without additional hardware.
- Instant Release, No Residual Magnetism: Drops access immediately upon signal; eliminates the door-hold delay associated with residual magnetism in competing designs.
- PoE Friendly: Low current draw at 24 VDC is compatible with Power-over-Ethernet access control systems.
- Fully Sealed Housing: Rated for outdoor use; operating range of -40°F to 140°F suits harsh environments including covered exterior openings.
- Built-In MOV: Metal oxide varistor suppresses voltage spikes, protecting the lock coil and connected access control equipment.
- Collapsing Blind Nuts: Secure, tool-friendly fastening into hollow door frames and frames without through-access.
- 10 ft Jacketed Cable: Pre-attached lead wire simplifies wiring runs to the power supply or controller.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty backs the M32D for the life of the installation.
Certifications & Standards
- UL 10C – 3-Hour Fire Door: Listed for use on positive-pressure fire door assemblies.
- ANSI/BHMA A156.23 Grade 3 (E08501-500) — electromagnetic lock performance standard.
- ANSI/UL 294 — access control system components.
- CAN4-S104 / CAN/ULC-S533 — Canadian fire and burglar alarm standards.
- CSA C22.2 No. 205, CSFM, CE — additional North American and international listings.
Applications
The M32D is a proven choice for single swing doors in office buildings, schools, hospitals, government facilities, data centers, and multi-tenant residential access points. It is compatible with virtually all major access control platforms and fire-alarm release systems. Important: A maglock is not a standalone egress solution. It must be paired with appropriate latching hardware and a listed fire-alarm door release. A standalone push button alone does not constitute a compliant means of egress release.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M32D |
| Series | Magnalock |
| Mount Type | Direct mount |
| Strike Type | Standard strike (offset, split, and shock-absorbing strikes not included) |
| Holding Force | 600 lb (272 kg) |
| Voltage / Current | 12 VDC @ 300 mA / 24 VDC @ 150 mA, automatic dual-voltage |
| Body Dimensions | 8 in L × 1-5/8 in H × 1-7/8 in D |
| Finish / Color | 630 Satin Stainless (US32D) |
| Door Position Switch | Integrated |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Environment | Indoor or outdoor; fully sealed |
| Lead Wire | 10 ft jacketed cable |
| Certifications | UL 10C (3-hr), ANSI/BHMA A156.23 Grade 3, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, CE |
| Warranty | MagnaCare Lifetime Replacement |
| Country of Origin | USA (Phoenix, AZ) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
