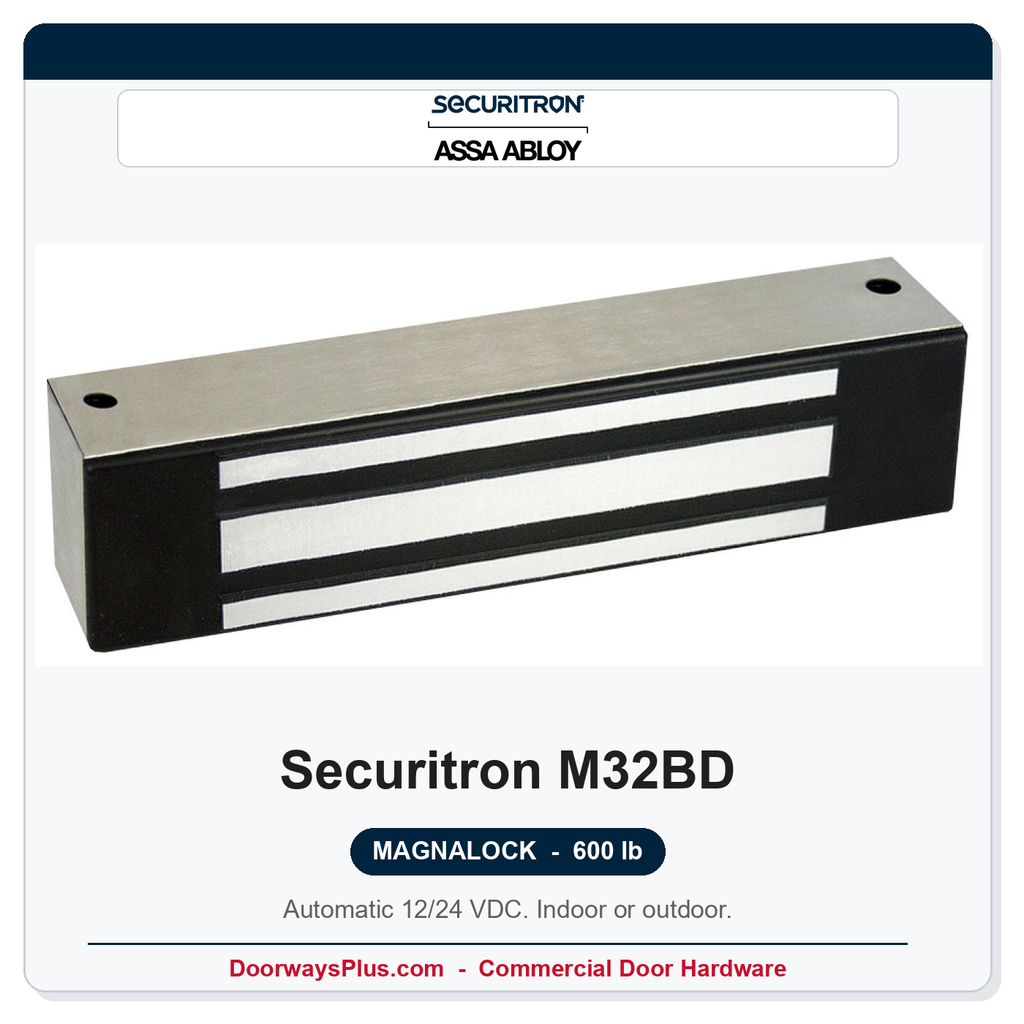

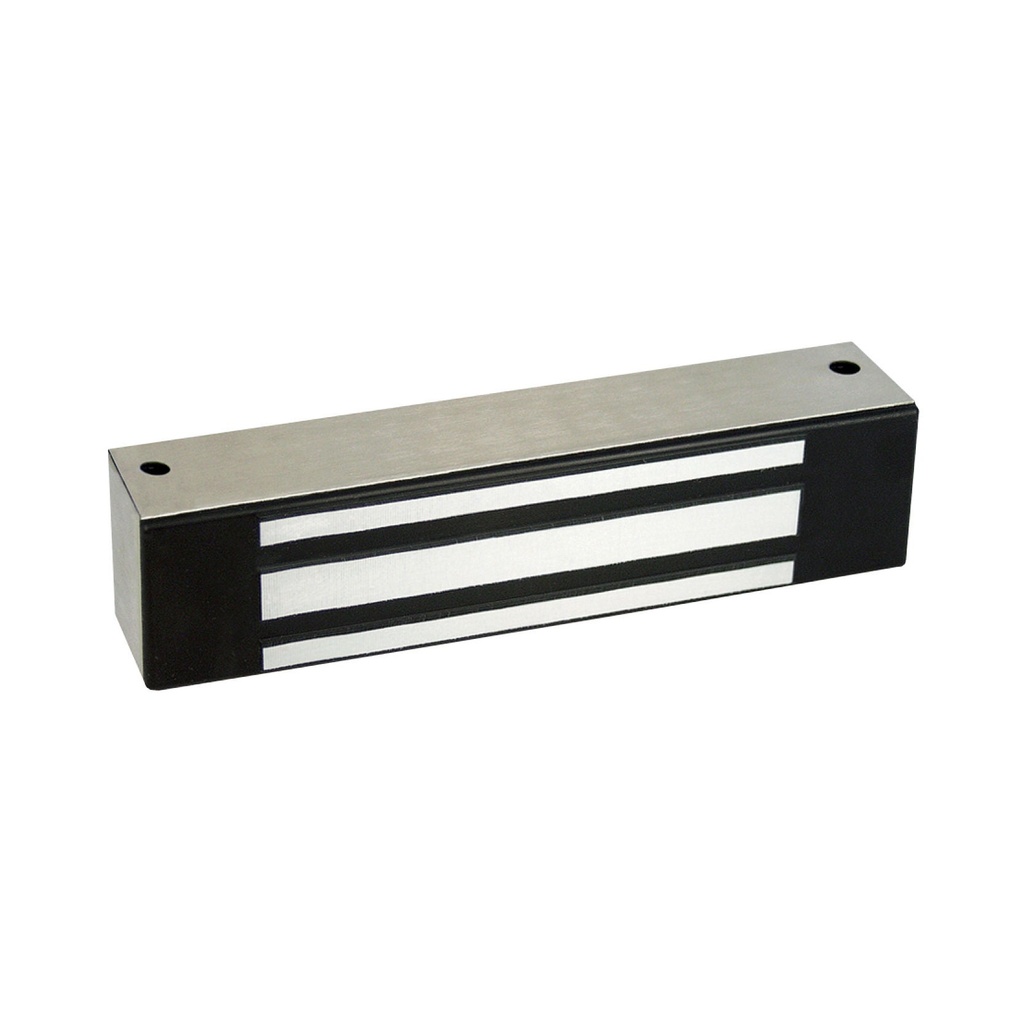

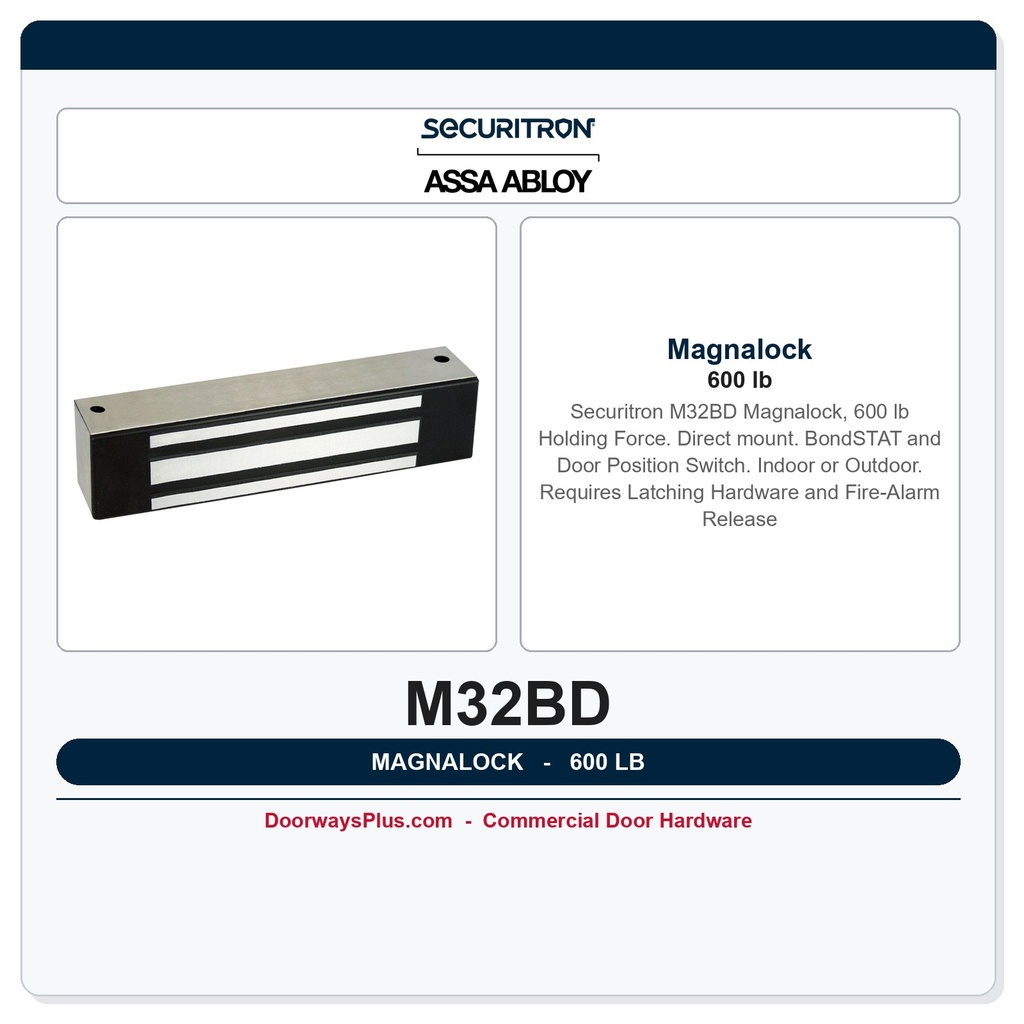

Securitron M32BD Magnalock – 600 lb Direct Mount Electromagnetic Lock, Satin Stainless (630)
The Securitron M32BD Magnalock is a 600 lb (272 kg) holding force electromagnetic lock configured for direct mount installation with a standard armature strike. This listing includes the integrated BondSTAT bond sensor and a built-in door position switch — two monitoring features that eliminate the need for separate add-on accessories and simplify access control wiring. Finished in 630 satin stainless (US32D), the M32BD is engineered for demanding commercial and institutional applications, indoors or out, with a fully sealed housing rated from −40 °F to 140 °F. Built and tested at Securitron's Phoenix, Arizona factory, the M32BD carries the MagnaCare lifetime replacement warranty.
Key Features & Benefits
- 600 lb Holding Force: Delivers 600 lb (272 kg) of electromagnetic holding strength — suitable for high-traffic commercial doors, stairwells, and controlled access points.
- Direct Mount Configuration: Installs directly to the door frame header; no offset or split strike included. Standard armature strike provided.
- BondSTAT Bond Sensor: Continuously monitors the magnetic bond between the lock body and armature, providing real-time status feedback to access control systems for tamper and fault detection.
- Integrated Door Position Switch: Monitors door open/closed state without a separate DPS accessory, reducing parts count and installation complexity.
- Automatic 12/24 VDC Dual Voltage: Operates at 300 mA at 12 VDC or 150 mA at 24 VDC — auto-sensing, no field voltage adjustment required. PoE-friendly power profile.
- Instant Release, No Residual Magnetism: Drops immediately upon power loss or signal; no magnetic residue that could delay egress.
- Built-In MOV Transient Protection: Metal oxide varistor suppresses voltage spikes, protecting connected access control equipment.
- Fully Sealed Body: Weatherproof construction rated for outdoor use; −40 °F to 140 °F operating range.
- Collapsing Blind Nuts: Simplify mounting to hollow metal or aluminum frames without access to the back side of the header.
- 10 ft Jacketed Lead Cable: Pre-wired for fast field connection to power supplies and access control panels.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized lifetime replacement program covers the lock body.
Certifications & Listings
- UL 10C – 3-Hour Positive Pressure Fire Door (supports fire-rated door applications)
- ANSI/BHMA A156.23 Grade 3 (E08501-500)
- ANSI/UL 294 – Access Control System Units
- CAN4-S104 / CAN/ULC-S533 – Canadian fire and access control listings
- CSA C22.2 No. 205
- CSFM – California State Fire Marshal
- CE – European conformity
Important Egress & Safety Notes
An electromagnetic lock is not a complete egress solution on its own. It must be paired with compliant latching hardware and integrated with the building's fire alarm release system so the lock fails-safe (unlocked) on alarm. A standalone push button does not constitute a sole means of egress release under most codes. Consult your Authority Having Jurisdiction (AHJ) for egress compliance requirements. Note: This model does not include an offset strike, split strike, or shock-absorbing strike — order separately if required for your application.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Securitron M32BD |
| Holding Force | 600 lb (272 kg) |
| Mount Type | Direct mount |
| Strike Included | Standard armature strike (no offset, split, or shock-absorbing strike) |
| Bond Sensor | BondSTAT (integrated) |
| Door Position Switch | Integrated |
| Input Voltage | 12 VDC or 24 VDC (automatic sensing, no adjustment) |
| Current Draw | 300 mA @ 12 VDC / 150 mA @ 24 VDC |
| Body Dimensions | 8 in L × 1-5/8 in H × 1-7/8 in D |
| Finish | 630 Satin Stainless (US32D) |
| Environment | Indoor or outdoor; fully sealed |
| Operating Temperature | −40 °F to 140 °F |
| Lead Cable | 10 ft jacketed cable |
| Transient Protection | Built-in MOV |
| Fastening | Collapsing blind nuts |
| Warranty | MagnaCare lifetime replacement |
| Certifications | UL 10C (3-hr), ANSI/BHMA A156.23 Grade 3, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, CE |
| Country of Origin | USA (Phoenix, AZ) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
