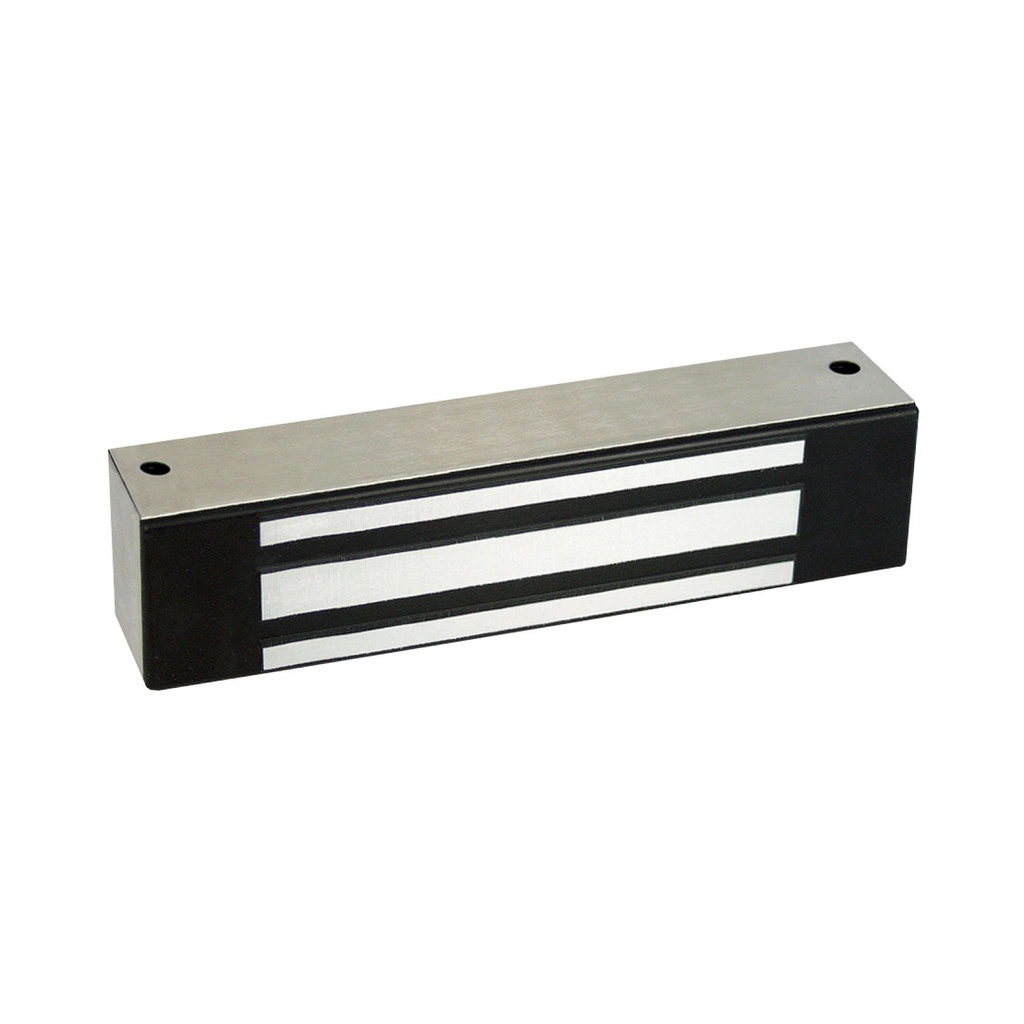

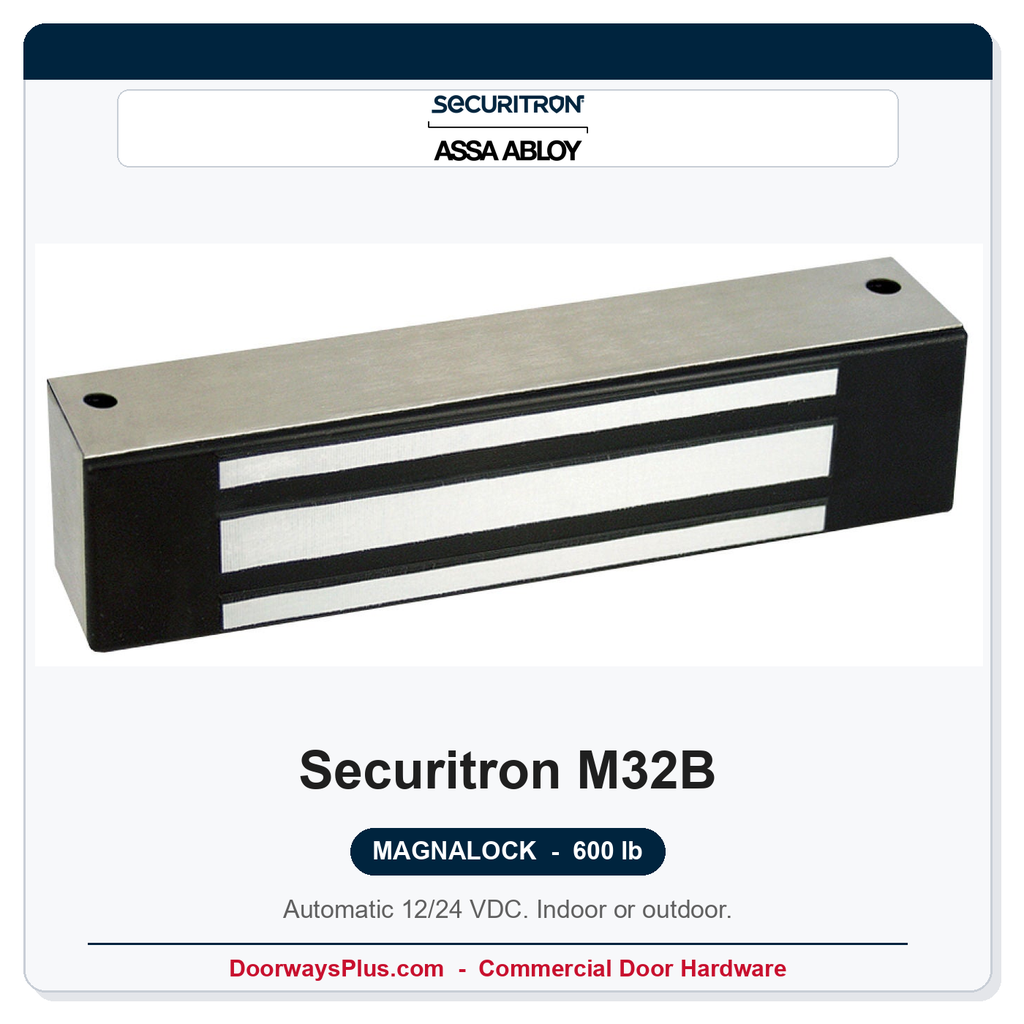

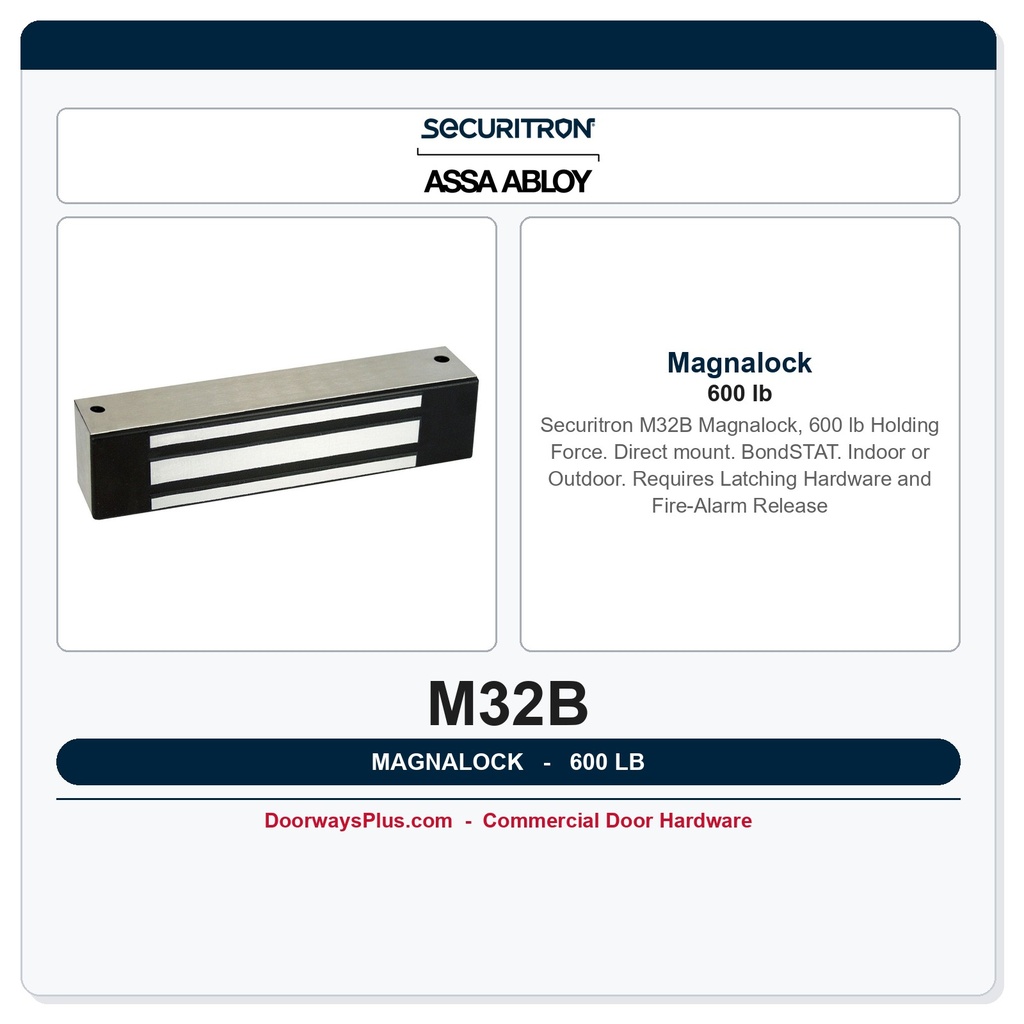

Securitron M32B Magnalock – 600 lb Electromagnetic Lock, Direct Mount with BondSTAT, Satin Stainless
The Securitron M32B Magnalock is a heavy-duty, 600 lb (272 kg) holding force electromagnetic lock designed for commercial access control applications. This listing covers the direct mount configuration with a standard strike and integrated BondSTAT bond sensor — providing real-time door-position feedback to your access control system. Finished in 630 Satin Stainless (US32D), the M32B is equally suited to interior and exterior openings and carries an operating range of -40°F to 140°F. The fully sealed, weatherproof housing is manufactured at Securitron's Phoenix factory and is backed by the MagnaCare lifetime replacement warranty.
Key Features & Benefits
- 600 lb Holding Force: Meets the strength demands of high-traffic commercial, institutional, and controlled-access openings.
- BondSTAT Bond Sensor: Built-in magnetic bond sensor confirms door closure and lock engagement — essential for access control monitoring and alarm integration.
- Automatic 12/24 VDC Operation: Accepts 300 mA at 12 VDC or 150 mA at 24 VDC automatically with no field voltage adjustment required, simplifying installation.
- PoE Friendly: Low current draw at 24 VDC is compatible with Power-over-Ethernet access control infrastructures.
- Instant Release, No Residual Magnetism: Drops immediately on power interruption — critical for life-safety egress compliance.
- Built-in MOV: Metal oxide varistor protects the lock coil and connected equipment from voltage transients.
- Fully Sealed Housing: Weatherproof construction for indoor or outdoor use across a wide thermal range.
- Collapsing Blind Nuts: Simplify mounting to standard door frames and hollow-metal surfaces without exposed fasteners.
- 10 ft Jacketed Cable: Pre-attached lead wire speeds wiring to the power supply or controller.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty program covering the lock body.
Certifications & Listings
The M32B carries an extensive certification portfolio for commercial and institutional projects: UL 10C 3-Hour Fire-Rated, ANSI/BHMA A156.23 Grade 3 (E08501-500), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, and CE. These listings support specification on projects requiring fire-door compliance and access control device standards across the U.S. and Canada.
Important Egress & Installation Notes
An electromagnetic lock is not a complete egress solution by itself. It must be paired with appropriate latching hardware and fire-alarm shunt/release circuitry to meet code requirements. A standalone push button does not constitute a sole means of egress release. This model does not include an offset strike, split strike, or shock-absorbing strike — order those components separately if required. Do not use lithium or NiMH batteries with AQD or AQS power supplies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Securitron M32B |
| Holding Force | 600 lb (272 kg) |
| Mount Type | Direct Mount |
| Strike Type | Standard Strike with BondSTAT Bond Sensor |
| Finish | 630 Satin Stainless (US32D) |
| Voltage | 12 VDC / 24 VDC (automatic, no adjustment) |
| Current Draw | 300 mA @ 12 VDC | 150 mA @ 24 VDC |
| Body Dimensions | 8 in L × 1-5/8 in H × 1-7/8 in D |
| Operating Temperature | -40°F to 140°F |
| Indoor / Outdoor | Both (fully sealed) |
| Lead Wire | 10 ft jacketed cable |
| Fire Rating | UL 10C 3-Hour |
| Standards & Listings | ANSI/BHMA A156.23 Grade 3 (E08501-500), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, CE |
| Warranty | MagnaCare Lifetime Replacement |
| Origin | Made in Phoenix, AZ, USA |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
