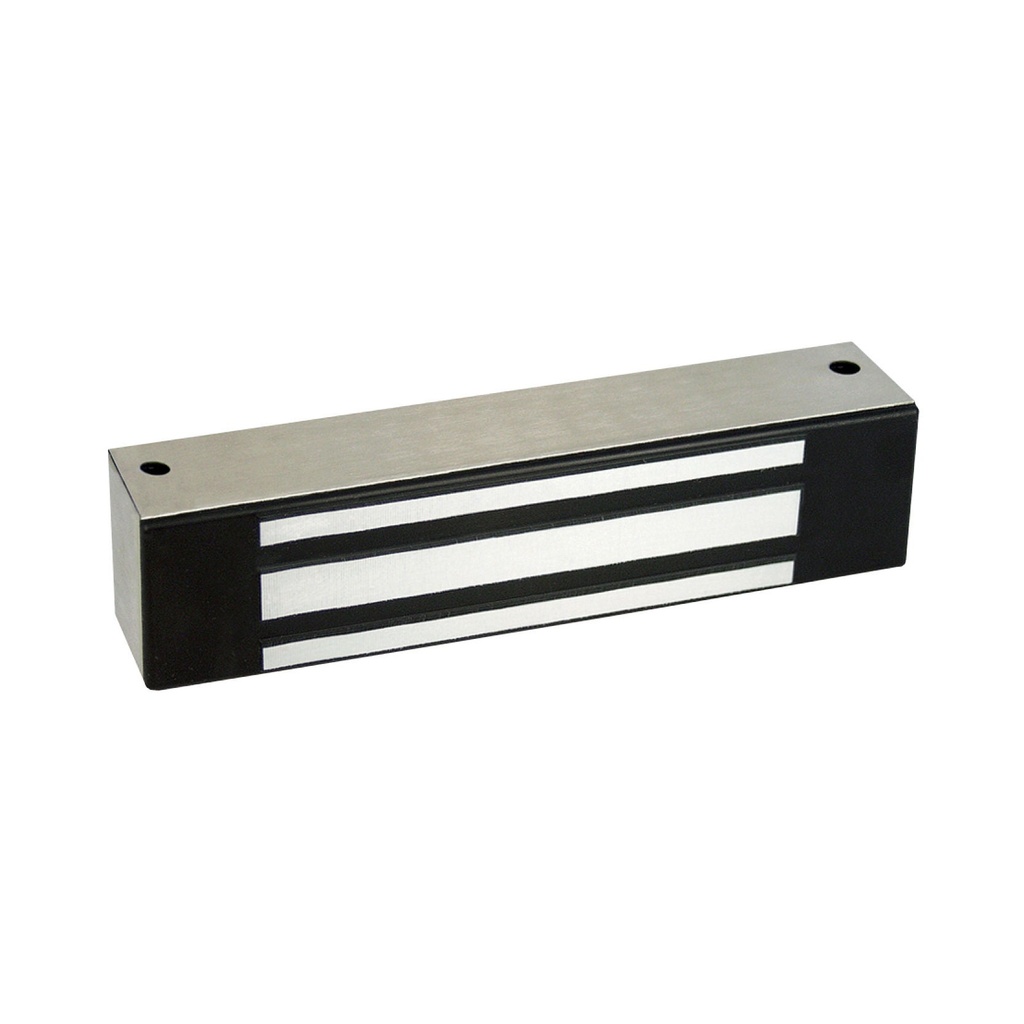

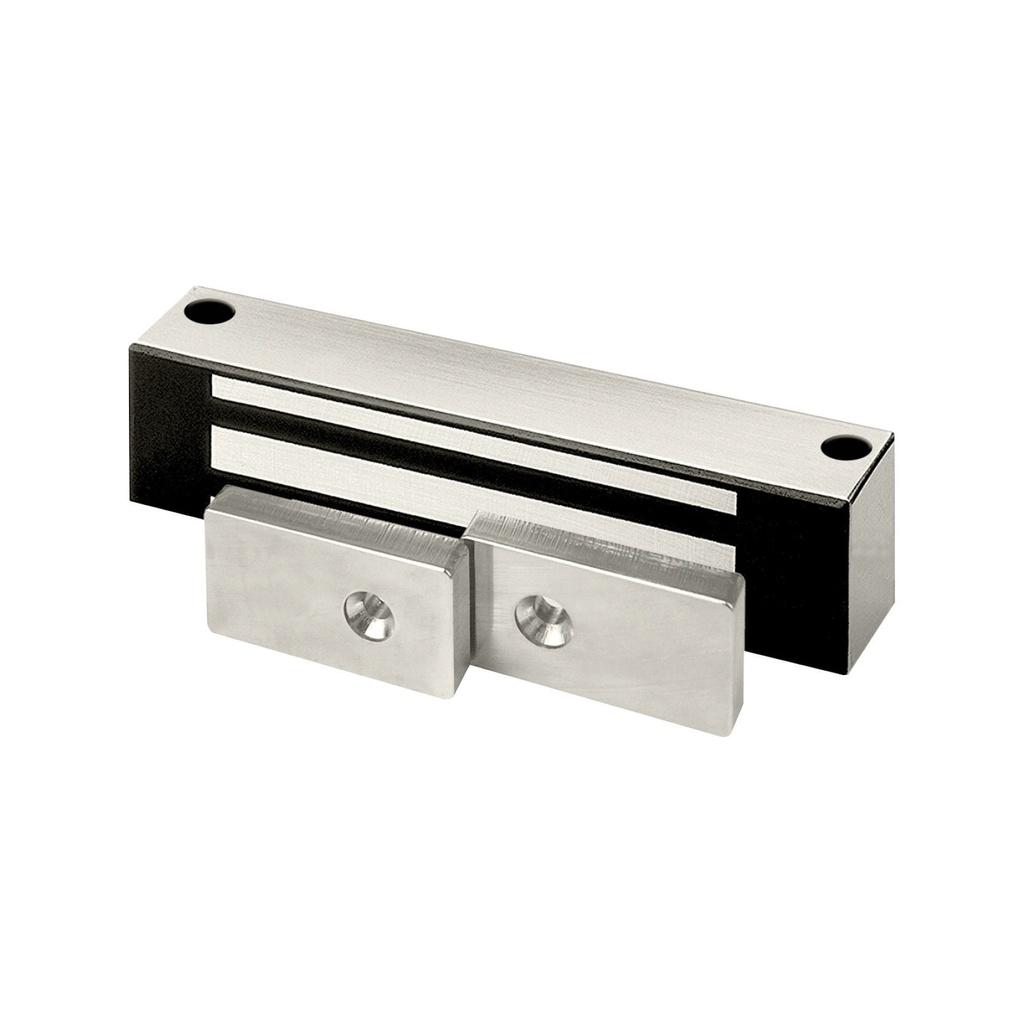

Securitron M32 Magnalock – 600 lb Holding Force Electromagnetic Lock
The Securitron M32 Magnalock is a commercial-grade, direct-mount electromagnetic lock delivering 600 lb holding force for reliable access control on single doors. Operating on dual voltage 12/24 VDC, this versatile mag lock is engineered for both indoor and outdoor installations, withstanding temperatures from -40°F to 140°F — making it equally at home on interior corridor doors and exterior-facing entry points. The M32 is suitable for a wide range of commercial, institutional, and industrial access control applications where a compact, surface-mounted electromagnetic locking solution is required.
Key Features & Benefits
- 600 lb Holding Force: Provides robust, positive locking suitable for high-traffic commercial doors where security and reliability are critical.
- Dual Voltage Operation (12/24 VDC): Draws 300 mA at 12 VDC or 150 mA at 24 VDC, offering flexibility to match existing access control panel infrastructure without additional power conversion.
- Direct-Mount Design: Simplified installation footprint — mounts directly to door frame or header without complex bracketing in standard configurations.
- Wide Temperature Range (-40°F to 140°F): Rated for indoor and outdoor use, making the M32 a dependable choice for vestibules, parking structure doors, exterior exits, and climate-variable environments.
- UL 10C Listed: Meets UL 10C Positive Pressure Fire Test requirements, supporting fire-rated door applications where code compliance is mandatory.
- Grade 3 Rated: Meets Grade 3 performance standards, appropriate for medium- to high-security commercial applications.
- Fire-Alarm Release Compatible: Designed to integrate with fire-alarm systems for code-compliant fail-safe release — a requirement for electromagnetic locks on fire-rated and egress doors.
Application Notes
The M32 Magnalock requires latching hardware (such as a door coordinator or appropriate pull hardware) to prevent free-swinging of the door leaf and to maintain proper armature contact. Integration with a fire-alarm release circuit is required by NFPA 101 and local codes for installation on egress paths — consult applicable building and fire codes before specifying. Ideal applications include office building entries, school corridor doors, healthcare facility access points, and secured exterior egress doors.
Technical Details
| Feature | Details |
|---|---|
| Brand | Securitron |
| Model | M32 Magnalock |
| Holding Force | 600 lb |
| Mounting Type | Direct-mount |
| Input Voltage | 12 VDC / 24 VDC (dual voltage) |
| Current Draw | 300 mA @ 12 VDC; 150 mA @ 24 VDC |
| Operating Temperature | -40°F to 140°F |
| Installation Environment | Indoor or Outdoor |
| Performance Grade | Grade 3 |
| UL Listing | UL 10C (Positive Pressure Fire Test) |
| Fire-Alarm Release | Required |
| Latching Hardware | Required (sold separately) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
