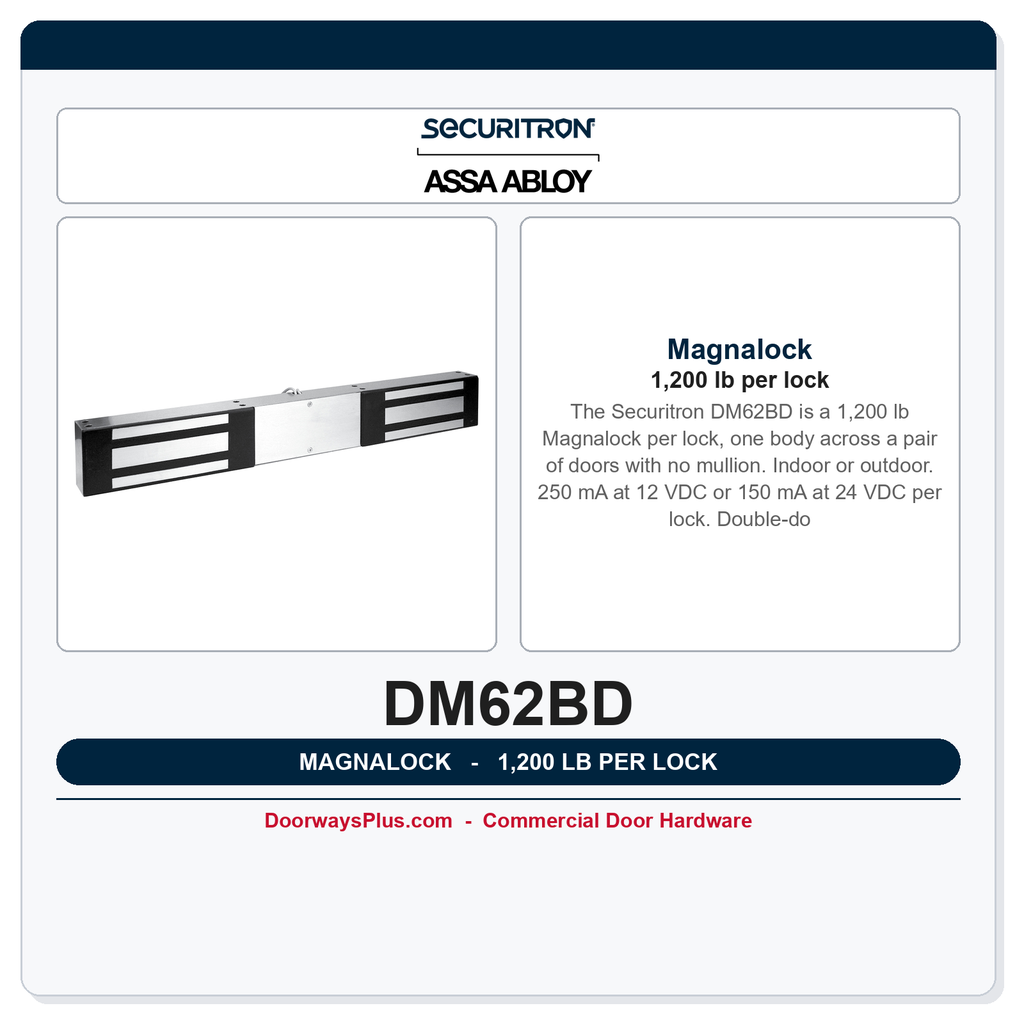

Securitron DM62BD Magnalock | 1,200 lb per lock
The Securitron DM62BD is a 1,200 lb Magnalock per lock. One body spans a pair of doors that have no mullion. Indoor or outdoor. The body is 22 in long, 1-3/4 in high, and 2-3/4 in deep. Each strike is 6 in long by 1-3/4 in high. Flat mounting space is 2-1/2 in. 250 mA at 12 VDC or 150 mA at 24 VDC, measured per lock. Operating range is -40 F to 140 F. UL 10C, CAN4-S104, CAN/ULC-S533, ANSI/BHMA A156.23 Grade 2, and CSFM. Double-door Magnalock with BondSTAT and a door position switch. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release.
Institutional Grade Features & Benefits
- 1,200 lb holding force per lock. One continuous body across both leaves.
- Double door, no mullion.
- Double-door Magnalock with BondSTAT and a door position switch.
- Indoor or outdoor. -40 F to 140 F.
Applications
- Pair of doors with no mullion
- Indoor or outdoor openings
Technical Details
| Feature | Details |
|---|---|
| Model Number | DM62BD |
| Holding force | 1,200 lbs per lock |
| Body | 22 in L x 1-3/4 in H x 2-3/4 in D |
| Strike | 6 in L x 1-3/4 in H |
| Flat mounting space | 2-1/2 in |
| Electrical | 250 mA at 12 VDC or 150 mA at 24 VDC, per lock |
| Temperature | -40 F to 140 F |
| Use | Indoor or outdoor |
| Listings | UL 10C, CAN4-S104, CAN/ULC-S533, ANSI/BHMA A156.23 Grade 2, CSFM |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Brand | Securitron |
| Magnetic Lock Options | Bond Sensor, Door Status |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Double Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
Securitron DM62 Electromagnetic Lock Catalog Page
