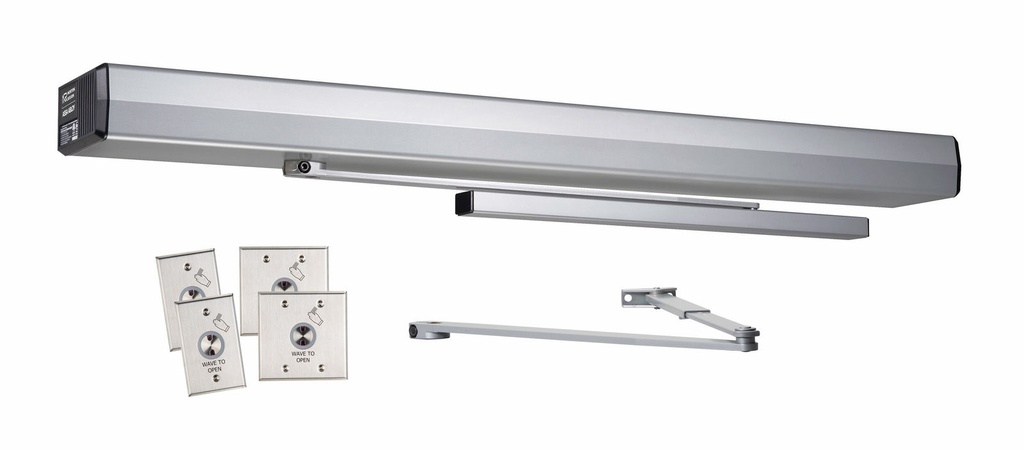

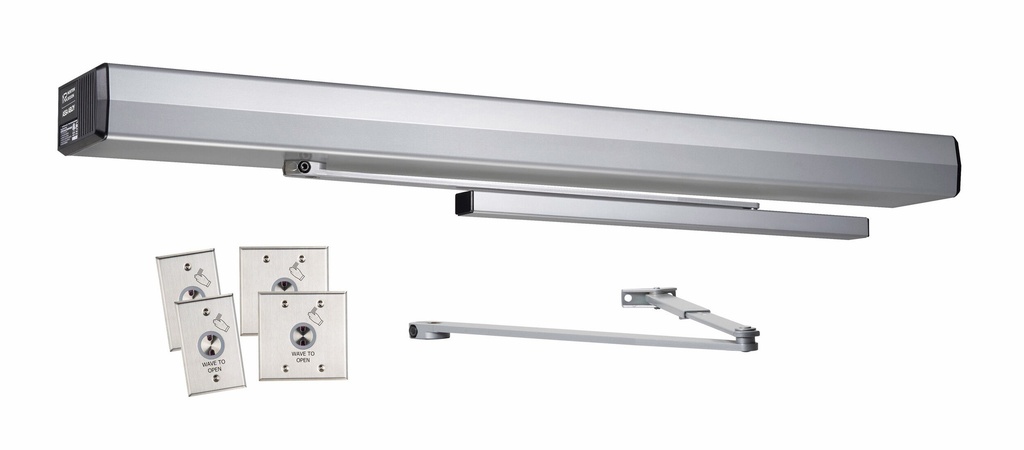

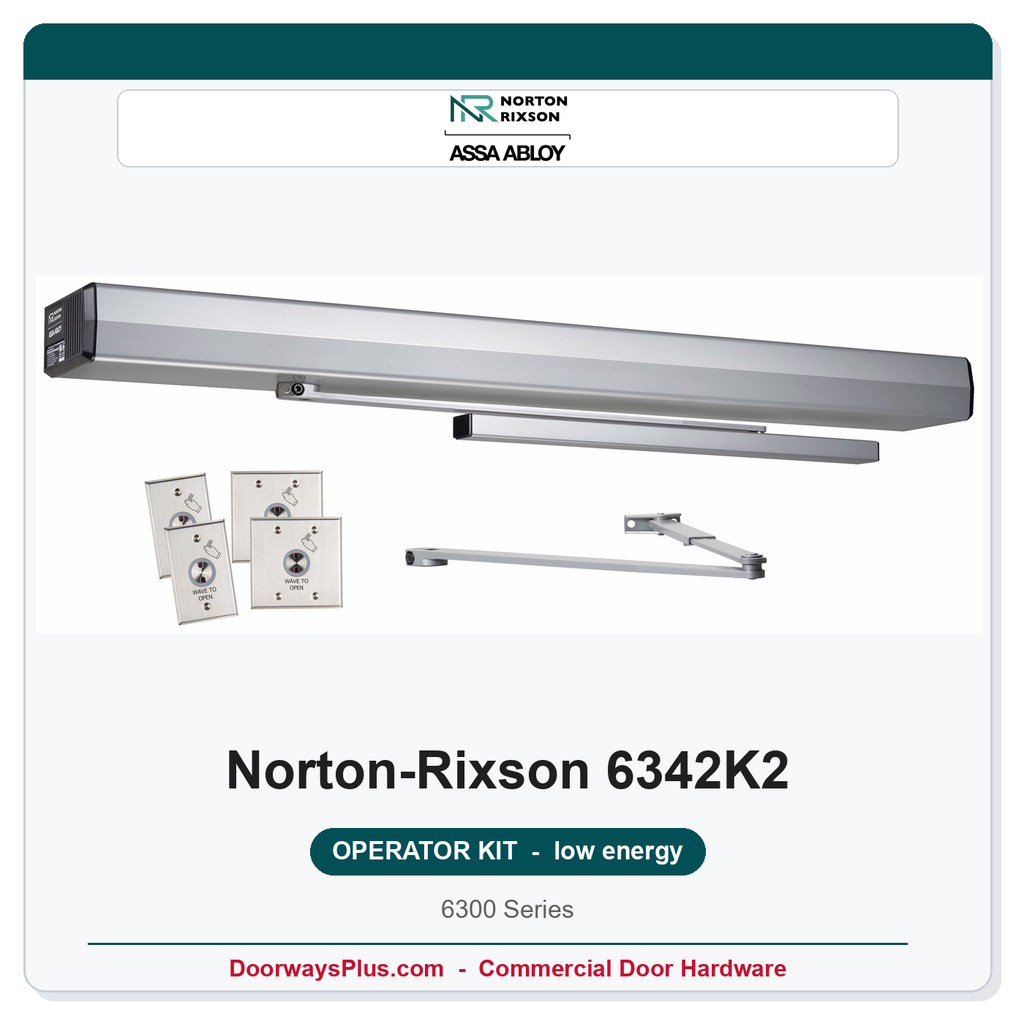

Norton 6342K2 Low Energy Operator Kit — 6300 Series with Wave-to-Open Switches, Finish 689
The Norton 6342K2 is a complete low energy door operator kit from Norton's 6300 Series, designed for commercial and institutional automatic door applications where hands-free, touchless entry is required. This kit ships as a ready-to-install package measuring 39-5/8 inches and includes the operator unit, cover, push arm, pull arm, and two (2) Norton 700 Wave-to-Open switches — everything needed for a single-door installation. Finish 689 (aluminum) provides a clean, professional appearance suited to a wide range of commercial interiors.
The 6342K2 is purpose-built for facilities that need ADA-accessible, low energy automatic operation without the complexity of full-power operators. Wave-to-open activation allows users to trigger the door without physical contact, making it an ideal solution for healthcare, education, retail, and public-access environments. Note: this kit (6342K2) is distinct from the 6341K3 kit, which uses different switch and push-plate accessories (ADA1019-2, 548, 539). Confirm model carefully before ordering.
Key Features & Benefits
- Complete Kit Configuration: Includes operator, cover, push arm, pull arm, and two (2) 700 Series Wave-to-Open switches — no additional switch purchase required for a standard single-door setup.
- Touchless Wave-to-Open Activation: The included 700 Series switches detect hand motion to trigger door opening, supporting hygienic, hands-free entry in high-traffic or infection-sensitive environments.
- Low Energy Operation: Engineered for controlled, reduced-speed door swing — compliant with low energy operator requirements for pedestrian doors where full-power operators are not appropriate or permitted.
- 6300 Series Platform: Part of Norton's established 6300 Series low energy operator family, supporting consistent installation and service across a product line.
- Finish 689 (Aluminum): Painted aluminum finish integrates cleanly with commercial storefront, aluminum-frame, and hollow metal door assemblies.
- 2-Year Warranty: Norton's stated 2-year warranty applies to 6300 Series low energy operators, supporting long-term reliability and facility maintenance planning.
- 1 Business Day Lead Time: Available for fast fulfillment to support active job schedules.
Typical Applications
- Healthcare facilities and medical office buildings
- K–12 schools, universities, and libraries
- Government and municipal buildings
- Retail storefronts and shopping centers
- Office building lobbies and interior corridors
- Any commercial opening requiring touchless, low energy automatic door access
Technical Details
| Feature | Details |
|---|---|
| Brand | Norton (Norton-Rixson / ASSA ABLOY) |
| Model Number | 6342K2 |
| Series | 6300 Series Low Energy Operator |
| Kit Contents | Operator, cover, push arm, pull arm, (2) 700 Wave-to-Open switches |
| Operator Length | 39-5/8 in |
| Switch Type | Norton 700 Series Wave-to-Open (touchless) |
| Finish | 689 (Aluminum) |
| Warranty | 2-Year (6300 Series low energy operators) |
| Lead Time | 1 Business Day |
| Category | Low Energy Door Operator / Automatic Door Operator |
DoorwaysPlus can also quote comparable low energy operator solutions from preferred lines including Hager, Corbin Russwin, and Accentra (formerly Yale) if you are evaluating alternatives or specifying for a project — contact our commercial hardware team for a competitive quote.
| Brand | Norton |
| General - US Finishes | 689 - Spray Alumimun |
| Series | Norton - 6300 Series |
| Operator Mounting | Push and Pull |
| Door Opening Width | 48 Inches, 36 Inches |
