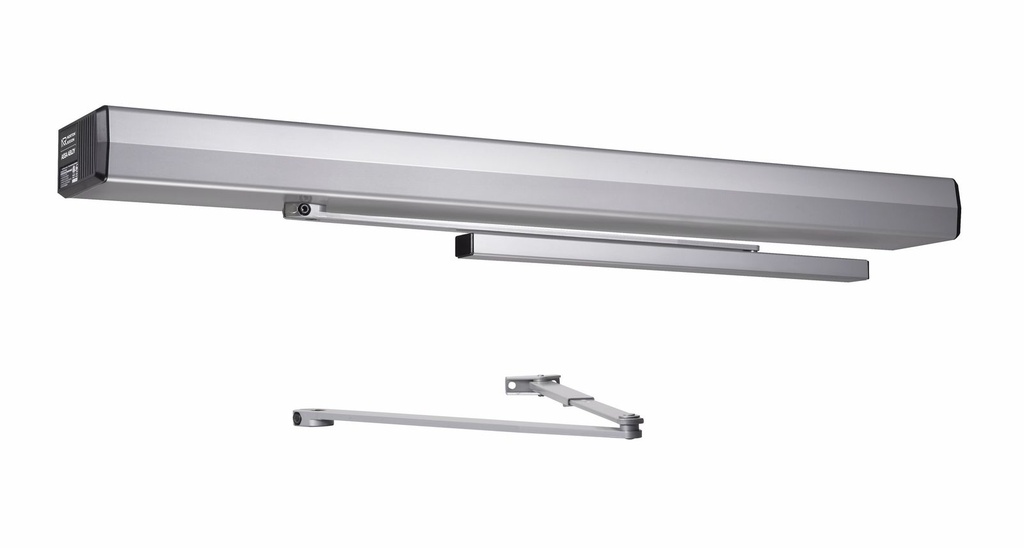

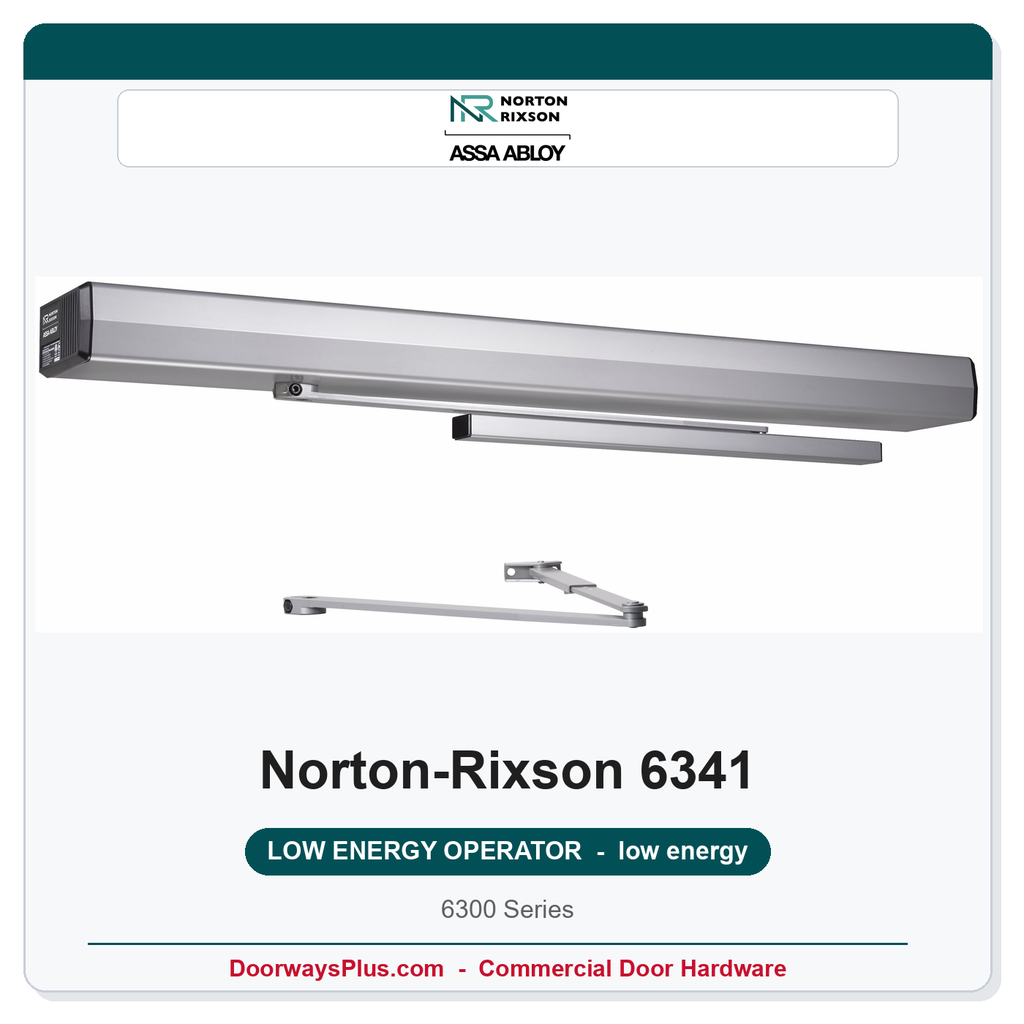

Norton 6341 Low Energy Door Operator — 6300 Series Universal Push & Pull

The Norton 6341 is a commercial-grade, low energy automatic door operator from Norton's 6300 Series — a universal platform engineered for both push- and pull-side installations on a single unit. Designed for high-traffic commercial, institutional, and ADA-accessible entryways, the 6341 ships in Finish 689 (Aluminum) and accommodates doors up to 250 lb at 48 inches wide, making it a dependable solution for heavy-duty openings that demand code-compliant, low-energy operation.

The 6300 Series shares a common platform with the Norton 6200 and 5200 Series, simplifying specification consistency across a facility. Its universal arm package includes a rigid arm, slide track, and a low-ceiling double lever arm, giving installers the flexibility to configure the operator for virtually any door orientation or ceiling height restriction — all in a compact 37-3/8 inch overall length unit.

Key Features & Benefits

• Universal Push and Pull: A single operator handles both push- and pull-side mounting, reducing the number of SKUs required for mixed-door projects and lowering inventory overhead.
• Comprehensive Arm Package: Ships standard with rigid arm, slide track, and low-ceiling double lever arm — versatile enough for standard and tight-ceiling commercial applications.
• NROS Integrated Wireless Hot Spot: The built-in Norton Remote Operations System (NROS) wireless module enables remote monitoring, adjustment, and diagnostics without additional wiring infrastructure — a significant labor-saving advantage during commissioning and ongoing facility management.
• Heavy-Duty Door Capacity: Rated for doors up to 250 lb and 48 inches wide, suitable for demanding commercial and institutional entryways including healthcare, education, and government facilities.
• Shared 6200/5200 Platform: Specifiers and facility managers familiar with Norton's 5200 or 6200 Series will find compatible architecture, easing retrofits and reducing training time for maintenance staff.
• 2-Year Limited Warranty: Covered under Norton's 2-year limited warranty for low energy operators in the 6300 Series — providing confidence in long-term performance.
• Finish 689 — Aluminum: Durable aluminum finish suited for a wide range of commercial door frame and storefront aesthetics.

Typical Applications

• ADA-accessible building entrances requiring low-energy automatic operation
• Healthcare facilities, hospitals, and medical office buildings
• Educational institutions and government buildings
• Retail storefronts and commercial office lobbies
• High-traffic vestibule and corridor doors with restrictive ceiling clearances

Technical Details

Note: DoorwaysPlus can also quote comparable low energy operators from preferred lines such as Accentra (formerly Yale), Hager, and Corbin Russwin — brands recognized for stable product platforms and long-term parts availability. Contact our team for a side-by-side comparison or project quote.
