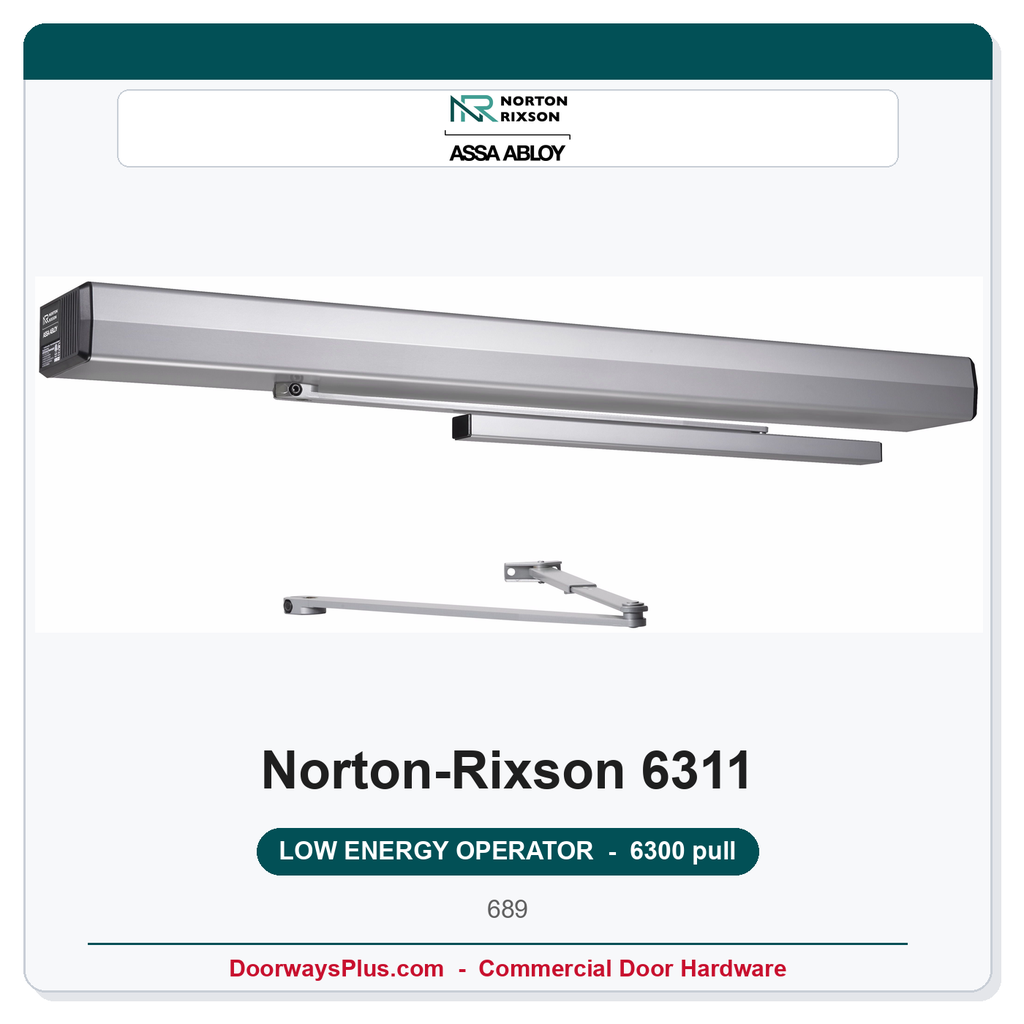

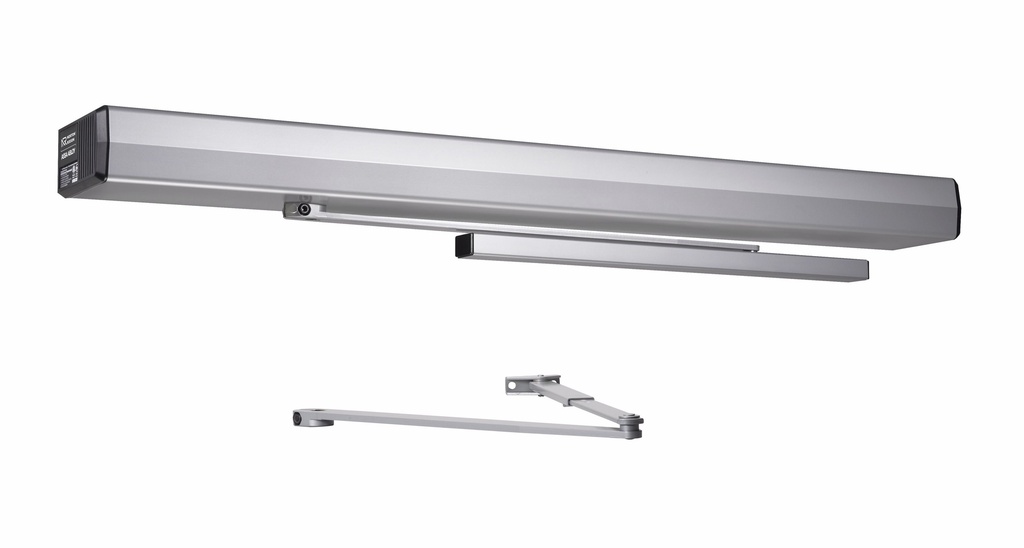

Norton 6311 Low Energy Door Operator – Pull Side, 6300 Series, Finish 689
The Norton 6311 is a commercial-grade, low energy automatic door operator from the Norton 6300 Series, engineered specifically for pull-side door applications. Featuring a rigid arm and slide track configuration with an overall length of 37-3/8 inches, the 6311 is designed for openings up to 48 inches wide and 200 lbs, making it well suited for high-traffic institutional, healthcare, educational, and municipal facilities requiring compliant, hands-free entry. This listing is for the pull-side model (6311) — not the universal 6341 or the push-side 6331. Supplied in Finish 689 (Aluminum). Norton is a product of Norton-Rixson / ASSA ABLOY. Lead time is typically 1–3 weeks.
Key Features & Benefits
- Pull-Side Configuration: The 6311 installs on the pull (egress) side of the door, providing smooth, low-energy automatic opening for occupants approaching from outside or from the secure side of a controlled opening.
- Rigid Arm & Slide Track: The rigid arm and slide track design provides reliable, consistent door control and is compatible with a wide range of commercial door frame conditions.
- 37-3/8 In. Overall Length: Compact form factor integrates cleanly on standard commercial door frames without requiring extensive header modification.
- Supports Doors Up to 200 lb / 48 In. Wide: Handles heavy commercial-duty door weights and widths common in institutional and healthcare settings.
- Low Energy Operation: Low energy operators reduce the force required to open a door, supporting accessibility and ADA-compliant entry solutions without the full-power requirements of high-energy automatic operators.
- Finish 689 – Aluminum: Durable factory-applied aluminum finish coordinates with contemporary commercial hardware and architectural door frames.
- 2-Year Warranty: Norton's 6300 Series low energy operators are backed by a 2-year manufacturer's warranty.
Typical Applications
- Healthcare facilities and hospitals requiring hands-free, accessible entry
- Educational buildings, universities, and K–12 campuses
- Government and municipal office entrances
- Retail and commercial lobbies with high pedestrian traffic
- Any ADA-accessible opening requiring low energy automatic door operation on the pull side
Technical Details
| Feature | Specification |
| Brand | Norton (Norton-Rixson / ASSA ABLOY) |
| Model Number | 6311 |
| Series | 6300 Series Low Energy Operator |
| Door Side | Pull Side |
| Arm Type | Rigid Arm and Slide Track |
| Overall Length | 37-3/8 in. |
| Maximum Door Width | 48 in. |
| Maximum Door Weight | 200 lb |
| Finish | 689 (Aluminum) |
| Warranty | 2-Year Manufacturer's Warranty |
Note: DoorwaysPlus can also quote comparable low energy operator alternatives from preferred commercial lines. Contact our team for specifications and pricing on equivalent products.
Ordering and Lead Time
Lead Time: 1-3 weeks
| Brand | Norton |
| General - US Finishes | 689 - Spray Alumimun |
| Series | Norton - 6300 Series |
| Operator Mounting | Pull Side |
| Door Opening Width | 48 Inches, 36 Inches |
