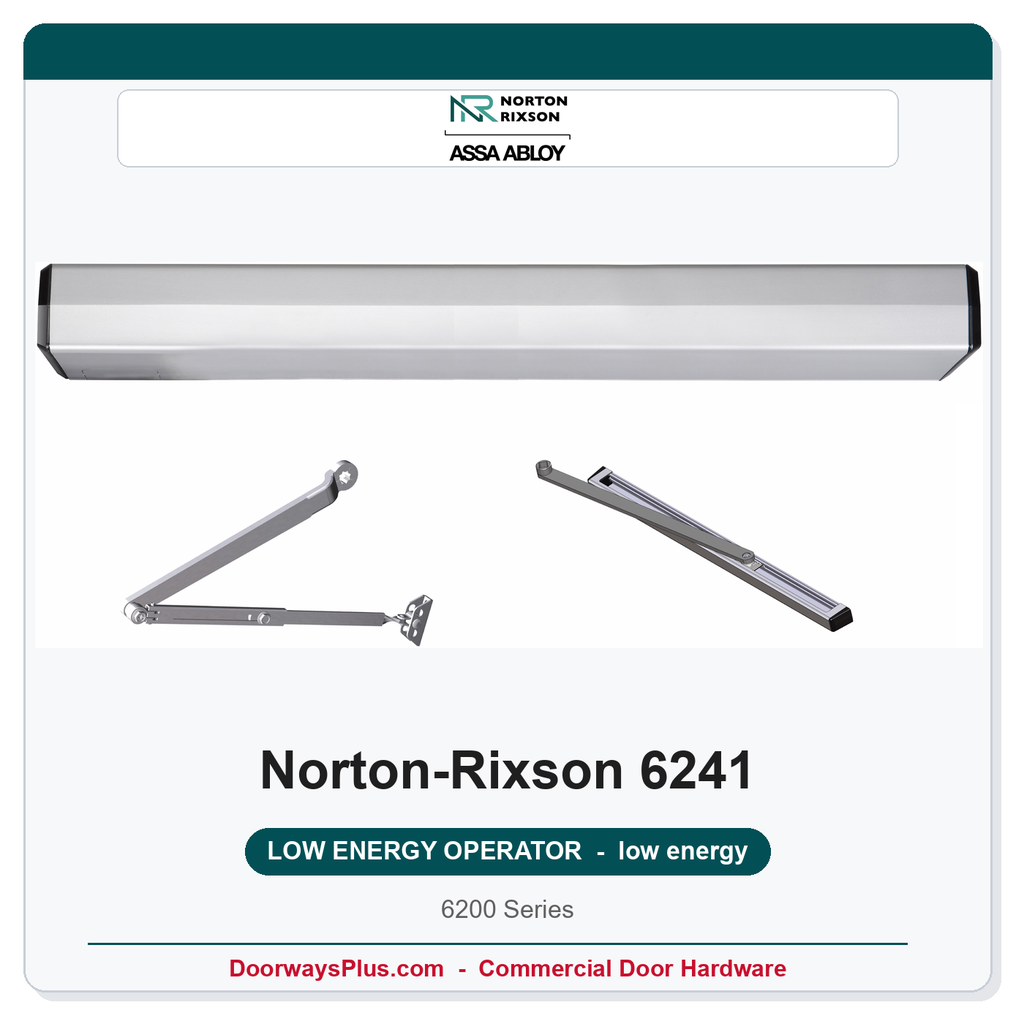

Norton 6241 Low Energy Door Operator — 6200 Series Universal Push & Pull
The Norton 6241 is a commercial-grade, electromechanical low energy door operator from the Norton-Rixson / ASSA ABLOY 6200 Series. Designed as a true universal unit, the 6241 accommodates both push and pull applications from a single operator platform, reducing the need for separate push-side and pull-side units. It ships complete with a standard duty arm and slide track as well as a low ceiling double lever arm, making it adaptable to a wide variety of commercial door openings and architectural conditions. Finished in 689 (Aluminum), this operator suits aluminum storefront, hollow metal, and wood door assemblies commonly found in retail, healthcare, education, and institutional facilities.
Key Features & Benefits
- Universal Push and Pull: A single unit serves both push- and pull-side mounting configurations, simplifying specification and inventory.

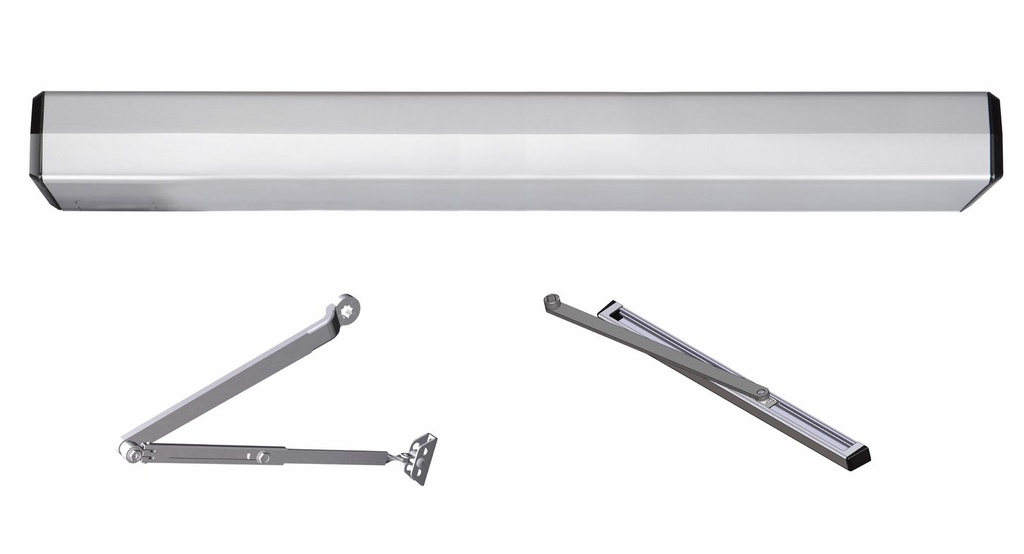

- Dual Arm Package Included: Comes with a standard duty arm and slide track plus a low ceiling double lever arm, covering typical and restricted-clearance installations without additional arm purchases.
- Electromechanical Operation: Low energy electromechanical drive provides controlled, ADA-accessible door opening speeds suitable for pedestrian traffic in commercial and institutional settings.
- Generous Door Capacity: Rated for doors up to 200 lb and 48 inches wide, covering the majority of standard commercial door openings.
- 2-Year Warranty: Norton backs the 6200 Series low energy operators with a 2-year manufacturer warranty, consistent across the 4500, 5200, 5700, 5800, 6200, and 6300 low-energy operator families.
- Finish 689 — Aluminum: The 689 aluminum finish coordinates with standard commercial aluminum door frames and storefront systems for a clean, professional appearance.
- 1 Business Day Lead Time: Stocked for fast fulfillment to keep projects on schedule.
Typical Applications
- ADA-accessible entrances in commercial office buildings, retail, and hospitality
- Healthcare facility corridors and patient room entrances
- Education and institutional buildings requiring low energy automatic access
- Government and municipal facilities with accessibility compliance requirements
- Any opening requiring controlled, low energy swing door operation on push or pull side
Technical Details
| Feature | Details |
|---|---|
| Brand | Norton (Norton-Rixson / ASSA ABLOY) |
| Model Number | 6241 |
| Series | 6200 Series Low Energy Operator |
| Operator Type | Low Energy Electromechanical |
| Application | Universal — Push and Pull |
| Arm Configuration | Standard Duty Arm & Slide Track; Low Ceiling Double Lever Arm |
| Maximum Door Weight | 200 lb |
| Maximum Door Width | 48 in |
| Finish | 689 (Aluminum) |
| Warranty | 2-Year Manufacturer Warranty |
| Lead Time | 1 Business Day |
DoorwaysPlus also carries comparable low energy operators from preferred lines including Hager, Norton alternatives, and other commercial operator manufacturers. Contact our team for a competitive quote on equivalent specifications.
| Brand | Norton |
| General - US Finishes | 689 - Spray Alumimun |
| Series | Norton - 6200 Series |
| Operator Mounting | Push and Pull |
| Door Opening Width | 48 Inches, 36 Inches |
