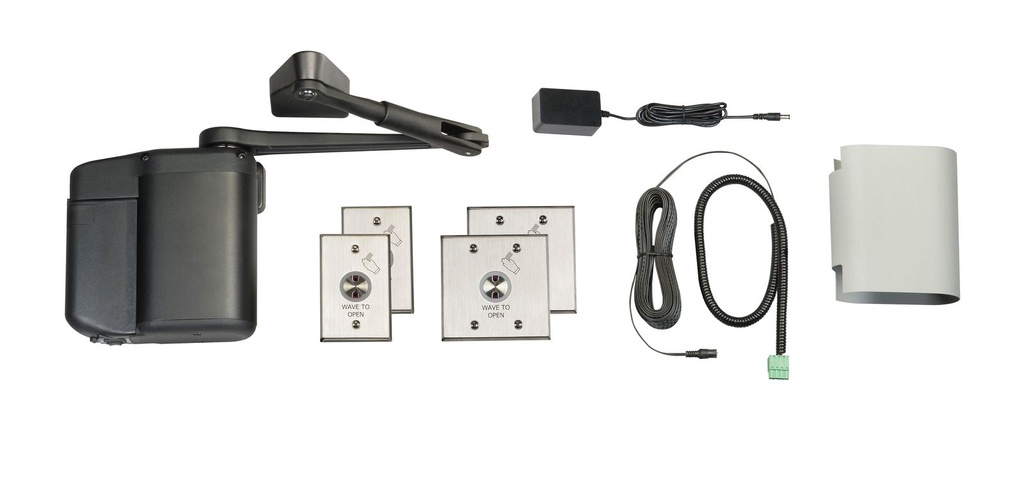

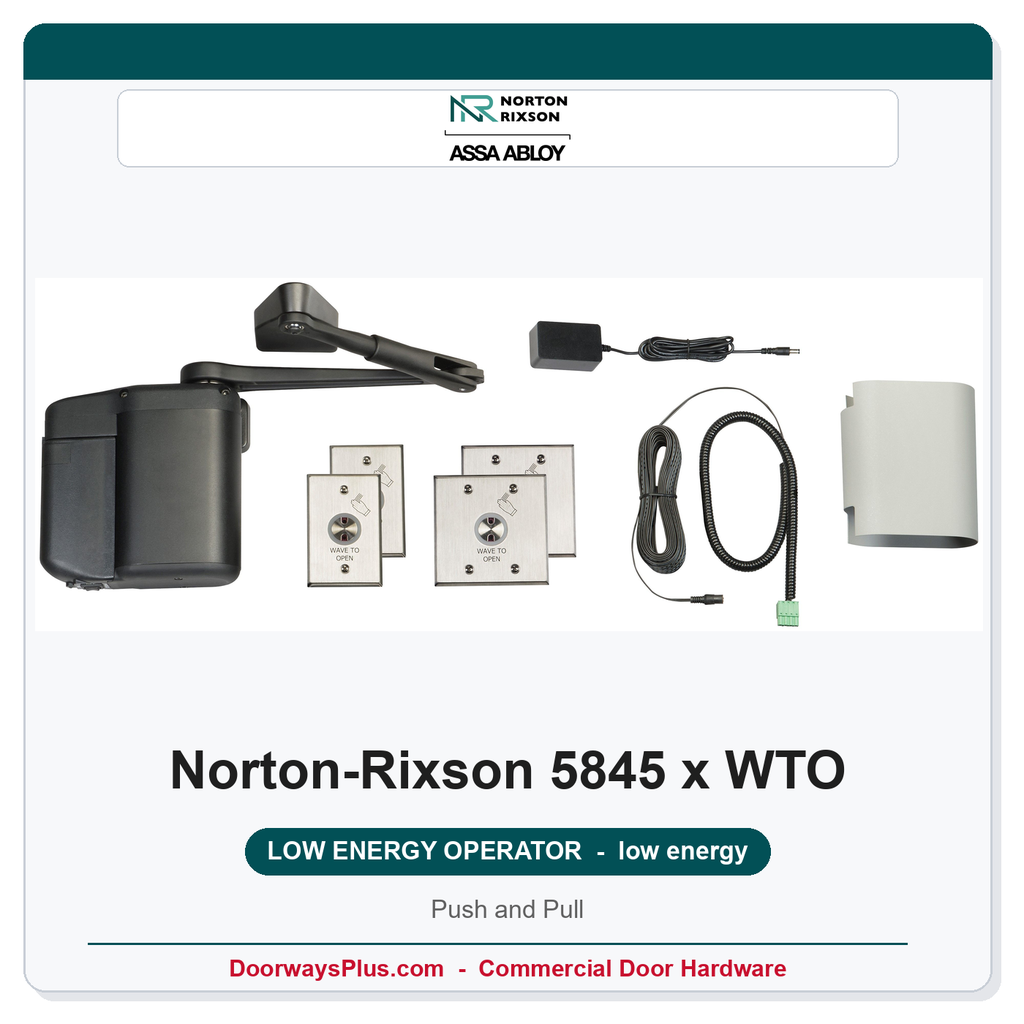

Norton 5845 x WTO Low Energy Operator — Wave to Open, Push & Pull
The Norton 5845 x WTO is a complete, fully integrated low energy automatic door operator from Norton's 5800 Series ADA EZ Pro platform. Designed for both push and pull applications in a single package, this unit adds Wave to Open (WTO) touchless activation — allowing users to trigger the door without physical contact. Whether retrofitting an existing commercial opening or specifying new construction, the 5845 x WTO delivers hands-free, ADA-compliant accessibility in one complete assembly. Finish included: 693T black textured with 689 aluminum covers.
Key Features & Benefits
- Push and Pull in One Package: The 5845 configuration handles both swing directions from a single operator unit, simplifying specification and reducing installation complexity.
- Wave to Open (WTO) Activation: Contactless motion-sensor triggering lets users activate the door with a hand wave — ideal for high-traffic, hygiene-sensitive, or accessibility-focused entrances. This listing is WTO only (not SQPB or NPB).
- 5800 Series ADA EZ Pro Complete: Part of Norton's purpose-built ADA operator series, the 5800 platform is engineered to meet low-energy operator requirements for accessible entrances in commercial applications.
- Handles Heavy, Wide Doors: Rated for doors up to 48 inches wide and 250 lb — suitable for heavy commercial wood, hollow metal, and aluminum doors.
- Finish Included — No Extra Purchase: Ships with 693T black textured operator and 689 color-matched covers, providing a clean, professional appearance right out of the box.
- 2-Year Warranty: Norton covers the 5800 Series low energy operators with a 2-year manufacturer's warranty, consistent with their 4500/5200/5700/5800/6200/6300 operator lines.
- Lead Time: Typically ships within 3–4 weeks from order placement.
Typical Applications
- ADA-compliant accessible entrances in schools, hospitals, and government buildings
- Retail and office main entry doors requiring touchless activation
- Healthcare facilities where hands-free operation reduces cross-contamination risk
- High-traffic commercial corridors with push/pull door configurations
- Retrofit upgrades on existing manual commercial doors to meet accessibility codes
Technical Details
| Feature | Details |
|---|---|
| Brand | Norton (Norton-Rixson / ASSA ABLOY) |
| Model Number | 5845 x WTO |
| Series | 5800 Series ADA EZ Pro |
| Operator Type | Low Energy Automatic Door Operator |
| Application | Push and Pull (single complete package) |
| Activation Method | Wave to Open (WTO) — touchless motion sensor |
| Maximum Door Width | 48 inches |
| Maximum Door Weight | 250 lb |
| Finish | 693T Black Textured — 689 covers included |
| Warranty | 2-year manufacturer warranty |
| Lead Time | 3–4 Weeks |
For architects and specifiers comparing low energy operator options, DoorwaysPlus can also quote comparable alternatives from preferred lines such as Accentra (formerly Yale), Hager, or Norton depending on project requirements. Contact our commercial hardware team for side-by-side specs and pricing.
| Brand | Norton |
| General - US Finishes | 693T / 689 covers included |
| Series | Norton - 5800 Series |
| Operator Mounting | Push and Pull |
| Door Opening Width | 48 Inches, 36 Inches |
