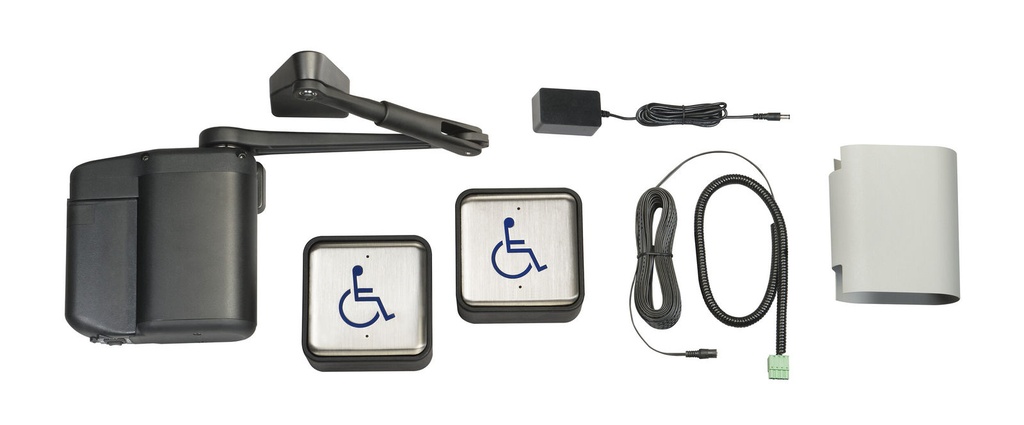

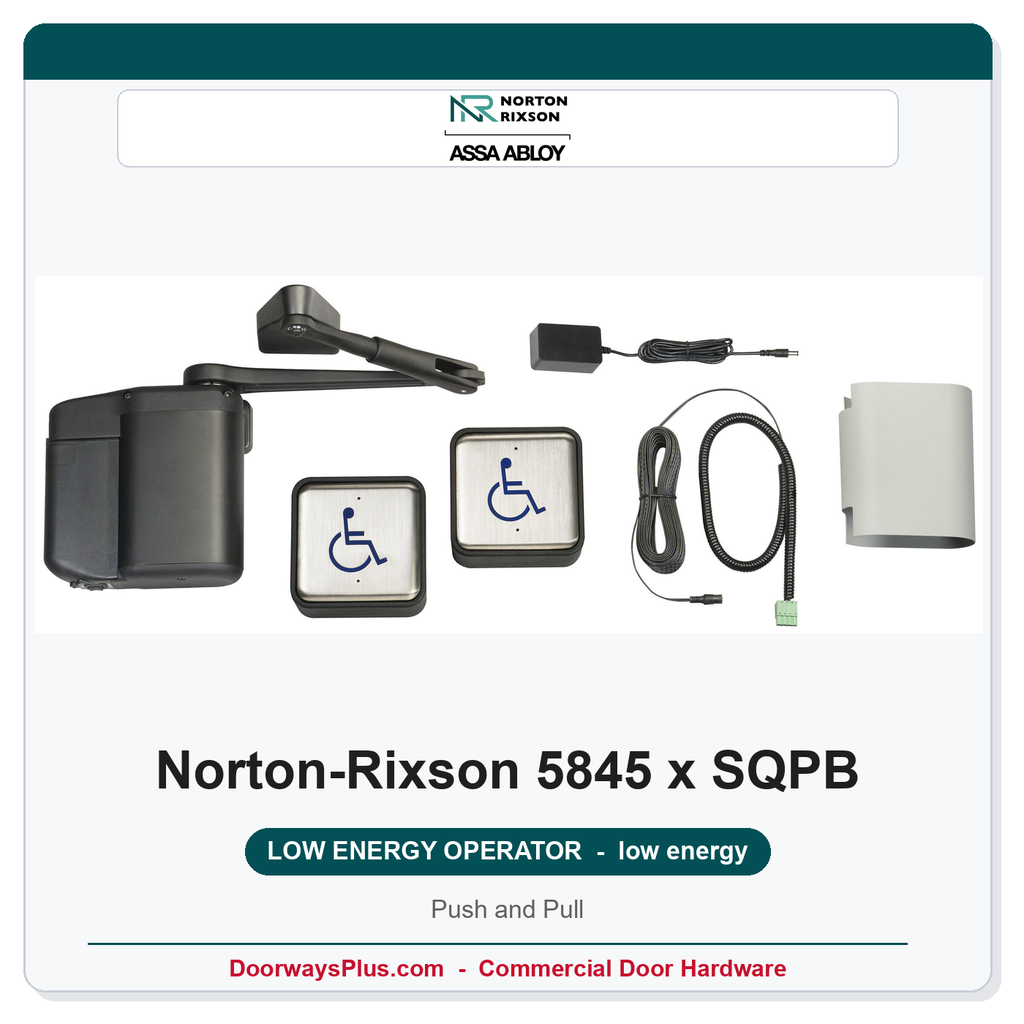

Norton 5845 x SQPB Low Energy Door Operator with Square Push Buttons — Push & Pull Complete Package

The Norton 5845 x SQPB is a commercial-grade, ADA-compliant low-energy door operator from the 5800 Series ADA EZ Pro Complete line by Norton (Norton-Rixson / ASSA ABLOY). This is the Pro Complete package — model 5845 bundles both the PRO and PRO PLUS configurations into a single stocked unit, covering both push-side and pull-side operation. The included SQPB square wall switches provide a clean, professional activation point suited to institutional, commercial, and ADA-accessible entryways. If you need wave-to-open activation, see the 5845 x WTO; for narrow push buttons, see the 5845 x NPB. This listing is specifically for the square push button (SQPB) variant.

Key Features & Benefits

• True Push & Pull in One Package: The 5845 Pro Complete designation means both push-side and pull-side mounting hardware ship together — no separate PRO PLUS order required.
• Square Push Button Activation (SQPB): Includes square wall-mount push buttons for accessible, code-compliant door activation on both sides of the door.
• ADA1015P Activation Kit Included: Ships with the ADA1015P kit, providing the hardware needed for ADA-compliant low-energy operation right out of the box.
• Dual-Finish Covers: Includes cover plates in both 693T (black) and 689 (aluminum) finishes, allowing the installer to match existing door hardware aesthetics.
• 24VDC Plug-In Transformer Kit: Equipped with a 24VDC plug-in transformer for continuous automatic operation — no separate power supply sourcing required for standard installations.
• Installs Like a Manual Door Closer: The 5800 Series is engineered for familiar installation geometry, reducing learning curve for door hardware installers already experienced with surface-mounted closers.
• Universal Hand Compatibility: Suitable for right-hand and left-hand doors; mounting hardware accommodates virtually any standard commercial door and frame configuration.
• 2-Year Warranty: Norton's 5800 Series low-energy operators are backed by a 2-year manufacturer warranty.
• 1 Business Day Lead Time: In-stock and ready to ship within one business day.

Applications

• ADA-accessible entrances in offices, schools, healthcare facilities, and government buildings
• High-traffic commercial doors requiring low-energy automatic operation
• Retrofit installations where a surface-mounted low-energy operator replaces a manual closer
• Openings requiring compliant push-button activation on both approach sides

Technical Details
