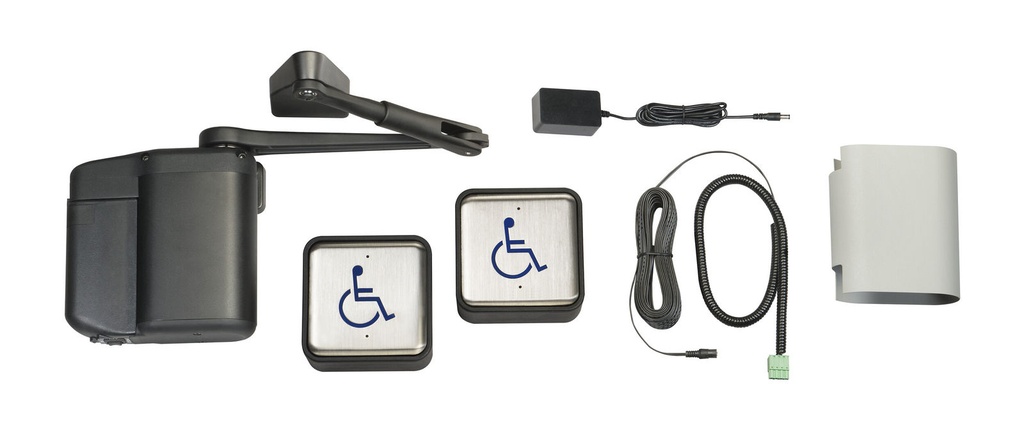

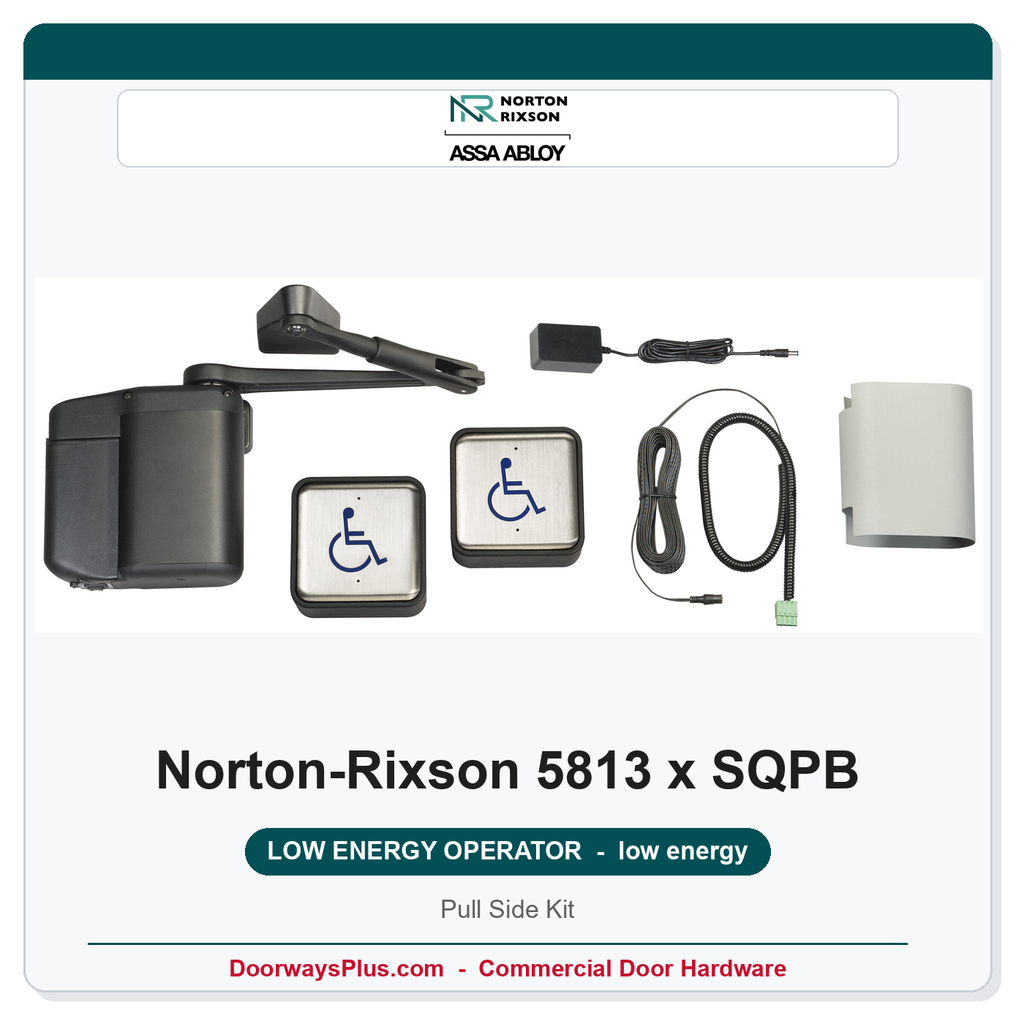

Norton 5813 x SQPB Low Energy Operator — Pull Side Kit with Square Push Buttons
The Norton 5813 x SQPB is a 5800 Series PRO low energy automatic door operator configured for pull-side installation and supplied with the SQPB (Square Push Button) kit — including the ADA1015P hardware kit and square actuator switches. Part of Norton-Rixson's (ASSA ABLOY) 5800 Series PRO platform, this operator is engineered for commercial and institutional openings where accessible, low-energy automatic operation is required. Finishes included with this listing are 693T and 689 covers, providing a clean, architectural appearance suited to both interior and exterior applications.
Key Features & Benefits
- Pull-Side Configuration: Factory-set for pull-side mounting, simplifying installation on standard commercial single doors without additional field modification.
- Square Push Button (SQPB) Actuator Kit: Includes the ADA1015P hardware kit with square push-to-activate switches — a popular, modern aesthetic for healthcare, education, and public-access facilities.
- 5800 Series PRO Platform: Norton's 5800 Series PRO low energy operators are designed for light commercial through heavy institutional traffic, delivering controlled, compliant door opening cycles.
- ADA / Accessibility Ready: Low energy operation mode supports accessible entry requirements under ADA guidelines when properly installed with compliant actuators.
- Dual-Finish Covers Included: Both 693T and 689 finish covers ship with the unit, giving installers flexibility to match existing hardware finishes on-site.
- 2-Year Warranty: Norton provides a 2-year warranty on 5800 Series low energy operators, reflecting the brand's commitment to product reliability in commercial applications.
- Not the 5845: This is the 5813 model — confirm your project schedule and mounting requirements before ordering to ensure correct series selection.
Typical Applications
- Healthcare facilities, hospitals, and medical offices requiring hands-free entry
- Educational buildings and K-12 schools
- Government and municipal buildings
- Retail and commercial office entrances
- Any ADA-accessible opening requiring low energy automatic operation
Technical Details
| Feature | Details |
|---|---|
| Brand | Norton (Norton-Rixson / ASSA ABLOY) |
| Model Number | 5813 x SQPB |
| Series | 5800 Series PRO Low Energy Operator |
| Kit Type | Pull Side Kit with Square Push Buttons (SQPB) |
| Actuator Hardware | ADA1015P Hardware Kit (included) |
| Finishes Included | 693T / 689 covers included |
| Mounting Side | Pull Side |
| Warranty | 2-Year (5800 Series low energy operators) |
| Lead Time | 3–4 Weeks |
Note: DoorwaysPlus can also quote comparable low energy operator solutions from preferred commercial hardware lines — contact our team for specifications and availability on alternative configurations.
| Brand | Norton |
| General - US Finishes | 693T / 689 covers included |
| Series | Norton - 5800 Series |
| Operator Mounting | Pull Side |
| Door Opening Width | 48 Inches, 36 Inches |
