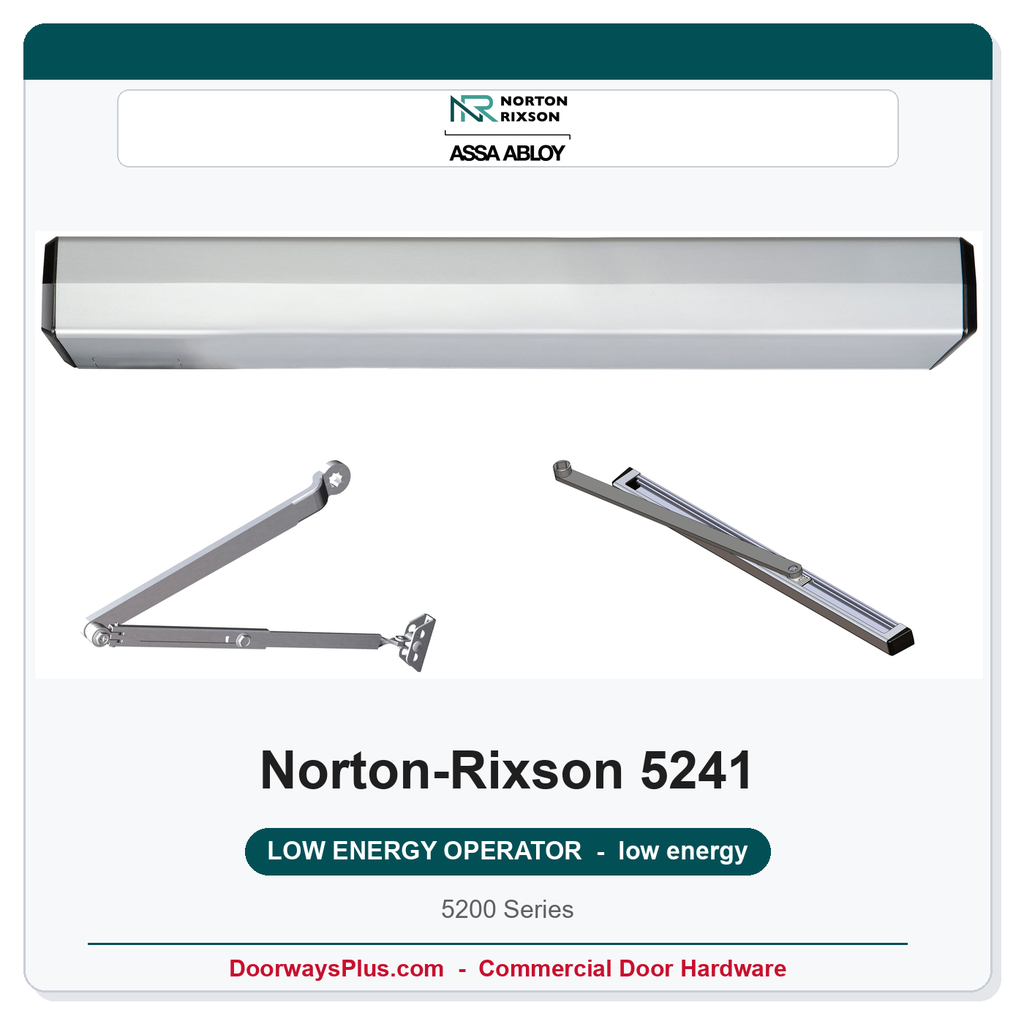

Norton 5241 Low Energy Door Operator — 5200 Series Universal Push & Pull
The Norton 5241 is a low energy automatic door operator from Norton's 5200 Series, designed for commercial applications where hands-free or assisted door operation is required. This universal unit accommodates both push and pull door configurations on a single platform, making it one of the more versatile low-energy operators in its class. The 5241 ships in Finish 689 (Aluminum) and is backed by Norton's 2-year warranty covering the 5200 Series low-energy operator line.
Key Features & Benefits
- Universal Push and Pull Operation: A single operator handles both push-side and pull-side mounting, reducing the need for separate units and simplifying procurement for multi-door projects.

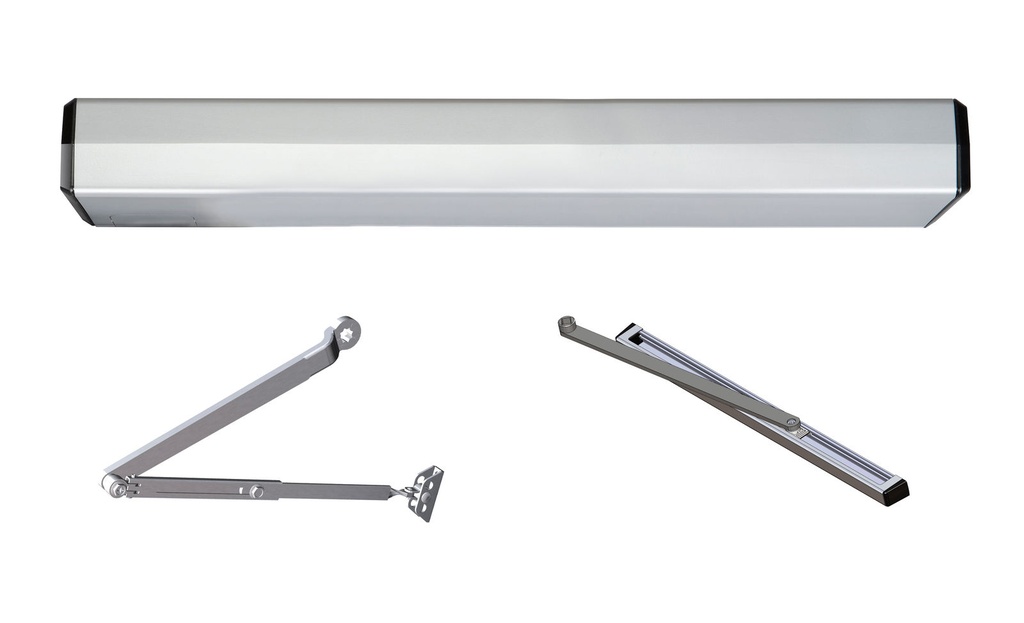

- Included Arm Package: Comes with a standard duty arm and slide track, plus a low ceiling double lever arm — providing installation flexibility where overhead clearance is limited.
- Maximum Door Capacity: Rated for doors up to 200 lb and 48 inches wide, suitable for a broad range of standard commercial door sizes.
- Low Energy Classification: Operates as a low energy operator, meaning the door moves at a controlled, reduced speed in compliance with accessibility-focused design requirements — appropriate for ADA-accessible entryways where a fully automatic (high-energy) operator is not required or permitted.
- 2-Year Warranty: Norton's warranty coverage applies to the 5200 Series, providing documented protection on parts and workmanship.
- Finish 689 — Aluminum: A durable, commercially appropriate finish that coordinates well with aluminum door frames and storefront systems commonly found in commercial and institutional buildings.
- 1 Business Day Lead Time: Available for fast fulfillment — critical for contractors and facility managers working against tight schedules.
Typical Applications
The Norton 5241 is well-suited for:
- ADA-accessible entrances in offices, schools, healthcare facilities, and government buildings
- Interior and exterior commercial doors requiring low energy automatic operation
- Renovation and retrofit projects where a universal operator simplifies replacement
- Locations with limited overhead clearance where the low ceiling double lever arm is needed
Comparable Alternatives
DoorwaysPlus can also quote low energy door operators from preferred lines including Accentra (formerly Yale), Hager, Norton, and Corbin Russwin — contact our team for a side-by-side comparison or project-specific recommendation.
Technical Details
| Feature | Details |
|---|---|
| Brand | Norton (Norton-Rixson / ASSA ABLOY) |
| Model Number | 5241 |
| Series | 5200 Series |
| Operator Type | Low Energy Door Operator |
| Configuration | Universal — Push and Pull |
| Included Arms | Standard duty arm & slide track; Low ceiling double lever arm |
| Maximum Door Size | 200 lb / 48 in wide |
| Finish | 689 (Aluminum) |
| Warranty | 2-Year (5200 Series Low Energy Operators) |
| Lead Time | 1 Business Day |
| Brand | Norton |
| General - US Finishes | 689 - Spray Alumimun |
| Series | Norton - 5200 Series |
| Operator Mounting | Push and Pull |
| Door Opening Width | 48 Inches, 36 Inches |
