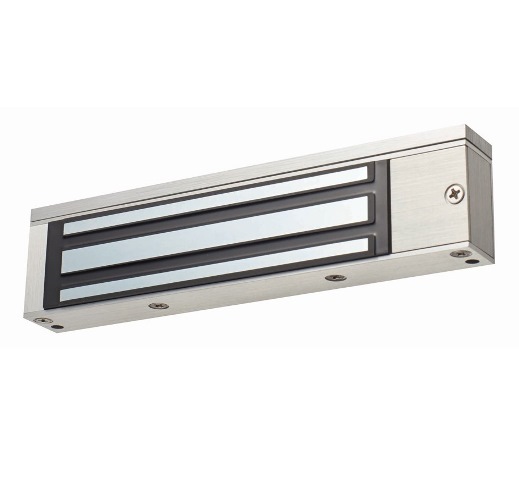

Alarm Controls 300S Magnetic Lock — 300 lb Holding Force, 12/24 VDC, Single Door, US28 Clear Anodized

Note: This item is discontinued. Limited stock available (2 units on hand). Contact us for comparable alternatives from preferred lines.

The Alarm Controls 300S is a compact, low-profile electromagnetic lock (maglock) designed for single-door access control applications including cabinets, showcases, and interior doors. Operating on 12 or 24 VDC (jumper selectable), the 300S delivers a 300 lb holding force with minimal current draw, making it an efficient choice for low-voltage access control systems. The US28 clear anodized finish provides a clean, corrosion-resistant appearance suited to interior environments.

Built-in arc suppression protects connected control circuitry, and the instant release with no hysteresis ensures reliable, responsive unlocking when power is interrupted. Non-aluminum components are plated for corrosion resistance. The 300S is backed by a lifetime warranty from Alarm Controls.

Key Features

• 300 lb holding force — suitable for cabinet, showcase, and light interior door applications
• 12 or 24 VDC operation — jumper selectable for flexible integration with existing power supplies
• Low current draw — 250 mA @ 12 VDC / 130 mA @ 24 VDC reduces power supply load
• Built-in arc suppression — protects control circuits and extends relay life
• Instant release, no hysteresis — door releases immediately upon power interruption
• Corrosion-resistant construction — non-aluminum parts plated to resist environmental degradation
• US28 clear anodized finish
• Lifetime warranty

Typical Applications

• Display cases and showcases requiring controlled access
• Interior cabinet doors in commercial, retail, or institutional settings
• Low-traffic interior single doors integrated into access control systems
• Supplemental electromagnetic locking where minimal footprint is required

Access Control Code Considerations

When integrating any electromagnetic lock into an egress path, applicable building codes (IBC, NFPA 101) require that the locking system release upon: loss of power to the lock, activation of the fire alarm system, and — where required — activation of a manual push-button release device. For doors in the means of egress, consult your Authority Having Jurisdiction (AHJ) and a qualified access control professional to confirm compliance with IBC 1010.1.9.9 or NFPA 101 §7.2.1.5.6 as applicable. Systems must be listed per ANSI/UL 294 where required by code.

Technical Details

For an active, in-production single-door electromagnetic lock with similar or greater holding force, contact us for a quote on comparable maglocks from preferred lines offering current manufacturing support and parts availability.
