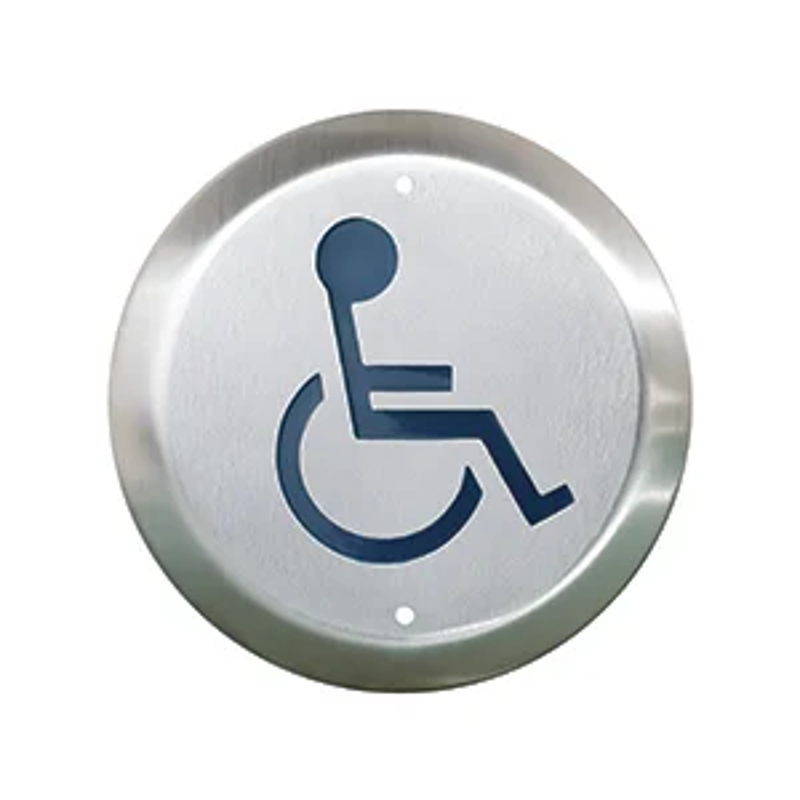

Hager 8228-01H/00 — 4.5" Round Hardwired ADA Push Plate Actuator, US32D
The Hager 8228-01H/00 is a 4.5-inch round, hardwired wheelchair actuator push plate designed to activate low-energy automatic door operators. Finished in US32D (satin stainless) with a blue International Symbol of Access wheelchair / Push to Open graphic, this actuator meets ADA accessibility requirements for powered door openings in commercial, institutional, and healthcare facilities. It is compatible with Hager 8300-series low-energy power operators and is suited for any hardwired actuator installation where a durable, code-compliant push plate is required.
Institutional Grade Features & Benefits
- ADA-Compliant Activation: Wheelchair actuator graphics and low-force push-plate design support accessible route requirements per ADA and ANSI A117.1 standards for powered door openings.
- Hardwired Connection: Permanent hardwired installation provides a reliable, maintenance-friendly signal connection to the door operator — no battery concerns or wireless signal interference.
- 4.5" Round Profile: Large-format round plate offers a prominent, easy-to-locate target for users with mobility limitations, consistent with accessible hardware best practices.
- US32D Satin Stainless Finish: Satin stainless steel (US32D) with blue icon coordinates with stainless-finish door hardware and resists corrosion in high-traffic institutional environments.
- Hager 8300-Series Compatibility: Engineered for use with Hager 8300-series low-energy power operators, simplifying specification and procurement for complete Hager-powered opening packages.
- Commercial & Institutional Durability: Built to withstand heavy-use cycles in schools, hospitals, government buildings, and public facilities where actuators are activated thousands of times per year.
Applications
The Hager 8228-01H/00 push plate actuator is appropriate for any commercial or institutional powered door opening requiring a hardwired ADA activation device, including:
- Healthcare facilities (hospitals, clinics, nursing homes)
- Educational buildings (K–12, universities)
- Government and municipal buildings
- Retail and hospitality entries on accessible routes
- Any ADA-mandated powered opening with a Hager 8300-series operator
Technical Details
| Feature | Details |
|---|---|
| Model Number | Hager 8228-01H/00 |
| Part Type | Actuator Switch — Hardwired Push Plate |
| Plate Size / Shape | 4.5" Round |
| Graphics | Wheelchair / Push to Open (ADA) |
| Finish / Color | US32D / Blue icon |
| Connection Type | Hardwired |
| Operator Compatibility | Hager 8300-Series Low-Energy Power Operators |
| Warranty | 1-Year Manufacturer Warranty |
| Brand | Hager |
| Part Type | Actuator Switch |
