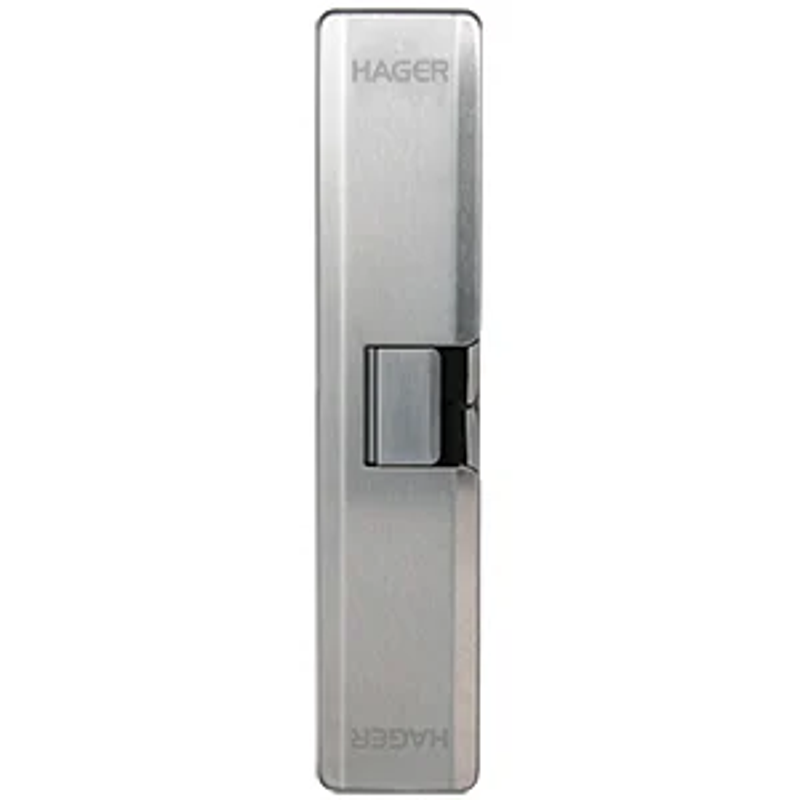

Hager 2945 Universal Rim Strike – Electric Release for 4501 Rim Exit Device (BLK)
The Hager 2945 Universal Rim Strike is a purpose-built electric rim strike engineered to pair with the Hager 4501 rim exit device, converting a standard rim exit opening into an access-controlled egress point. Introduced in December 2024 as Hager's Universal Rim Strike, the 2945 enables electric release of the rim exit latch — ideal for commercial and institutional facilities that require credential-based door access without sacrificing panic-hardware egress compliance. A filler plate is included for a clean, finished installation. Finish: BLK (Black).
Facilities seeking rim exit device electric strike solutions will find the Hager 2945 a direct, hardware-matched complement to the 4501 series — no adapters or field modifications required. Comparable rim exit device categories include Sargent 8800 series rim exit devices and other commercial rim exit hardware, but the 2945 is configured specifically for the Hager 4501 rim device geometry.
Key Features & Benefits
- Purpose-Built 4501 Compatibility: Designed and dimensioned exclusively for the Hager 4501 rim exit device — eliminates guesswork on fit and function.
- Universal Rim Strike Design: Hager's updated 2945 designation reflects its universal rim strike architecture, added to the product line December 2024.
- Electric Latch Release: Provides access-controlled electric release of the rim exit latch, enabling integration with access control systems for credential-based entry.
- Filler Plate Included: Ships with the required filler for a complete, clean installation without additional sourcing.
- Black (BLK) Finish: Coordinates with black-finished exit hardware and door frames in modern commercial interiors. Per Hager's August 2025 catalog update, BLK is classified under BLK – Black as a standard finish designation.
- Commercial & Institutional Grade: Suited for schools, office buildings, healthcare facilities, and other commercial openings requiring controlled access at rim exit device doors.
Technical Details
| Feature | Details |
| Model Number | Hager 2945 |
| Product Name | Universal Rim Strike |
| Part Type | Electric Rim Strike |
| Device Compatibility | Hager 4501 Rim Exit Device |
| Includes | Filler Plate |
| Finish | BLK – Black |
| Introduced | December 2024 (Hager catalog addition) |
| Application | Commercial / Institutional, Interior Access-Controlled Rim Exit Openings |
| Brand | Hager |
Typical Applications
The Hager 2945 is the correct electric strike choice for any opening equipped with a Hager 4501 rim exit device where access control integration is required. Common deployment scenarios include:
- Office building stairwell and corridor doors with card-reader access
- K–12 and higher-education facilities requiring controlled re-entry at rim exit device doors
- Healthcare and institutional buildings integrating electric hardware into access control systems
- Retrofit projects converting manual rim exit openings to electrified, credential-based access
For facilities specifying alternative rim exit device brands — such as Sargent 8800 series rim exit devices or other commercial rim exit hardware — DoorwaysPlus can quote compatible electric strike solutions from Hager and other preferred lines to match your opening requirements.
| Brand | Hager |
| Finish with BHMA code | BLK - Black |
| Fail Safe/Fail Secure | Field Selectable |
| Fire Rated | Non-Rated |
| Faceplate Options | Surface Mount |
| Voltage | 12 VDC, 24 VDC |
| Electric Strike Lock Type Use | SVR or Rim Exit Device |
| Part Type | Electric Strike |
