Hager 45PT Thumb Piece Pull Plate Exit Trim | Entrance Function 05 | 4500 Rim Only | US32D Satin Stainless | Less Cylinder
Lead Time: 1-5 Business Days

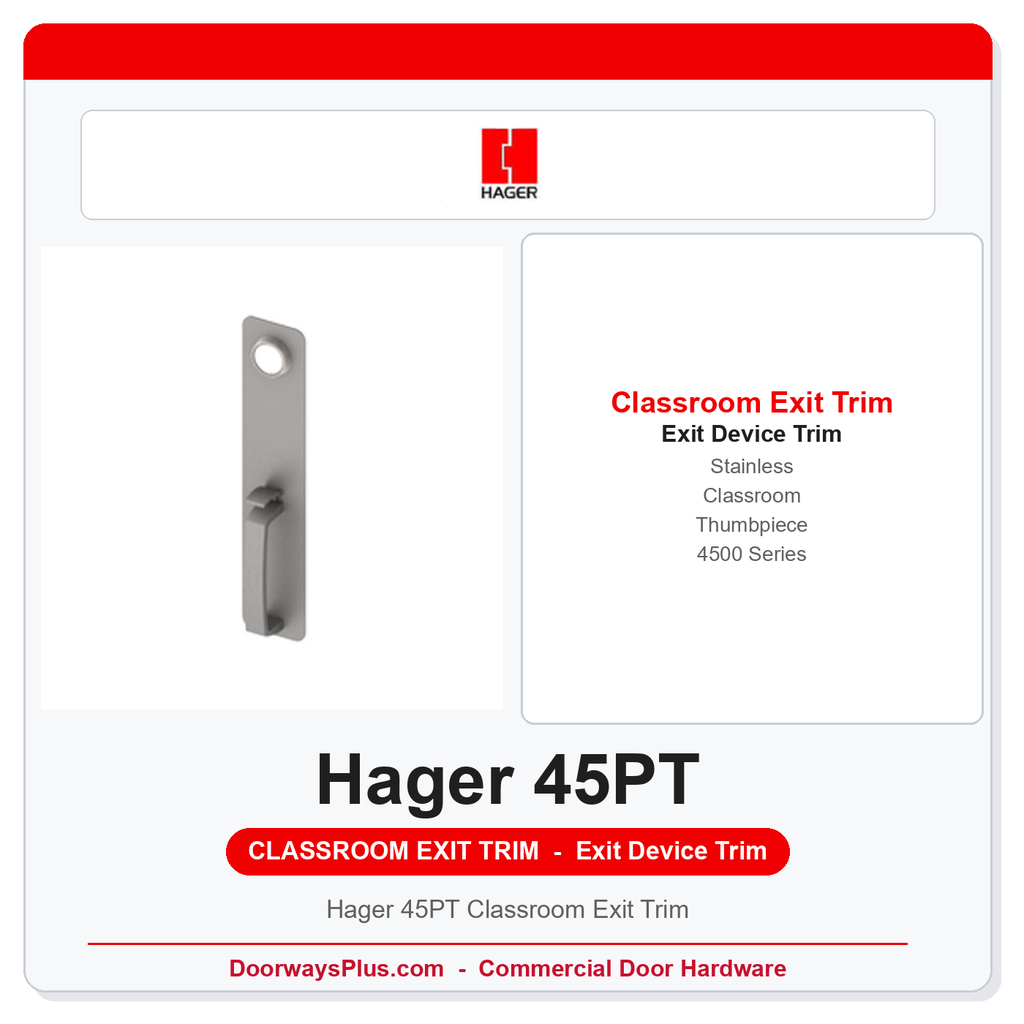

Hager 45PT Exit Trim - Thumb Piece Pull Plate (Less Mortise Cylinder)
Institutional Security and Access Management
The Hager 45PT is engineered for high-use environments where keyed access control is required without the footprint of a traditional lever. It is a premier choice for school entrances, hospital corridors, and municipal buildings. By utilizing a thumb piece instead of a lever, the trim offers a lower profile that is more resistant to "hanging" or "climbing" vandalism. For facility managers, this trim provides a durable, keyed entrance solution that integrates seamlessly into a master key system.
Heavy-Duty Construction and Secure Mounting
Technical Specifications
| Feature | Specification |
| Series | Hager 4500 Series Trim |
| Function | Thumb Piece Pull Plate (45PT) |
| ANSI Function | 05 Entrance (Key Locks/Unlocks Thumb Piece) |
| Escutcheon Dimensions | 3" x 14-5/8" (76 mm x 372 mm) |
| Projection | 1-3/4" (45 mm) |
| Pull Center to Center | 5-1/2" (140 mm) |
| Cylinder Requirement | Mortise Cylinder, 1-1/8" or 1-3/8" with standard cam (sold separately) |
| Compatibility | Hager 4501 RIM, 4501-FR, 4501 RIM exit device only (not for vertical rod devices) |
| Handing | Non-Handed |
| Fasteners | Thru Bolts (Supplied Standard) |
Standards, Compliance & Installation
- Durability: Heavy-duty construction designed for high-abuse institutional settings.
- Vandal Resistance: The fixed pull and protected cylinder prep minimize points of mechanical failure and tampering.
- Accessibility: The thumb piece is designed for ease of use, meeting ADA requirements for accessible hardware.
- Secure Attachment: Utilizing thru bolts (sex bolts) ensures the trim remains perfectly aligned with the interior device, preventing hardware fatigue and door damage.
Key Product Highlights
- Flexible Access Control: Allows staff to keep the door unlocked for high-traffic periods or secured for restricted access.
- Industrial Longevity: Tested to match the extreme performance standards of the Hager 4500 panic bar line.
- Professional Finishes: Available in Satin Stainless Steel (US32D).
- Universal Handing: Non-handed design for left- or right-hand doors.
| Brand | Hager |
| Series | Hager - 4500 Series |
| Exit Device Trim Function | Classroom |
| Trim Design | Grip Pull |
| Door Handing | Field Reversible |
| Finish with BHMA code | 630 - US32D Satin Stainless |
