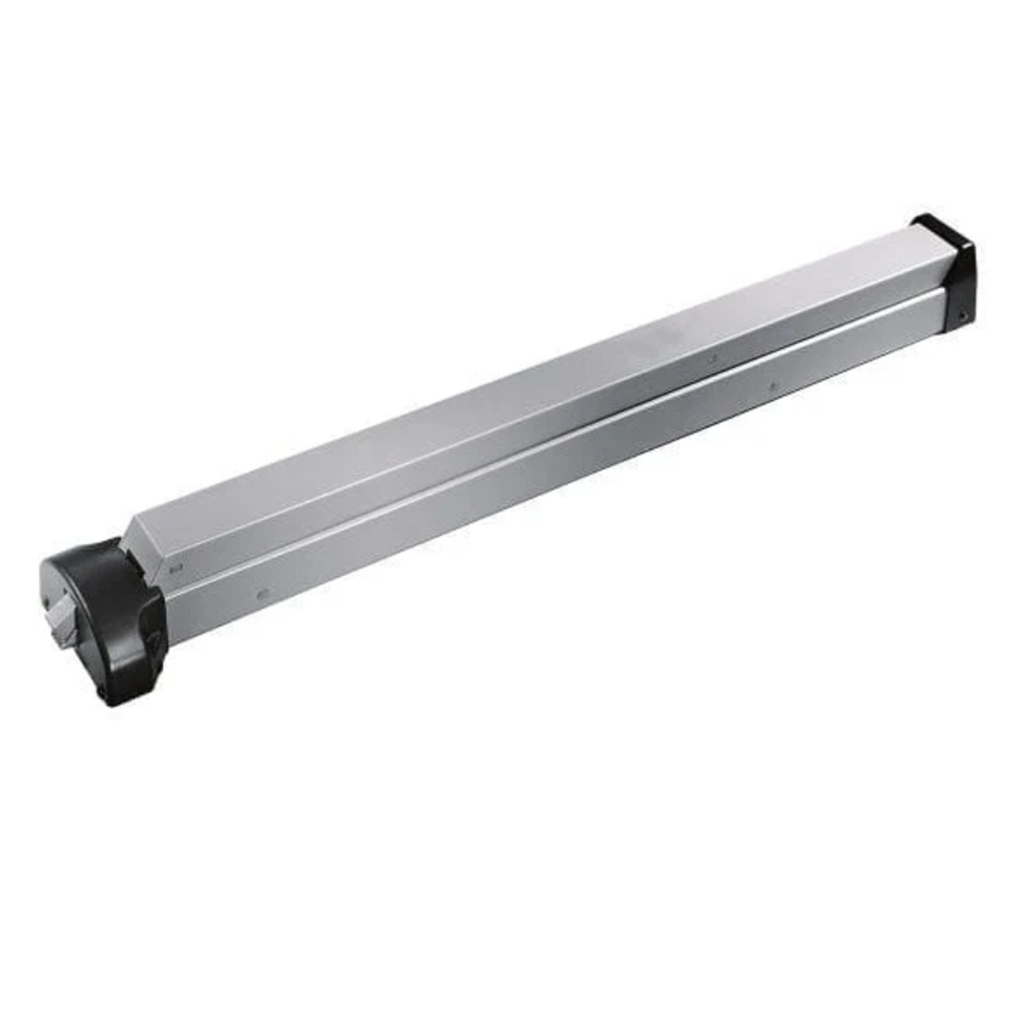

Dorma F8300B Fire-Rated Rim Exit Device for 36" Wide Door
The Dorma F8300B is a Grade 1 fire-labeled rim exit device for wide-stile wood or metal fire openings. The F prefix is the fire label, not a function. This page is the factory B rail (36 in door), function 01 Exit Only -- no outside trim. Panic 8300B is a separate listing.
Grade 1 Strength and Universal Design
Certified to ANSI/BHMA A156.3 Grade 1, the fire-labeled 8300 family uses the same deadlocking latch bolt as the panic rim and stays non-handed. Schools and other rated exits use F8300B when the opening needs a Grade 1 fire-labeled 8000 Series rim and no exterior trim. Final hardware must match the opening fire rating and the AHJ.
Advanced Security and Electrified Integration
This F8300B is the fire-labeled mechanical rim. A published hourly rating and UL file number are not claimed here. The 8000 order block lists factory options including ES, MS, and LM. Those options are not on this 01 Exit Only page.
Key Product Features
- Fire-labeled F8300: the 8000 brochure lists UL labeled fire doors when the rim is ordered as F8300. This page is that device, not panic 8300B.
- No hex-key dogging: less dogging is standard on the fire-labeled F8300. Hex-key dogging is on the panic 8300 only.
- Grade 1 certified: ANSI/BHMA A156.3 Grade 1 on the 8000 Series submittal.
- Non-handed rim: order rail length; handing is not a factory option on this rim.
- Strike 463 and SNB standard: PL38 includes the 463 rim strike and SNB thru bolts on fire and hurricane rated devices.
- B rail as shipped: 36 in device for doors 28 to 36 in. A = 48 in is a separate F8300 length.
Technical Specifications
| Feature | Details |
| Device Type | Wide stile fire-labeled rim exit device (ANSI Type 1) |
| Function | 01 Exit Only -- no outside trim |
| Latchbolt | Deadlocking rim latch |
| Door Thickness | 1-3/4 in to 2-1/4 in (PL38 p.139) |
| Handing | Non-handed |
| Dogging | None -- less dogging is standard on F8300 |
| Rail length | B = 36 in as shipped (cut-down minimum 28 in, I8300 / PL38 p.138) |
| Default strike | 463 rim strike (included) |
| Mounting | Wood and machine screws plus SNB thru bolts standard (PL38) |
Ordering & Installation Information
The Dorma F8300B ships as a 36 in B rail with no hex-key dogging, finished in 689 sprayed aluminum. Panic 8300B is the non-labeled 36 in rim.
| Brand | Dorma |
| General - US Finishes | 689 - Spray Alumimun |
| Series | Dorma - 8000 Series |
| Door Opening Width | 36 Inches |
| Exit Device Fire Rating | Fire Rated Door |
| Exit Device Type | Rim Exit Device |
