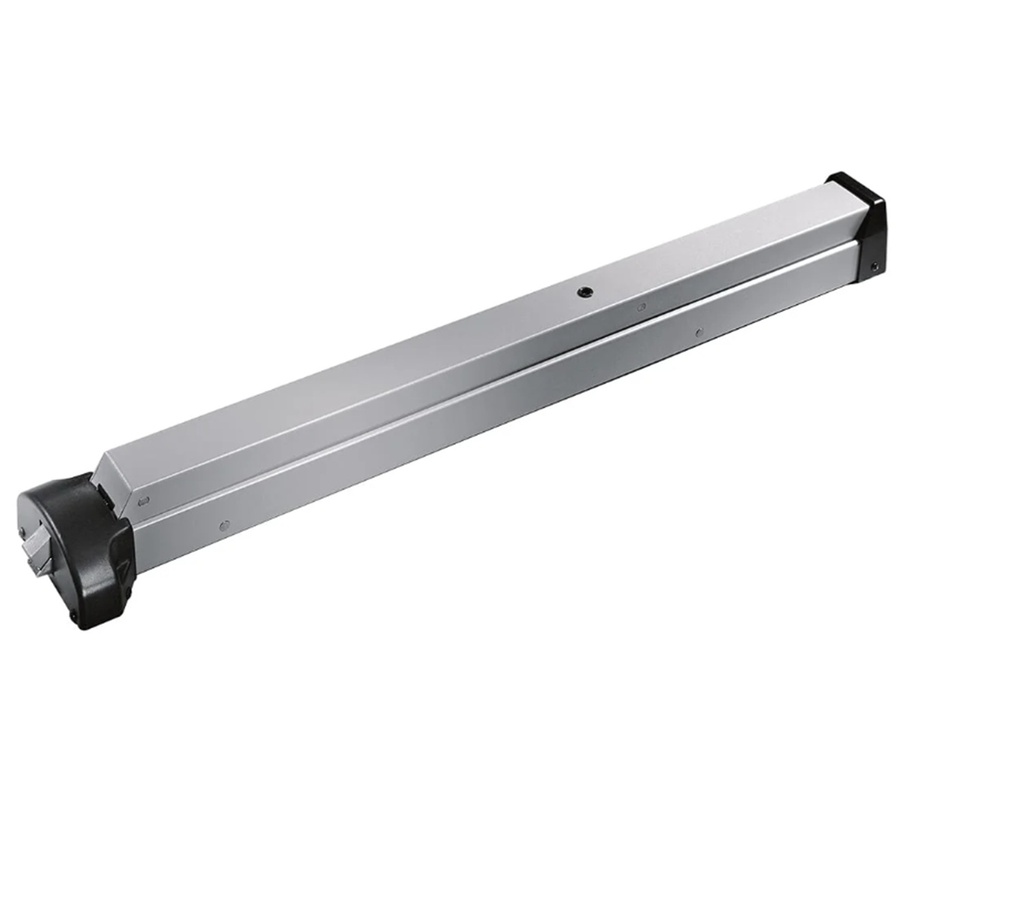

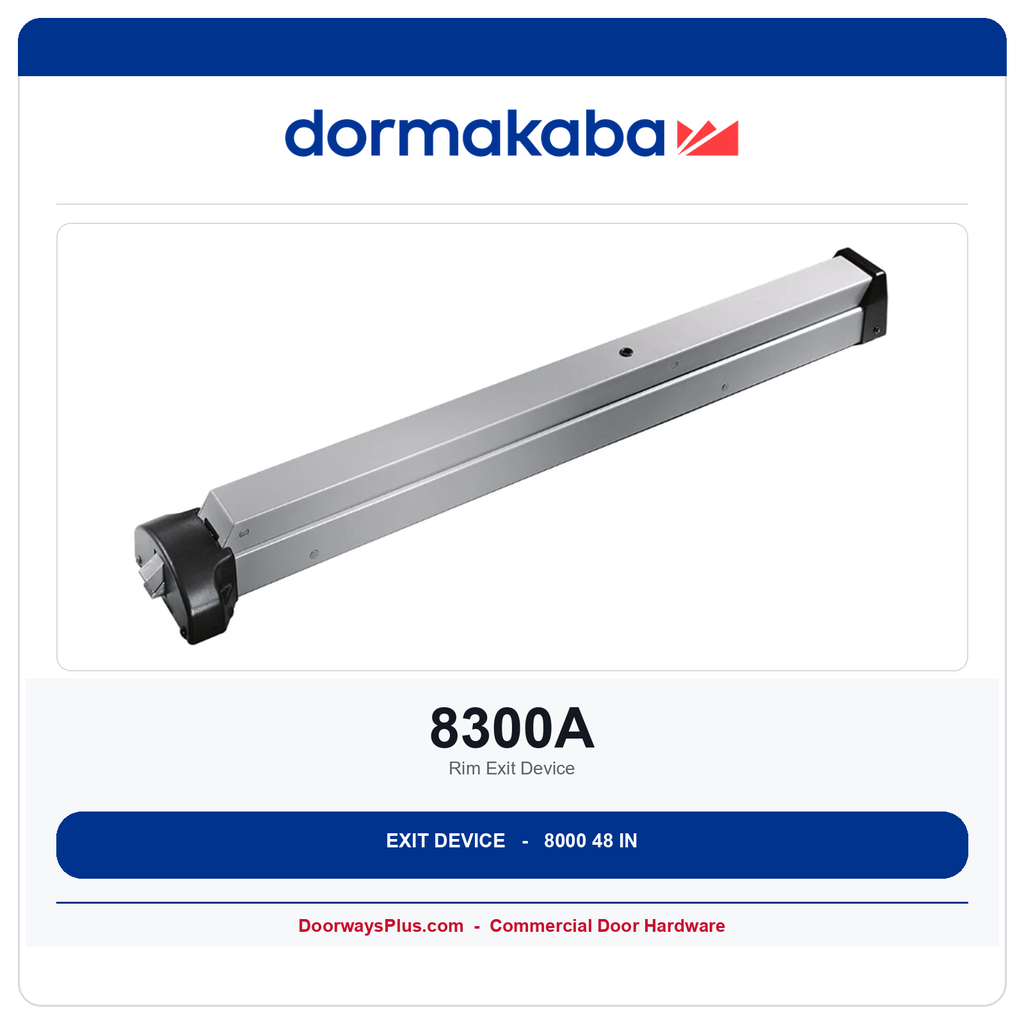

Dorma 8300A Rim Exit Device for 48" Wide Door
The Dorma 8300A is a Grade 1 wide-stile rim exit device for wide-stile wood or metal doors. This page is the factory A rail (48 in door), function 01 Exit Only -- no outside trim. The 36 in rail is the 8300B listing.
Grade 1 Strength and Universal Design
Certified to ANSI/BHMA A156.3 Grade 1, the Dorma 8000 Series uses a deadlocking latch bolt and stays non-handed. This listing is A (doors 34 to 48 in).
Advanced Security and Electrified Integration
This 8300A is the mechanical panic device: UL / cUL panic listed, not fire-labeled. Fire-labeled F8300 is a separate listing. The 8000 order block lists factory options including ES, MS, and LM. Those options are not on this 01 Exit Only page.
Key Product Features
- Non-handed rim: the 8000 brochure data table marks the 8300 as non-handed. Order rail length; handing is not a factory option on this rim.
- Single-point latching: deadlocking rim latch for a single door or a pair with a removable mullion.
- Grade 1 certified: ANSI/BHMA A156.3 Grade 1 on the 8000 Series submittal.
- Panic listed: UL / cUL panic and CSFM on wide stile. UL10C is the fire-labeled F8300 listing, not this page.
- A rail as shipped: 48 in device for doors 34 to 48 in. B = 36 in is a separate length. PL38 prices A, B, and C the same.
- Strike 463: PL38 default / no-charge rim strike on 8300 and F8300.
Technical Specifications
| Feature | Details |
| Device Type | Wide stile rim exit device (ANSI Type 1) |
| Function | 01 Exit Only -- no outside trim |
| Latchbolt | Deadlocking rim latch |
| Door Thickness | 1-3/4 in to 2-1/4 in (PL38 p.139) |
| Handing | Non-handed |
| Dogging | Hex-key standard (panic / non-labeled only) |
| Rail length | A = 48 in as shipped (cut-down minimum 34 in, I8300 / PL38 p.138) |
| Default strike | 463 rim strike |
| Mounting | Wood and machine screws standard; SNB thru bolts optional |
Ordering & Installation Information
The Dorma 8300A ships as a 48 in A rail in 689 sprayed aluminum. The 36 in rail is 8300B. Fire-labeled units are a separate F8300 listing. Hex-key dogging is standard on this panic device.
| Brand | Dorma |
| General - US Finishes | 689 - Spray Alumimun |
| Series | Dorma - 8000 Series |
| Door Opening Width | 48 Inches |
| Exit Device Fire Rating | Non Rated Door |
| Exit Device Type | Rim Exit Device |
