Dorma PD Parallel Drop Bracket (Non-Hold Open)
The Dorma PD is the parallel drop bracket. Price List 38 prints it as the drop bracket for non-hold-open arms (AR, AO8 only), list $56. The 8600 brochure (printed p.29) says it clears a surface-applied stop or holder on 8600 NHO parallel-arm applications.
The 7400 plates note says PD mirrors the 8600 part. This page is the bracket only.
Does PD work with a hold-open parallel arm?
Price List 38 limits PD to non-hold-open arms AR and AO8 only. Friction hold-open parallel uses the PHB bracket, not PD.
When do I add a BS spacer with PD?
PL38 and the 8600 brochure: BS is the blade-stop spacer for P86, PHB, and PD on cased frames with applied blade stops.
Institutional Grade Features and Benefits
- NHO only: PL38 -- AR and AO8. Not FHP / PHB hold-open.
- Clears a surface stop: brochure -- surface-applied stop or holder.
- Blade-stop sister: add BS when the frame has an applied blade stop.
- Finish on this listing: painted 689 / 693 / 695.
- This listing: does not include the closer body, arm, or cover.
Applications
Non-hold-open parallel-arm 8600 or 7400 openings that need extra drop to clear a surface stop or holder.
Which bracket or spacer is this?
Every row below is from the glossary plates_brackets section, Price List 38, or the 8600/7400 brochure. This listing is PD only.
| Plate | Printed size and use |
|---|---|
| P86 | Parallel arm bracket. Standard with NHO and plunger-HO parallel arms. |
| PD (this listing) | Parallel drop bracket. NHO parallel (AR / AO8 only) to clear a surface stop/holder. |
| PFT | Parallel flush transom bracket. Use when flush transom blocks P86 or PHB. |
| NFHD | Narrow-frame HD bracket for DS/SPA when frame depth is under 4-1/2 in. |
| FTHD | Flush-transom HD bracket for DS/SPA when soffit bracket will not fit. |
| BS | Blade-stop spacer for P86, PHB, and PD on cased frames with applied blade stops. |
| BSHD | Heavy-duty blade-stop spacer for DS/SPA, used with the arm spacer. |
| BP86C | Conversion plate. Replaces a legacy DORMA 7600 footprint with 8600. |
| DP74 | 9-3/4 x 3-1/2 in. 7400-only drop plate. Top jamb when ceiling clearance is at least 1-3/4 in. |
Technical Specifications
Facts below are from the Dorma glossary (plates_brackets, cover_codes, mounting_templates, sizes.min_door_rail) and Price List 38 accessories. This plate is not the closer. UL/cUL, ANSI/BHMA A156.4 Grade 1, and the 25-year closer warranty apply to the 7400/8600 closer body, not to the plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma PD |
| Part Type | Parallel drop bracket for non-hold-open arms |

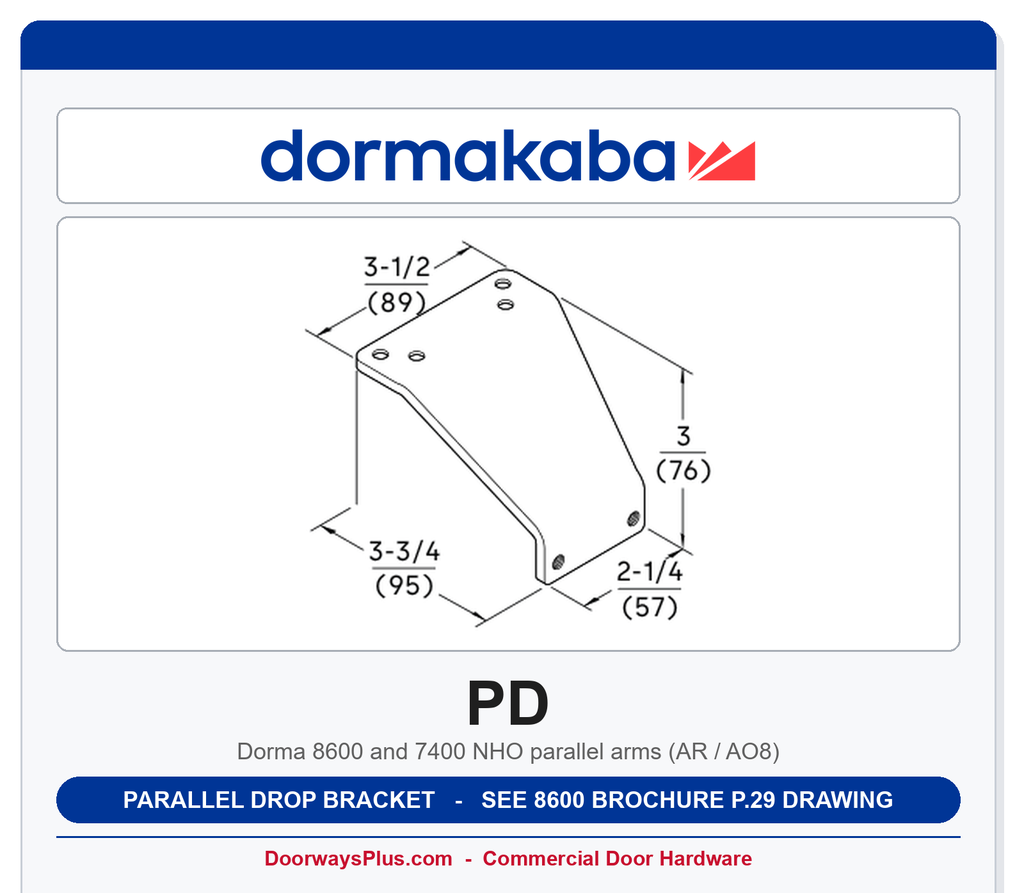

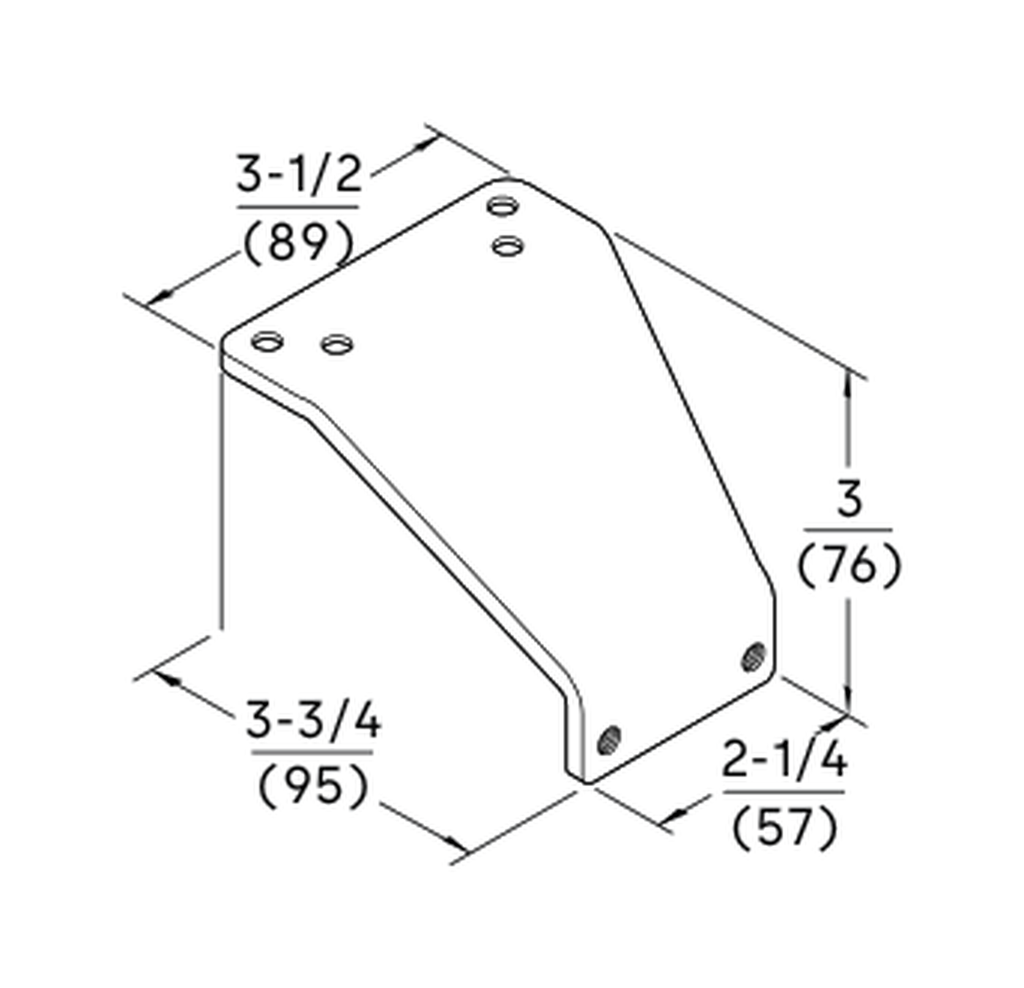

| Size | See 8600 brochure p.29 drawing |
| Cover | Not a cover -- accessory plate / bracket / spacer |
| Series | Dorma 8600 and 7400 (BP86/DP86 family also used on 7400) |
| Printed use | NHO parallel arm to clear a surface-applied stop/holder. PL38: AR, AO8 only. |
| Factory templates | |
| Finish with BHMA code | Painted 689 / 693 / 695 |
| Factory list (PL38) | PL38 accessories: PD Parallel drop bracket, non-hold open arms (AR, AO8 only), list $56 |
| SKU prefix | CLPPD-* |
| Source | configs/dorma/dorma_glossary_2026.json ; PL38 accessories |
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze |
| Brand | Dorma |
| Series | Dorma - 8600 Series, Dorma - 7400 Series |
| Closer Part Type | Brackets & Feet |
