Dorma NFHD Narrow Frame Bracket (DS / SPA)
The Dorma NFHD is the narrow-frame heavy-duty bracket for DS and SPA arms. Price List 38 lists it at $45. The glossary and 8600 brochure (printed p.29) call it out when total frame depth is under 4-1/2 in.
It replaces the standard spacer block that ships with the arm. The 7400 note says NFHD mirrors the 8600 part.
When is NFHD required instead of the arm spacer block?
When total frame depth is under 4-1/2 in. The 8600 brochure: NFHD is used in lieu of the spacer block supplied with the arm.
Is NFHD the same as FTHD?
No. NFHD is the narrow-frame HD bracket. FTHD is the flush-transom HD bracket. Both are DS/SPA accessories.
Institutional Grade Features and Benefits
- DS / SPA only: not the standard P86 soffit family.
- Frame depth under 4-1/2 in: glossary / brochure trigger.
- Replaces the arm spacer block: brochure -- in lieu of the block supplied with the arm.
- Finish on this listing: painted 689 / 693 / 695.
- This listing: does not include the closer body, arm, or cover.
Applications
DS door-saver or SPA super-parallel openings where the frame is too shallow (under 4-1/2 in) for the standard spacer block.
Which bracket or spacer is this?
Every row below is from the glossary plates_brackets section, Price List 38, or the 8600/7400 brochure. This listing is NFHD only.
| Plate | Printed size and use |
|---|---|
| P86 | Parallel arm bracket. Standard with NHO and plunger-HO parallel arms. |
| PD | Parallel drop bracket. NHO parallel (AR / AO8 only) to clear a surface stop/holder. |
| PFT | Parallel flush transom bracket. Use when flush transom blocks P86 or PHB. |
| NFHD (this listing) | Narrow-frame HD bracket for DS/SPA when frame depth is under 4-1/2 in. |
| FTHD | Flush-transom HD bracket for DS/SPA when soffit bracket will not fit. |
| BS | Blade-stop spacer for P86, PHB, and PD on cased frames with applied blade stops. |
| BSHD | Heavy-duty blade-stop spacer for DS/SPA, used with the arm spacer. |
| BP86C | Conversion plate. Replaces a legacy DORMA 7600 footprint with 8600. |
| DP74 | 9-3/4 x 3-1/2 in. 7400-only drop plate. Top jamb when ceiling clearance is at least 1-3/4 in. |
Technical Specifications
Facts below are from the Dorma glossary (plates_brackets, cover_codes, mounting_templates, sizes.min_door_rail) and Price List 38 accessories. This plate is not the closer. UL/cUL, ANSI/BHMA A156.4 Grade 1, and the 25-year closer warranty apply to the 7400/8600 closer body, not to the plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma NFHD |
| Part Type | Narrow frame bracket for DS and SPA arms |

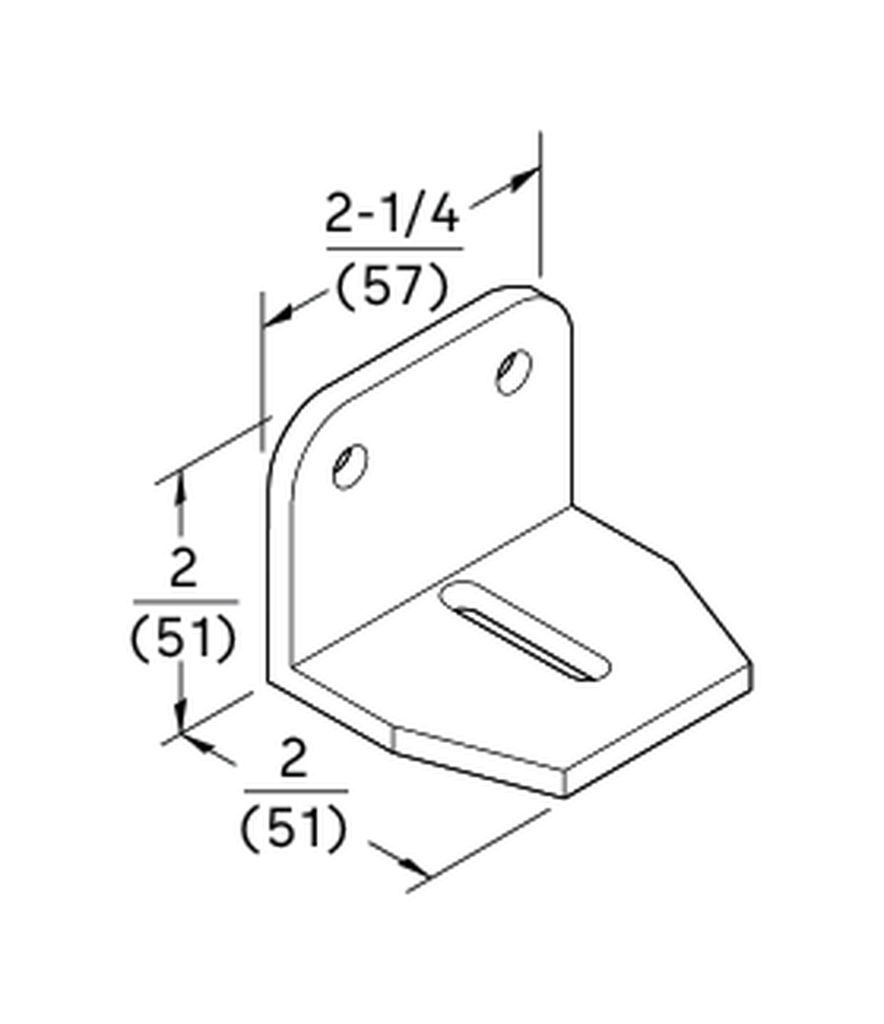

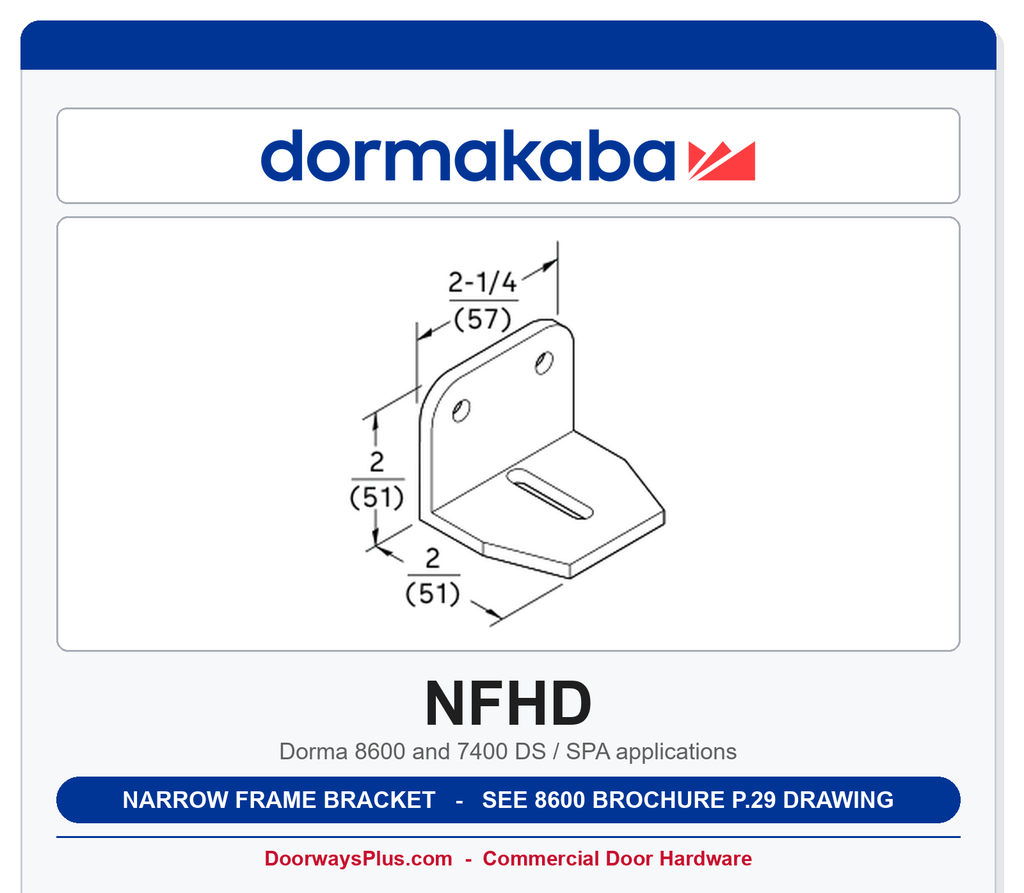

| Size | See 8600 brochure p.29 drawing |
| Cover | Not a cover -- accessory plate / bracket / spacer |
| Series | Dorma 8600 and 7400 (BP86/DP86 family also used on 7400) |
| Printed use | DS/SPA when total frame depth is under 4-1/2 in; used in lieu of the spacer block supplied with the arm (glossary / brochure p.29) |
| Factory templates | |
| Finish with BHMA code | Painted 689 / 693 / 695 |
| Factory list (PL38) | PL38 accessories: NFHD Narrow frame bracket for use with heavy duty door saver and super parallel arms, list $45 |
| SKU prefix | CLPNFHD-* |
| Source | configs/dorma/dorma_glossary_2026.json ; PL38 accessories |
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze |
| Brand | Dorma |
| Series | Dorma - 8600 Series, Dorma - 7400 Series |
| Closer Part Type | Brackets & Feet |
