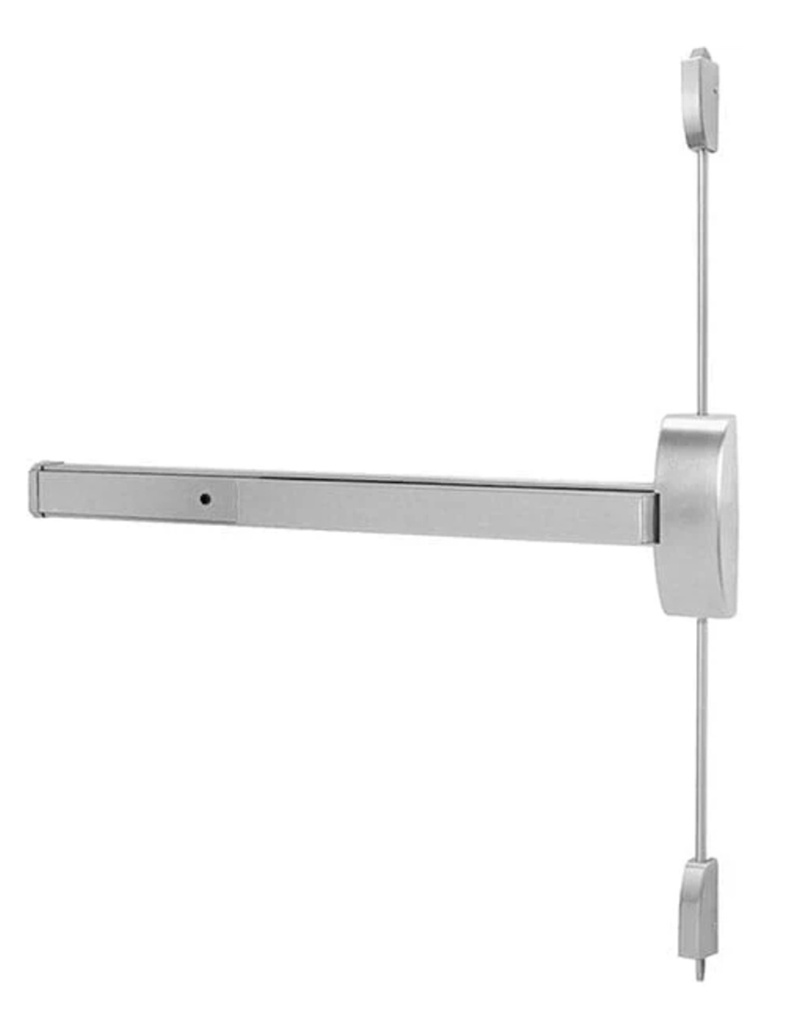

Dorma F9400C Fire-Rated SVR Surface Vertical Rod Exit Device for 30" Wide Door
The Dorma F9400C is a heavy-duty, Grade 1 fire-labeled surface vertical rod exit device for wide-stile wood or metal fire pairs that cannot take a mullion. The F prefix is the fire label, not a function. This page is the factory C rail (30 in door), function 01 Exit Only, default RHR. Panic 9400C, the 36 in F9400B, and the 48 in F9400A are separate listings.
Grade 1 Strength and Universal Design
Certified to ANSI/BHMA A156.3 Grade 1, the fire-labeled 9400 latches top and bottom so the pair stays clear in the middle. Final hardware must match the opening fire rating and the AHJ.
Advanced Security and Electrified Integration
This F9400C is the fire-labeled mechanical SVR. A published hourly rating and UL file number are not claimed here. The 9000 order block lists factory options including MLR, ES, MS, and LM. Those options are not on this 01 Exit Only page.
Key Product Features
- Fire-labeled F9400: the F prefix is the fire label on the 9400 SVR. This page is that 30 in device, not panic 9400C.
- No hex-key dogging: less dogging is standard on the fire-labeled F9400.
- Grade 1 certified: ANSI/BHMA A156.3 Grade 1 on the 9000 Series certification page.
- C rail as shipped: 30 in device. Cut-down minimum 25 in (PL38). B = 36 in is F9400B. A = 48 in is F9400A.
- Default strikes included: top 426 and bottom 439 on the PL38 9400 order block. SNB thru bolts are standard on fire and hurricane rated devices.
- Default RHR: PL38 p.95 -- RHR is the factory default when handing is not specified.
Technical Specifications
| Feature | Details |
| Device Type | Wide stile fire-labeled surface vertical rod (SVR) |
| Function | 01 Exit Only -- no outside trim |
| Latching | Top and bottom surface vertical rods |
| Door Thickness | 1-3/4 in to 2-1/4 in (PL38 p.95) |
| Handing | RHR factory default when not specified (PL38 p.95) |
| Dogging | None -- less dogging is standard on F9400 |
| Door height | Specify 7 ft or 8 ft; factory rods are precut for 7 or 8 ft |
| Rail length | C = 30 in as shipped (cut-down minimum 25 in, PL38 p.94) |
| Default strikes | Top 426 / bottom 439 |
| Mounting | Wood and machine screws plus SNB thru bolts standard (PL38) |
Ordering & Installation Information
The Dorma F9400C ships as a 30 in C rail, default RHR, with no hex-key dogging. Choose 630 satin stainless or 689 sprayed aluminum on this page. The 36 in fire SVR is F9400B. The 48 in fire SVR is F9400A. Panic 9400C is separate.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 689 - Spray Alumimun |
| Door Height | 7'0" Dr Ht or 8'0" Dr Ht |
| Brand | Dorma |
| Series | Dorma - 9000 Series |
| Door Opening Width | 30 Inches |
| Exit Device Fire Rating | Fire Rated Door |
| Exit Device Type | SVR Exit Device |
