Dorma DP89 Drop Plate

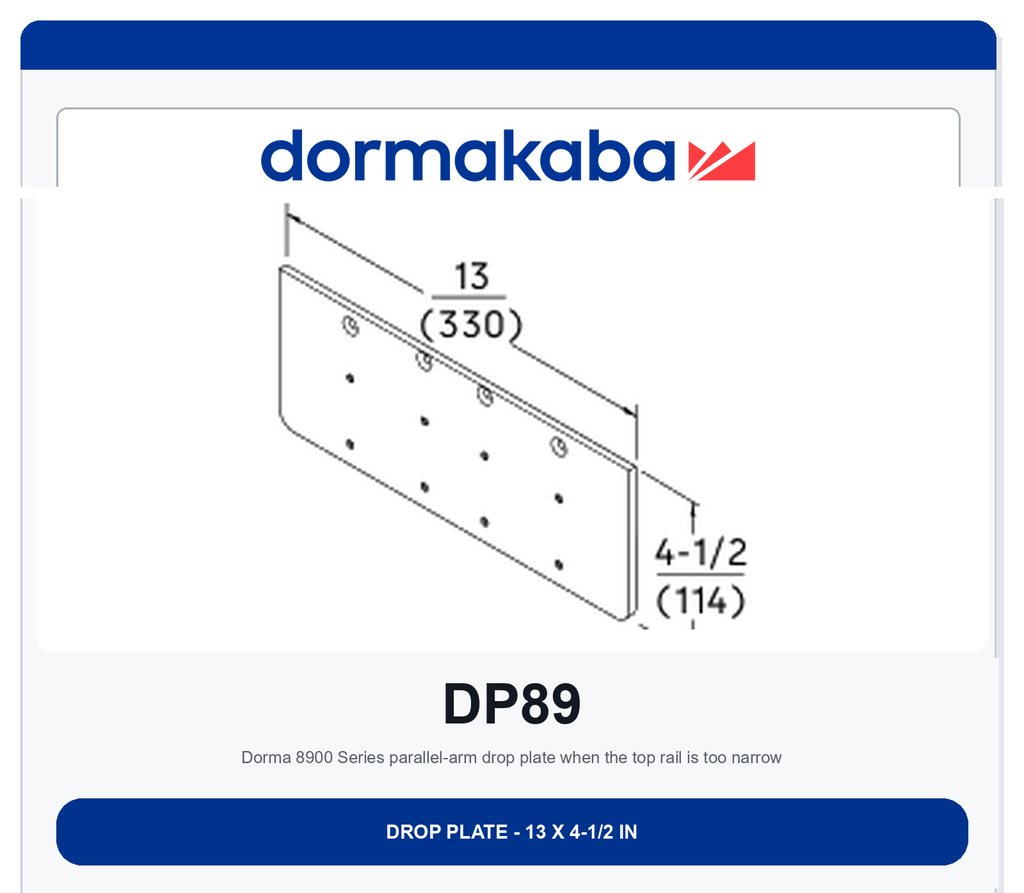

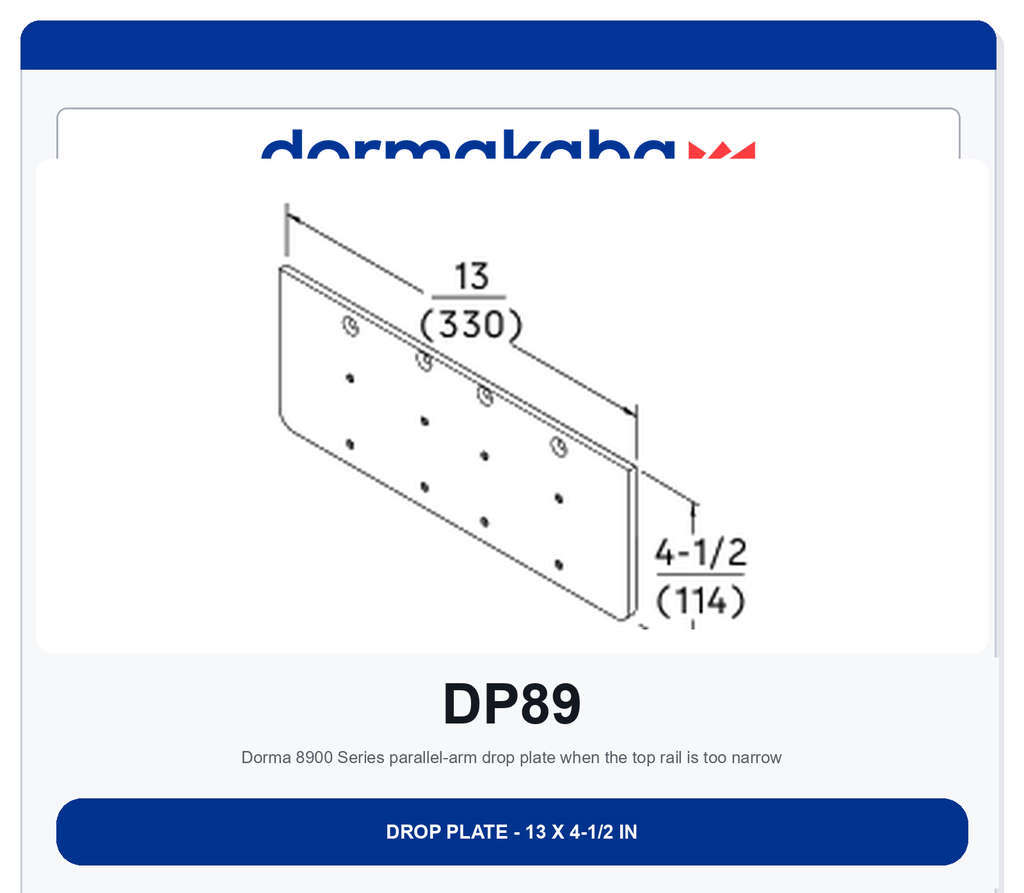

The Dorma DP89 is the 8900 Series drop plate for parallel-arm mounting. The 8900 brochure (printed p.29) calls it when the top door rail is less than 5-3/4 in for non-hold-open and plunger hold-open, or less than 6 in for friction (assuming a 5/8 in stop). The catalog drawing is 13 x 4-1/2 in.
This listing is the spare / replacement plate. The 8916 closer body, arm, and cover are separate. P89 is the standard parallel soffit bracket that ships with AF89P -- it is not this drop plate.
When do I need a DP89 instead of mounting the closer on the door rail?
When the top rail is below the brochure minimum. Printed p.29: less than 5-3/4 in for NHO and plunger HO, or less than 6 in for friction with a 5/8 in stop. A full-rail AF89P opening uses the door and the P89 soffit bracket -- not DP89.
DP89 vs BP89 vs P89?
DP89 = parallel-arm drop plate on a short top rail. BP89 = top-jamb backplate when the frame face is under 2-7/8 in. P89 = standard PA soffit bracket (furnished with AF89P / PHP). They are not interchangeable.
Institutional Grade Features and Benefits
- Parallel-arm drop plate: brochure p.29 -- short top rail, not a backplate.
- 13 x 4-1/2 in drawing: that is the catalog size for DP89.
- Sisters: P89 standard PA bracket, BP89 top-jamb backplate, PD drop bracket.
- Finish on this listing: painted 689 / 693 / 695.
- This listing: does not include the closer body, arm, or cover.
Applications
Replacement drop plate for a Dorma 8916 / 8956 parallel-arm closer when the door top rail is below the brochure minimum, or when the original DP89 is missing or damaged.
Which bracket or spacer is this?
Every row below is from the 8900 brochure accessory pages (printed pp. 26 / 29 / 30) or Price List 38 printed p.188. This listing is DP89 only.
| Plate | Printed size and use |
|---|---|
| P89 | Parallel arm bracket. Furnished standard with 8900 NHO and plunger-HO parallel arms (brochure p.29). AF89P tri-pack includes P89. |
| PHB | Friction hold-open parallel bracket. Furnished standard with FHP (brochure p.29). Not this listing. |
| PFT | Parallel flush transom bracket. Use when a flush transom blocks P89 or PHB (brochure p.29). |
| PD | Parallel drop bracket. 8900 NHO parallel to clear a surface-applied stop/holder (brochure p.29; PL38 AF89 only). |
| DP89 (this listing) | Drop plate. Parallel arm when the top rail is under 5-3/4 in NHO / plunger HO, or under 6 in friction with a 5/8 in stop (brochure p.29). 13 x 4-1/2 in. |
| BP89 | Backplate. Top jamb when the frame face is under 2-7/8 in. Two hole sets for 1-3/4 in or 3-1/4 in ceiling clearance (brochure p.29). 13 x 3-1/4 in. |
| MJ | Mortised jamb bracket. Regular NHO when the standard foot will not land; twin communicating doors when P89 will not fit. Flat-form must use AF8MJ (brochure p.30). |
| BS | Blade-stop spacer for P89, PHB, and PD on cased frames with applied blade stops (brochure p.30; PL38). |
| NFHD | Narrow-frame HD bracket for DS / SPA when frame depth is under 4-1/2 in (brochure p.29). |
| FTHD | Flush-transom HD bracket for DS / SPA when the soffit bracket will not fit (brochure p.30). |
Technical Specifications
Facts below are from the 8900 Series brochure accessory pages and Price List 38 accessories. This plate is not the closer. UL/cUL, ANSI/BHMA A156.4 Grade 1, and the closer warranty apply to the 8900 closer body, not to the plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma DP89 |
| Part Type | Drop plate |
| Size | 13 x 4-1/2 in (8900 brochure printed p.29) |
| Cover | Not a cover -- accessory plate / bracket / spacer |
| Series | Dorma 8900 (8916 / 8956) |
| Printed use | Parallel arm when top rail is less than 5-3/4 in for NHO and plunger HO, or less than 6 in for friction (5/8 in stop) |
| Factory templates | |
| Finish with BHMA code | Painted 689 / 693 / 695 |
| Factory list (PL38) | PL38 printed p.188: DP89 Drop plate for PA where top rail is < 5-3/4 in, list $52 |
| SKU prefix | CLPDP89-* |
| Source | 8900 brochure printed pp. 26 / 29 / 30 ; PL38 printed p.188 |
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze |
| Brand | Dorma |
| Series | Dorma - 8900 Series, Dorma - 8900 Series |
| Closer Part Type | Brackets & Feet |
