Dorma BSHD Heavy-Duty Blade Stop Spacer
The Dorma BSHD is the heavy-duty blade-stop spacer. Price List 38 lists it at $45 for heavy-duty door saver and super parallel arms. The 8600 brochure (printed p.30) sizes the drawing at 4 x 1 x 1/2 in.
Use it with the spacer that ships on the DS or SPA arm. The 7400 note says BSHD mirrors the 8600 part.
Does BSHD replace the spacer that comes with the DS/SPA arm?
No. The 8600 brochure says BSHD is used in conjunction with the spacer furnished with the arm -- it does not replace that spacer.
BS vs BSHD?
BS (3-1/2 in long) is for P86 / PHB / PD. BSHD (4 in long) is for DS / SPA.
Institutional Grade Features and Benefits
- DS / SPA only: not the standard P86 / PHB / PD spacer (that is BS).
- 4 x 1 x 1/2 in: 8600 brochure printed p.30 -- longer than BS.
- Used with the arm spacer: brochure -- in conjunction with, not instead of.
- Finish on this listing: painted 689 / 693 / 695.
- This listing: does not include the closer body, arm, or cover.
Applications
Cased-frame openings with an applied blade stop that use a Dorma DS door-saver or SPA super-parallel arm.
Which bracket or spacer is this?
Every row below is from the glossary plates_brackets section, Price List 38, or the 8600/7400 brochure. This listing is BSHD only.
| Plate | Printed size and use |
|---|---|
| P86 | Parallel arm bracket. Standard with NHO and plunger-HO parallel arms. |
| PD | Parallel drop bracket. NHO parallel (AR / AO8 only) to clear a surface stop/holder. |
| PFT | Parallel flush transom bracket. Use when flush transom blocks P86 or PHB. |
| NFHD | Narrow-frame HD bracket for DS/SPA when frame depth is under 4-1/2 in. |
| FTHD | Flush-transom HD bracket for DS/SPA when soffit bracket will not fit. |
| BS | Blade-stop spacer for P86, PHB, and PD on cased frames with applied blade stops. |
| BSHD (this listing) | Heavy-duty blade-stop spacer for DS/SPA, used with the arm spacer. |
| BP86C | Conversion plate. Replaces a legacy DORMA 7600 footprint with 8600. |
| DP74 | 9-3/4 x 3-1/2 in. 7400-only drop plate. Top jamb when ceiling clearance is at least 1-3/4 in. |
Technical Specifications
Facts below are from the Dorma glossary (plates_brackets, cover_codes, mounting_templates, sizes.min_door_rail) and Price List 38 accessories. This plate is not the closer. UL/cUL, ANSI/BHMA A156.4 Grade 1, and the 25-year closer warranty apply to the 7400/8600 closer body, not to the plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma BSHD |
| Part Type | Heavy-duty blade stop spacer |

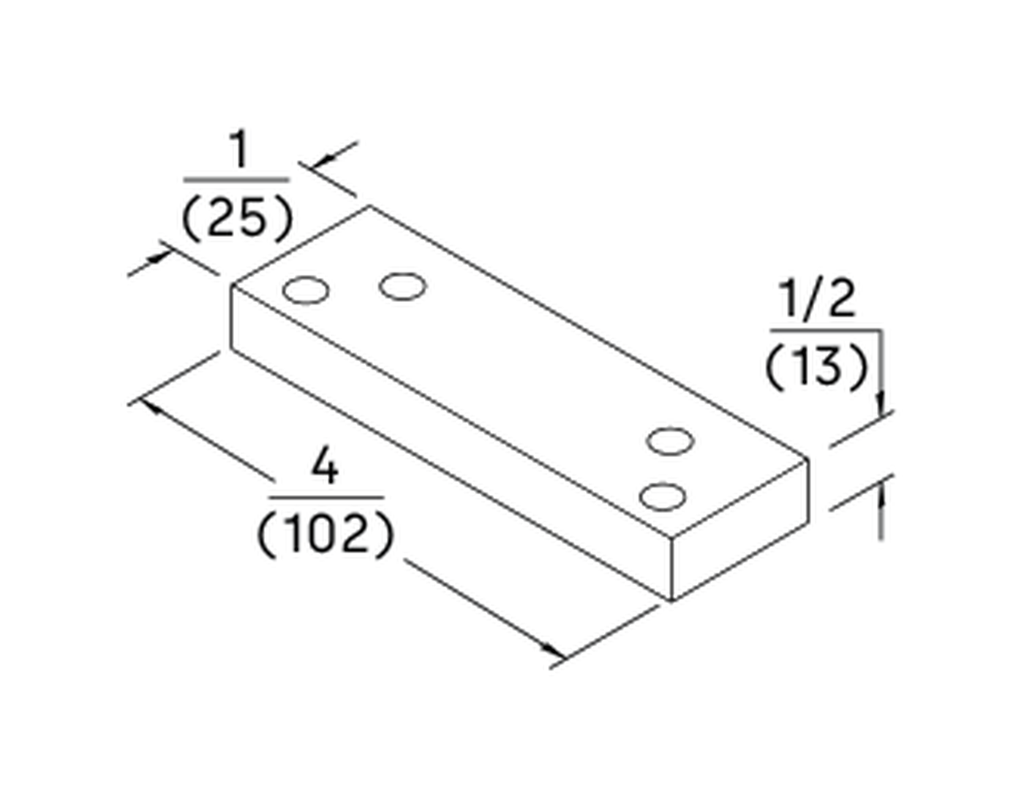

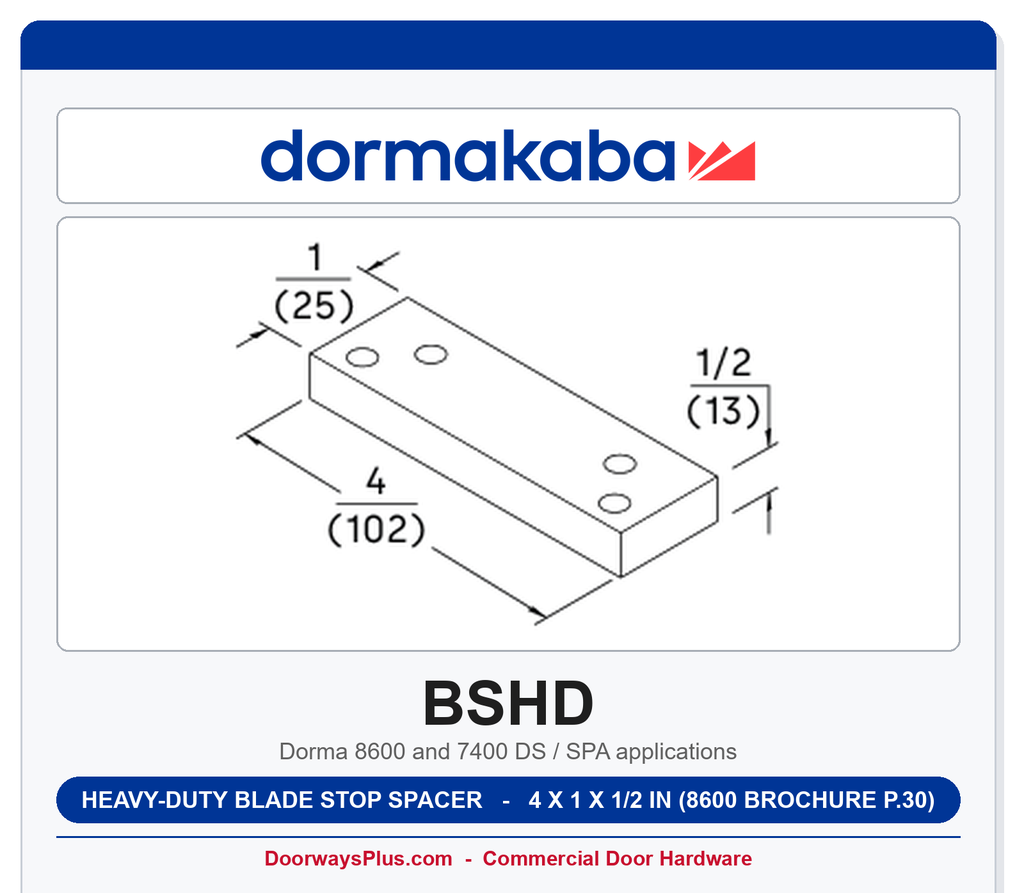

| Size | 4 x 1 x 1/2 in (8600 brochure p.30) |
| Cover | Not a cover -- accessory plate / bracket / spacer |
| Series | Dorma 8600 and 7400 (BP86/DP86 family also used on 7400) |
| Printed use | DS and SPA on cased frames with applied blade stops, used with the arm spacer (PL38 / brochure p.30) |
| Factory templates | |
| Finish with BHMA code | Painted 689 / 693 / 695 |
| Factory list (PL38) | PL38 accessories: BSHD Blade stop spacer for use with heavy duty door saver and super parallel arms, list $45 |
| SKU prefix | CLPBSHD-* |
| Source | configs/dorma/dorma_glossary_2026.json ; PL38 accessories |
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze |
| Brand | Dorma |
| Series | Dorma - 8600 Series, Dorma - 7400 Series |
| Closer Part Type | Brackets & Feet |
