Dorma BP89 Backplate

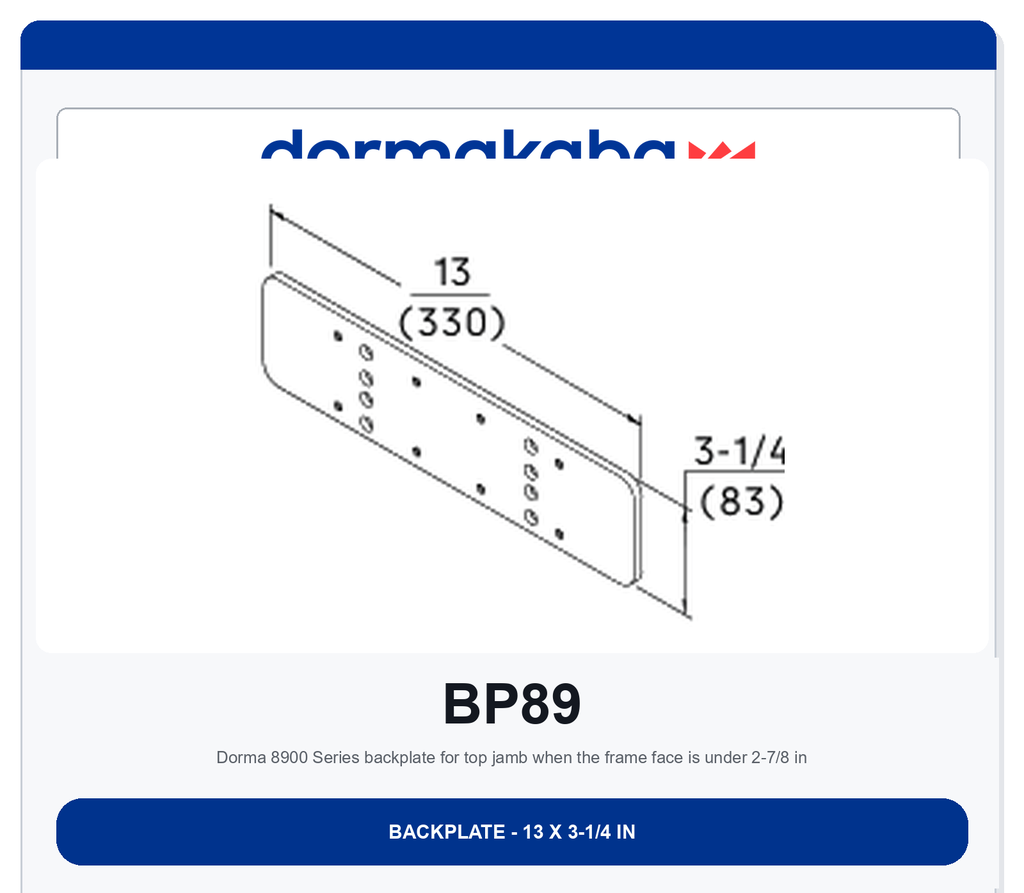

The Dorma BP89 is the 8900 Series backplate for top-jamb mounting. The 8900 brochure (printed p.29) calls it when the frame face is less than 2-7/8 in. Two sets of mounting holes give 1-3/4 in or 3-1/4 in minimum ceiling clearance. The catalog drawing is 13 x 3-1/4 in.
The upper hole set is the top-jamb drop that clears a surface-applied stop or holder. The same plate can back a regular-mount closer to clear a mortised stop or holder. This listing is the plate only.
When do I need a BP89 on top jamb?
When the frame face is under 2-7/8 in (brochure p.29). The closer screws to the plate; the plate screws to the frame. A full-face frame uses the closer on the frame -- not this plate.
BP89 vs DP89?
BP89 = top-jamb / regular backplate on a narrow frame face. DP89 = parallel-arm drop plate on a short top rail. Order the plate that matches the mount.
Institutional Grade Features and Benefits
- Narrow-frame backplate: brochure p.29 -- frame face under 2-7/8 in.
- Two hole sets: 1-3/4 in or 3-1/4 in ceiling clearance.
- 13 x 3-1/4 in drawing: that is the catalog size for BP89.
- Finish on this listing: painted 689 / 693 / 695.
- This listing: does not include the closer body, arm, or cover.
Applications
Replacement backplate for a Dorma 8916 / 8956 top-jamb or regular mount when the frame face is under 2-7/8 in, or when the original BP89 is missing or damaged.
Which bracket or spacer is this?
Every row below is from the 8900 brochure accessory pages (printed pp. 26 / 29 / 30) or Price List 38 printed p.188. This listing is BP89 only.
| Plate | Printed size and use |
|---|---|
| P89 | Parallel arm bracket. Furnished standard with 8900 NHO and plunger-HO parallel arms (brochure p.29). AF89P tri-pack includes P89. |
| PHB | Friction hold-open parallel bracket. Furnished standard with FHP (brochure p.29). Not this listing. |
| PFT | Parallel flush transom bracket. Use when a flush transom blocks P89 or PHB (brochure p.29). |
| PD | Parallel drop bracket. 8900 NHO parallel to clear a surface-applied stop/holder (brochure p.29; PL38 AF89 only). |
| DP89 | Drop plate. Parallel arm when the top rail is under 5-3/4 in NHO / plunger HO, or under 6 in friction with a 5/8 in stop (brochure p.29). 13 x 4-1/2 in. |
| BP89 (this listing) | Backplate. Top jamb when the frame face is under 2-7/8 in. Two hole sets for 1-3/4 in or 3-1/4 in ceiling clearance (brochure p.29). 13 x 3-1/4 in. |
| MJ | Mortised jamb bracket. Regular NHO when the standard foot will not land; twin communicating doors when P89 will not fit. Flat-form must use AF8MJ (brochure p.30). |
| BS | Blade-stop spacer for P89, PHB, and PD on cased frames with applied blade stops (brochure p.30; PL38). |
| NFHD | Narrow-frame HD bracket for DS / SPA when frame depth is under 4-1/2 in (brochure p.29). |
| FTHD | Flush-transom HD bracket for DS / SPA when the soffit bracket will not fit (brochure p.30). |
Technical Specifications
Facts below are from the 8900 Series brochure accessory pages and Price List 38 accessories. This plate is not the closer. UL/cUL, ANSI/BHMA A156.4 Grade 1, and the closer warranty apply to the 8900 closer body, not to the plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma BP89 |
| Part Type | Backplate |
| Size | 13 x 3-1/4 in (8900 brochure printed p.29) |
| Cover | Not a cover -- accessory plate / bracket / spacer |
| Series | Dorma 8900 (8916 / 8956) |
| Printed use | Top jamb when frame face is less than 2-7/8 in; two hole sets for 1-3/4 in or 3-1/4 in ceiling clearance |
| Factory templates | |
| Finish with BHMA code | Painted 689 / 693 / 695 |
| Factory list (PL38) | PL38 printed p.188: BP89 Backplate for top jamb with frame < 2-7/8 in wide, list $52 |
| SKU prefix | CLPBP89-* |
| Source | 8900 brochure printed pp. 26 / 29 / 30 ; PL38 printed p.188 |
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze |
| Brand | Dorma |
| Series | Dorma - 8900 Series, Dorma - 8900 Series |
| Closer Part Type | Brackets & Feet |
