Dorma BP86C Conversion Plate -- 7600 Footprint to 8600

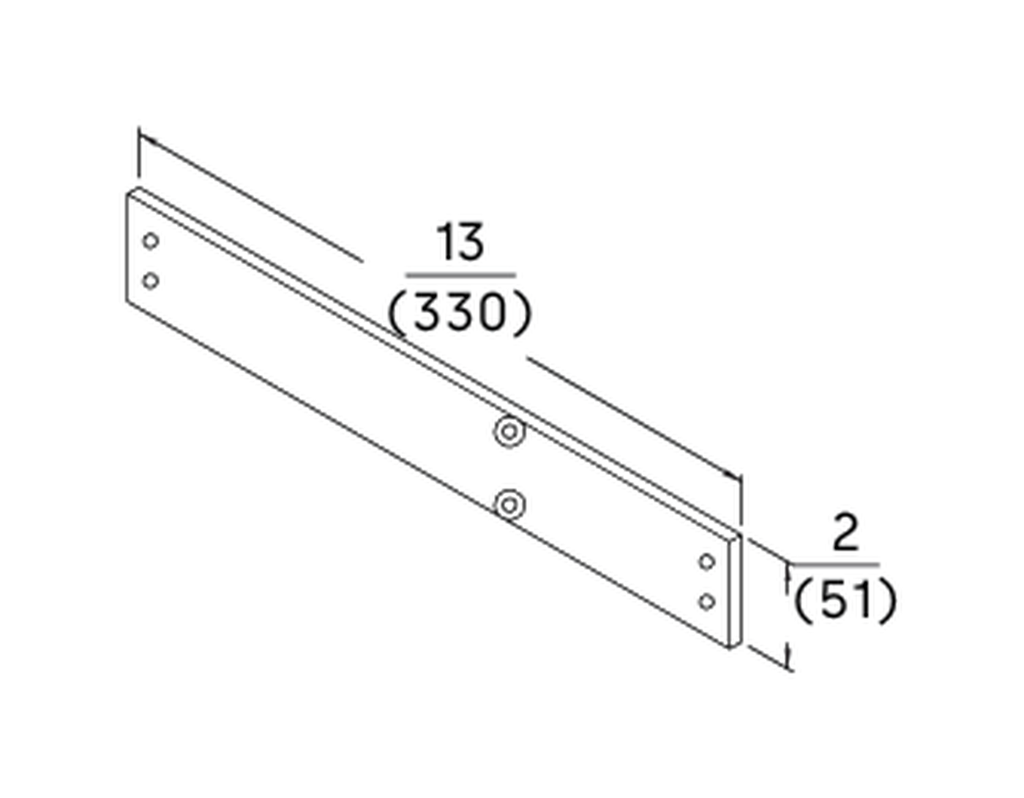

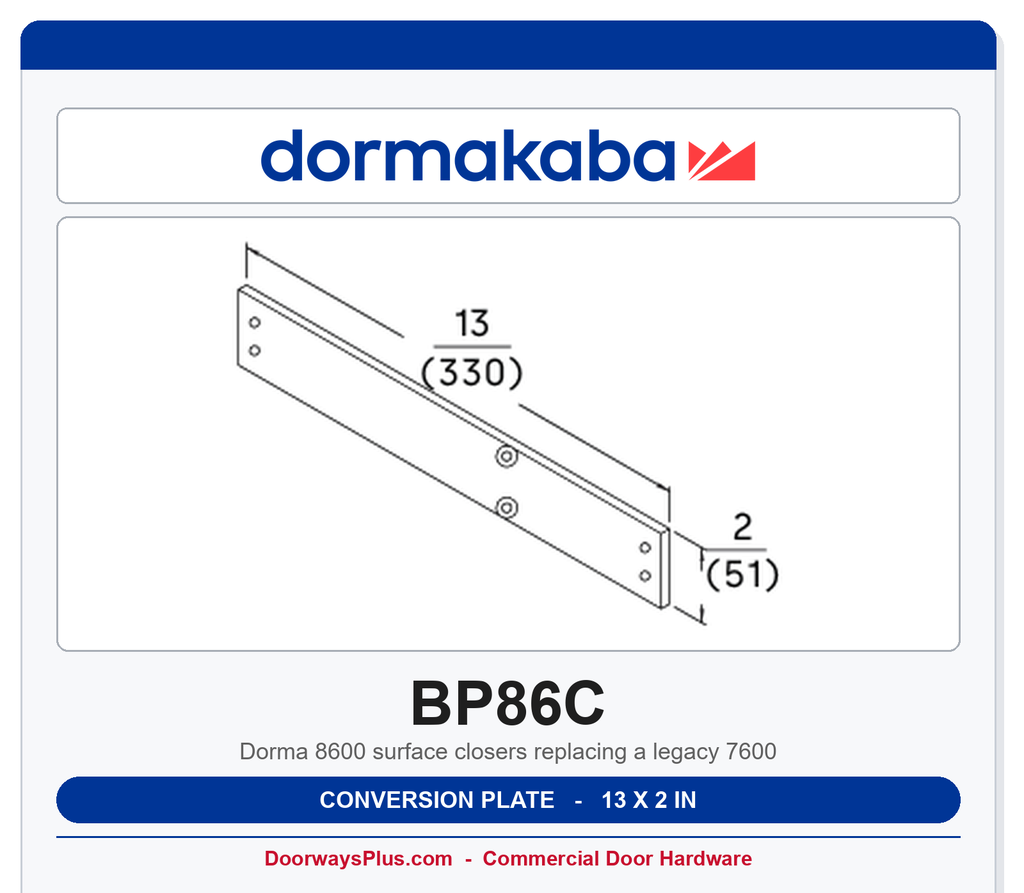

The Dorma BP86C is the conversion plate that lets an 8600 closer replace a legacy 7600 without a new hole pattern. The 8600 brochure (printed p.29) sizes the drawing at 13 x 2 in and lists regular, top jamb, or parallel arm mounts.
This page is the plate only -- the 8600 closer body, arm, and cover are separate listings. The 7400 conversion plate is a different part (BP640C).
Does BP86C fit a 7400 Contur closer?
No. BP86C replaces a legacy 7600 footprint with an 8600. The 7400 conversion plate is BP640C (9-1/16 in hole spacing -- 640 / Norton 1600 / Yale 50).
Do I still need a BP86 with the BP86C?
BP86C is the conversion plate that lets an 8600 sit on a 7600 hole pattern. It is not the slim-cover backplate BP86 (13 x 2-1/4 in).
Will I have to remachine the door?
The 8600 brochure says BP86C eliminates the need to remachine the door and frame when replacing a 7600 with an 8600.
Institutional Grade Features and Benefits
- 7600 to 8600 only: glossary and brochure -- not a 7400 / 640 conversion.
- 13 x 2 in drawing: 8600 brochure printed p.29.
- Three mounts printed: regular, top jamb, or parallel arm.
- No remachine: brochure: eliminates remachining the door and frame.
- Finish on this listing: painted 689 / 693 / 695.
- This listing: does not include the closer body, arm, or cover.
Applications
Use when a Dorma 7600 is coming off and an 8600 is going on the same door and frame. Hollow metal, aluminum, and wood openings. This is not the slim-cover backplate BP86 and not the 7400 retrofit plate BP640C.
Which bracket or spacer is this?
Every row below is from the glossary plates_brackets section, Price List 38, or the 8600/7400 brochure. This listing is BP86C only.
| Plate | Printed size and use |
|---|---|
| P86 | Parallel arm bracket. Standard with NHO and plunger-HO parallel arms. |
| PD | Parallel drop bracket. NHO parallel (AR / AO8 only) to clear a surface stop/holder. |
| PFT | Parallel flush transom bracket. Use when flush transom blocks P86 or PHB. |
| NFHD | Narrow-frame HD bracket for DS/SPA when frame depth is under 4-1/2 in. |
| FTHD | Flush-transom HD bracket for DS/SPA when soffit bracket will not fit. |
| BS | Blade-stop spacer for P86, PHB, and PD on cased frames with applied blade stops. |
| BSHD | Heavy-duty blade-stop spacer for DS/SPA, used with the arm spacer. |
| BP86C (this listing) | Conversion plate. Replaces a legacy DORMA 7600 footprint with 8600. |
| DP74 | 9-3/4 x 3-1/2 in. 7400-only drop plate. Top jamb when ceiling clearance is at least 1-3/4 in. |
Technical Specifications
Facts below are from the Dorma glossary (plates_brackets, cover_codes, mounting_templates, sizes.min_door_rail) and Price List 38 accessories. This plate is not the closer. UL/cUL, ANSI/BHMA A156.4 Grade 1, and the 25-year closer warranty apply to the 7400/8600 closer body, not to the plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma BP86C |
| Part Type | Conversion plate for replacing a DORMA 7600 closer with 8600 |
| Size | 13 x 2 in |
| Cover | Not a cover -- accessory plate / bracket / spacer |
| Series | Dorma 8600 and 7400 (BP86/DP86 family also used on 7400) |
| Printed use | Regular, top jamb, or parallel arm. Eliminates remachining the door and frame (8600 brochure p.29). |
| Factory templates | |
| Finish with BHMA code | Painted 689 / 693 / 695 |
| Factory list (PL38) | Glossary / 8600 brochure: conversion plate 7600 to 8600. List $ not on the PL38 7400 accessories table. |
| SKU prefix | CLPBP86C-* |
| Source | configs/dorma/dorma_glossary_2026.json ; PL38 accessories |
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze |
| Brand | Dorma |
| Series | Dorma - 8600 Series |
| Closer Part Type | Brackets & Feet |
