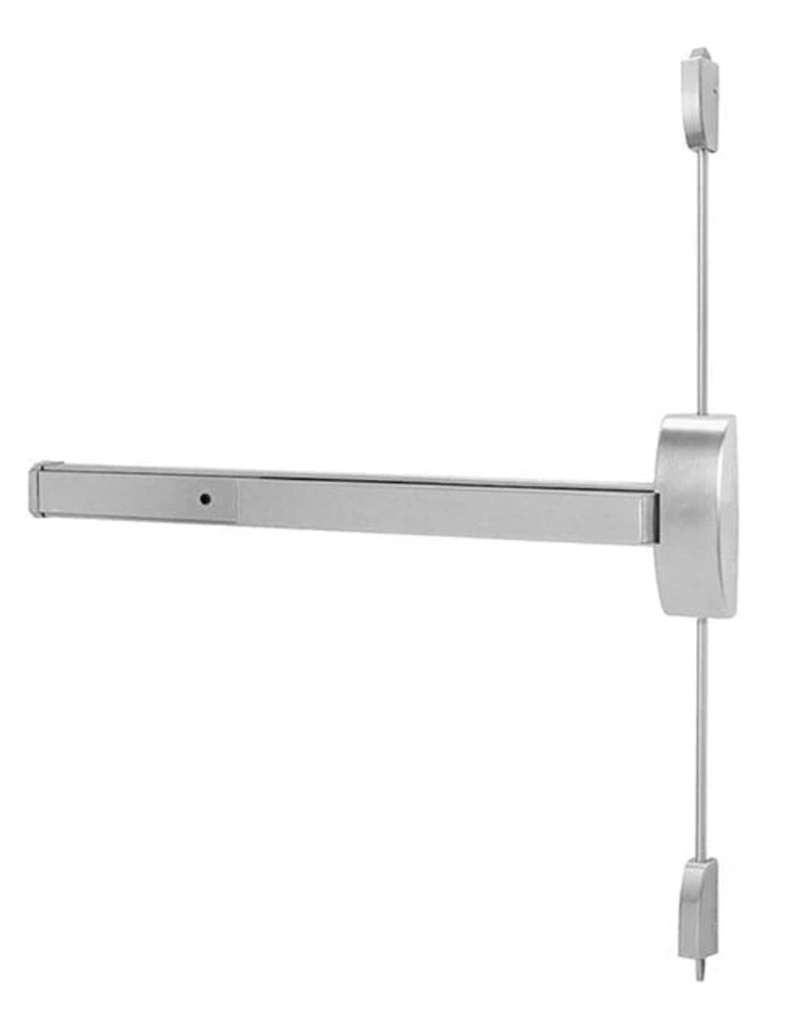

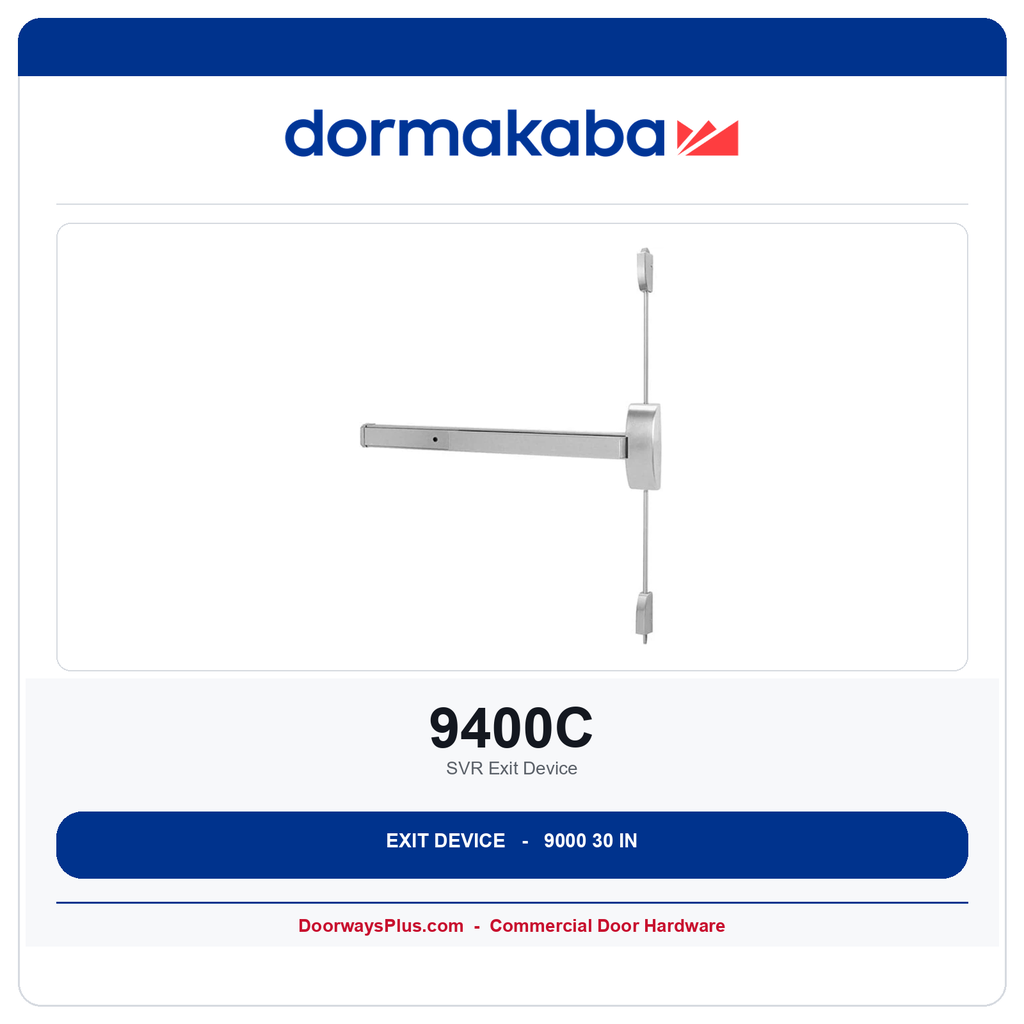

Dorma 9400C SVR Surface Vertical Rod Exit Device for 30" Wide Door
The Dorma 9400C is a heavy-duty, Grade 1 surface vertical rod exit device for wide-stile wood or metal pairs that cannot take a mullion. This page is the factory C rail (30 in door), function 01 Exit Only, default RHR. The 36 in device is 9400B. The 48 in device is 9400A. It is not the hyphenated 9400-630 string.
Grade 1 Strength and Universal Design
Certified to ANSI/BHMA A156.3 Grade 1, the 9400 latches top and bottom so the pair stays clear in the middle. Specify 7 ft or 8 ft door height -- factory rods are precut for those heights.
Advanced Security and Electrified Integration
This 9400C is the mechanical panic SVR, not F9400. The 9000 order block lists factory options including MLR, ES, MS, and LM. Those options are not on this 01 Exit Only page. 9400C 630 is the complete lettered device; hyphenated 9400-630 is a different, cheaper string.
Key Product Features
- Two-point SVR latching: catalog printed p.22 -- 9400 latches at the top and bottom of the opening.
- C rail as shipped: 30 in device. Cut-down minimum 25 in (PL38). B = 36 in is 9400B. A = 48 in is 9400A.
- Grade 1 certified: ANSI/BHMA A156.3 Grade 1 on the 9000 Series certification page.
- Default RHR: PL38 p.95 -- RHR is the factory default when handing is not specified.
- Panic 9400, not F9400: this listing is panic 9400C. Fire-labeled F9400C is separate.
- Default strikes included: top 426 and bottom 439 on the PL38 p.94 order block.
Technical Specifications
| Feature | Details |
| Device Type | Wide stile surface vertical rod (SVR) |
| Function | 01 Exit Only -- no outside trim |
| Latching | Top and bottom surface vertical rods |
| Door Thickness | 1-3/4 in to 2-1/4 in (PL38 p.95) |
| Handing | RHR factory default when not specified (PL38 p.95) |
| Door height | Specify 7 ft or 8 ft; factory rods are precut for 7 or 8 ft |
| Rail length | C = 30 in as shipped (cut-down minimum 25 in, PL38 p.94) |
| Default strikes | Top 426 / bottom 439 |
| Mounting | Wood and machine screws standard; SNB standard on fire / hurricane |
Ordering & Installation Information
The Dorma 9400C ships as a 30 in C rail, default RHR. Choose 630 satin stainless or 689 sprayed aluminum on this page. The 36 in panic is 9400B. The 48 in panic is 9400A. Fire-labeled F9400C is separate.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 689 - Spray Alumimun |
| Door Height | 7'0" Dr Ht or 8'0" Dr Ht |
| Brand | Dorma |
| Series | Dorma - 9000 Series |
| Door Opening Width | 30 Inches |
| Exit Device Fire Rating | Non Rated Door |
| Exit Device Type | SVR Exit Device |
