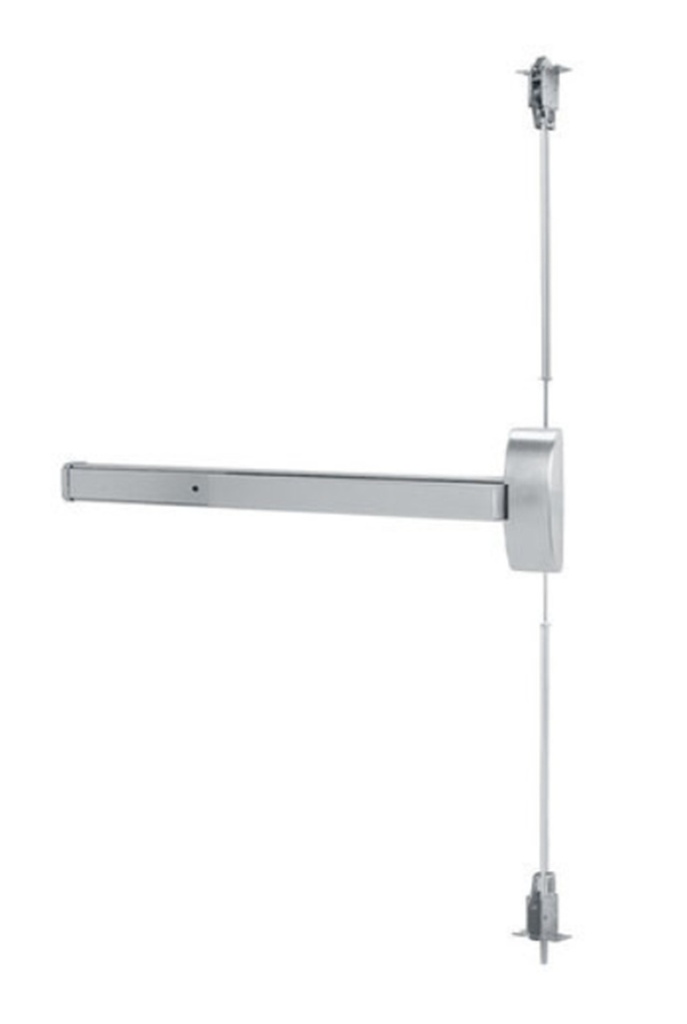

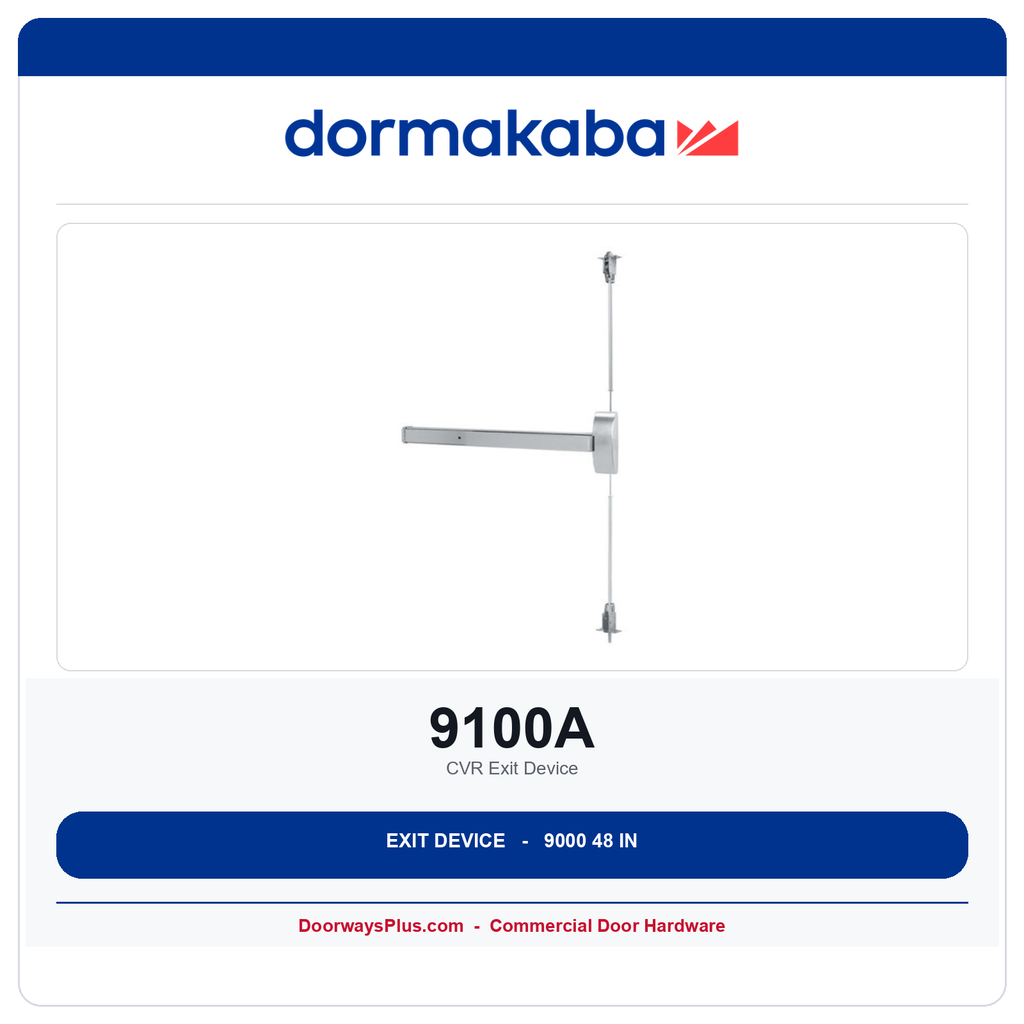

Dorma 9100A CVR Exit Device
The Dorma 9100A is a heavy-duty, Grade 1 concealed vertical rod exit device for wide-stile wood or metal pairs that cannot take a mullion and need the rods hidden. This page is the factory A rail (48 in door), function 01 Exit Only, default RHR. The 36 in device is 9100B. It is not 9100R-630 or 9100L-630.
Grade 1 Strength and Universal Design
Certified to ANSI/BHMA A156.3 Grade 1, the 9100 latches top and bottom with the rods concealed in the door. Specify 7 ft or 8 ft door height -- factory rods are precut for those heights.
Advanced Security and Electrified Integration
This 9100A is the mechanical panic CVR, not F9100. The 9000 order block lists factory options including MLR, ES, MS, and LM. Those options are not on this 01 Exit Only page. Hyphenated 9100R-630 and 9100L-630 are different, cheaper strings.
Key Product Features
- Concealed two-point latching: catalog printed p.14 -- rods stay inside the door. Use when aesthetics or vandalism require the rods hidden.
- A rail as shipped: 48 in device for doors 34 to 48 in. B = 36 in is the 9100B listing.
- Grade 1 certified: ANSI/BHMA A156.3 Grade 1 on the 9000 Series certification page.
- Default RHR: PL38 p.91 -- RHR is the factory default when handing is not specified.
- Panic 9100, not F9100: this listing is panic 9100A. Fire-labeled F9100A is separate.
- Default strikes included: top 418 and bottom 439 on the PL38 p.90 order block.
Technical Specifications
| Feature | Details |
| Device Type | Wide stile concealed vertical rod (CVR) |
| Function | 01 Exit Only -- no outside trim |
| Latching | Top and bottom concealed vertical rods |
| Door Thickness | 1-3/4 in to 2-1/4 in (PL38 p.91) |
| Handing | RHR factory default when not specified (PL38 p.91) |
| Door height | Specify 7 ft or 8 ft; factory rods are precut for 7 or 8 ft |
| Rail length | A = 48 in as shipped (cut-down minimum 34 in, PL38 p.91) |
| Default strikes | Top 418 / bottom 439 |
| Mounting | Wood and machine screws standard; SNB standard on fire / hurricane |
Ordering & Installation Information
The Dorma 9100A ships as a 48 in A rail, default RHR. Choose 630 satin stainless or 689 sprayed aluminum on this page. The 36 in panic is 9100B. Fire-labeled F9100A is separate.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 689 - Spray Alumimun |
| Door Height | 7'0" Dr Ht or 8'0" Dr Ht |
| Brand | Dorma |
| Series | Dorma - 9000 Series |
| Door Opening Width | 48 Inches |
| Exit Device Fire Rating | Non Rated Door |
| Exit Device Type | CVR Exit Device |
