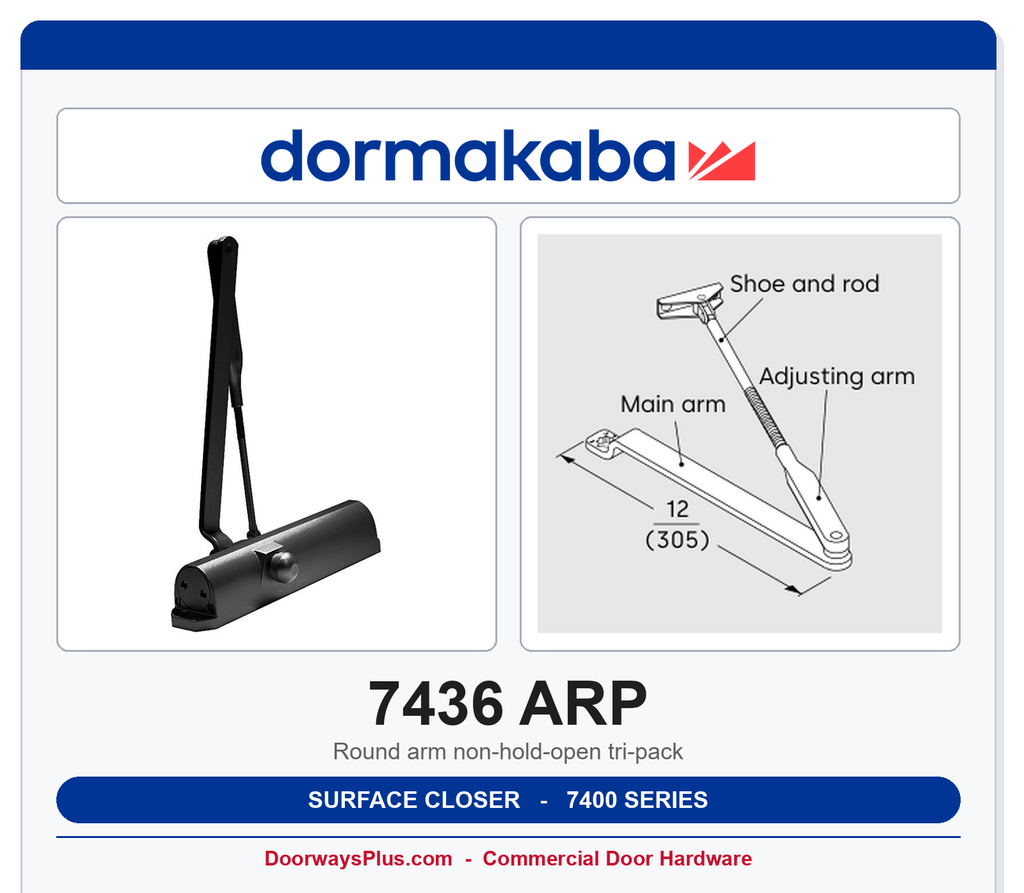

Dorma 7436 ARP Surface Door Closer Non-Hold Open Tri-Pack

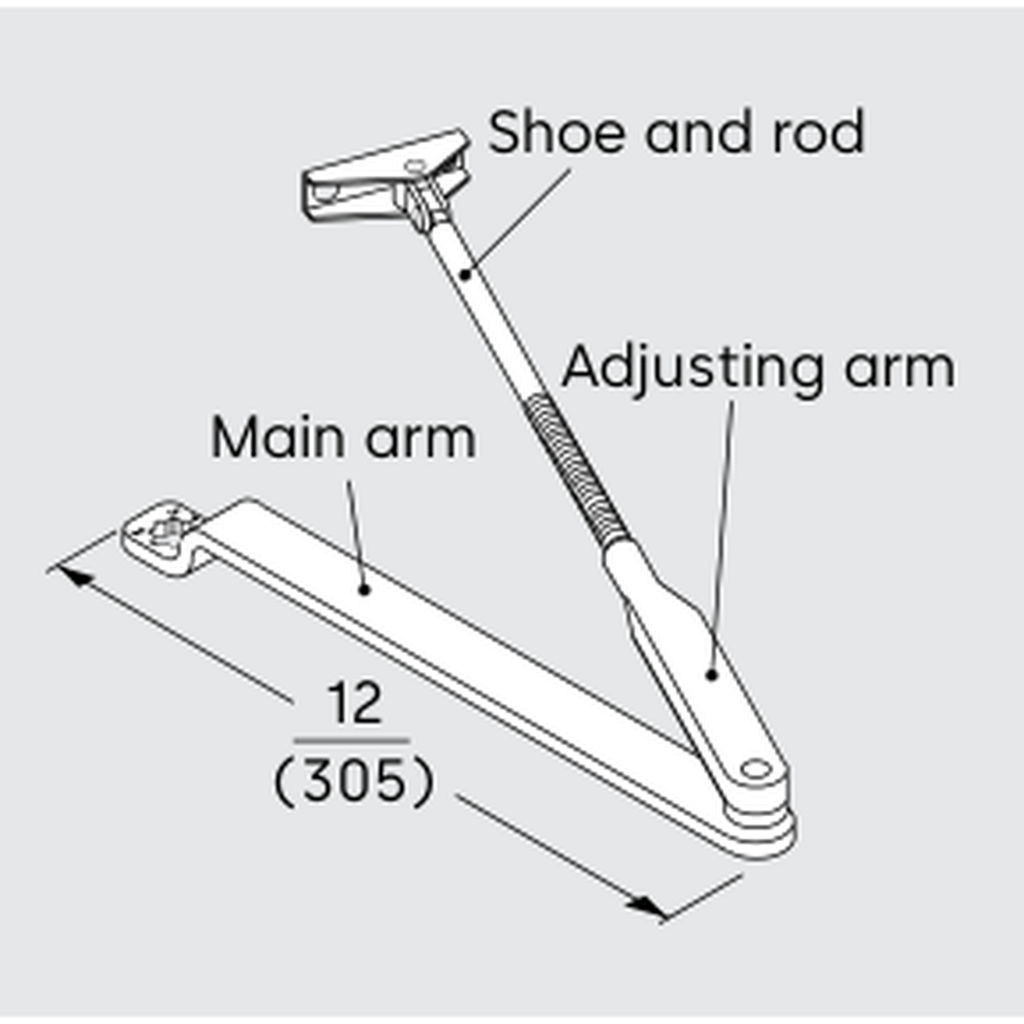

The Dorma 7436 is a 7400 Series surface-applied door closer with the TS93 rack-and-pinion mechanism in the rounded Contur cover. This listing is the ARP arm: Round arm non-hold-open tri-pack (regular, top jamb, and parallel arm for reveals to 4 in). Spring power is field-adjustable 3-6 and ships as size 4.
What is the difference between a 7414 and a 7436?
Both bodies share the 7400 Series Contur cover and the same ARP tri-pack arm. A 7414 adjusts spring sizes 1-4 (ships size 4) and is the listing already on DoorwaysPlus. A 7436 adjusts spring sizes 3-6 (also ships size 4) for heavier doors. Track, TDE, and Super-PA arms are 7436-only in PL38; this page is the ARP tri-pack.
Institutional Grade Features and Benefits
- ANSI/BHMA A156.4 Grade 1: the 7400 Series cut sheet lists Grade 1 for this surface closer.
- Adjustable backcheck: standard on the series; softens the opening if the door is thrown.
- Sweep and latch valves: two noncritical thermostatic valves hold closing speed as temperature changes. Clockwise decreases sweep/latch speed.
- Door range (as printed): exterior and interior widths to 48 in, heights to 96 in, weights to 250 lb. Field-adjustable to the ADA 5 lbf interior opening-force limit on a properly hung door.
- Non-handed mounts: regular, top jamb, and parallel arm are non-handed. Maximum opening 180 degrees where the arm and reveal allow it.
Applications
The 7400 Series is specified on hollow metal, aluminum, and wood doors in commercial construction. Ball-bearing hinges or pivots are the typical hanging hardware. Drop plates and brackets (BP / DP family) are separate closer-parts listings, not included on this page.
Technical Specifications
Listings on the series cut sheet: UL and cUL, UL10C positive pressure (UBC 7.2 1997), CSFM, and MEA. Warranty on the cut sheet is 25 years. This body does not invent a UL file number.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma 7436 ARP |
| Series | Dorma - 7400 Series |
| Arm | Round arm non-hold-open tri-pack (regular, top jamb, and parallel arm for reveals to 4 in) |
| Spring | Adjustable 3-6 (ships size 4) |
| Closer Body Hole Pattern | 10-1/4" x 3/4" |
| Finish with BHMA code | 689 Painted Aluminum, 693 Painted Black, 695 Painted Stat Dark Bronze |
| Grade | ANSI/BHMA A156.4 Grade 1 |
| Listings | UL / cUL, UL10C, CSFM, MEA |
| Warranty | 25 years (series cut sheet) |
| Handing | Non-handed for regular, top jamb, and parallel arm |
| Part Type | Surface-applied door closer |
| Finish with BHMA code | 689 - Painted, Aluminum or 693 - Painted, Black or 695 - Painted, Stat Dark Bronze |
| Brand | Dorma |
| Series | Dorma - 7400 Series |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Closer Body Hole Pattern | 10-1/4" x 3/4" |
