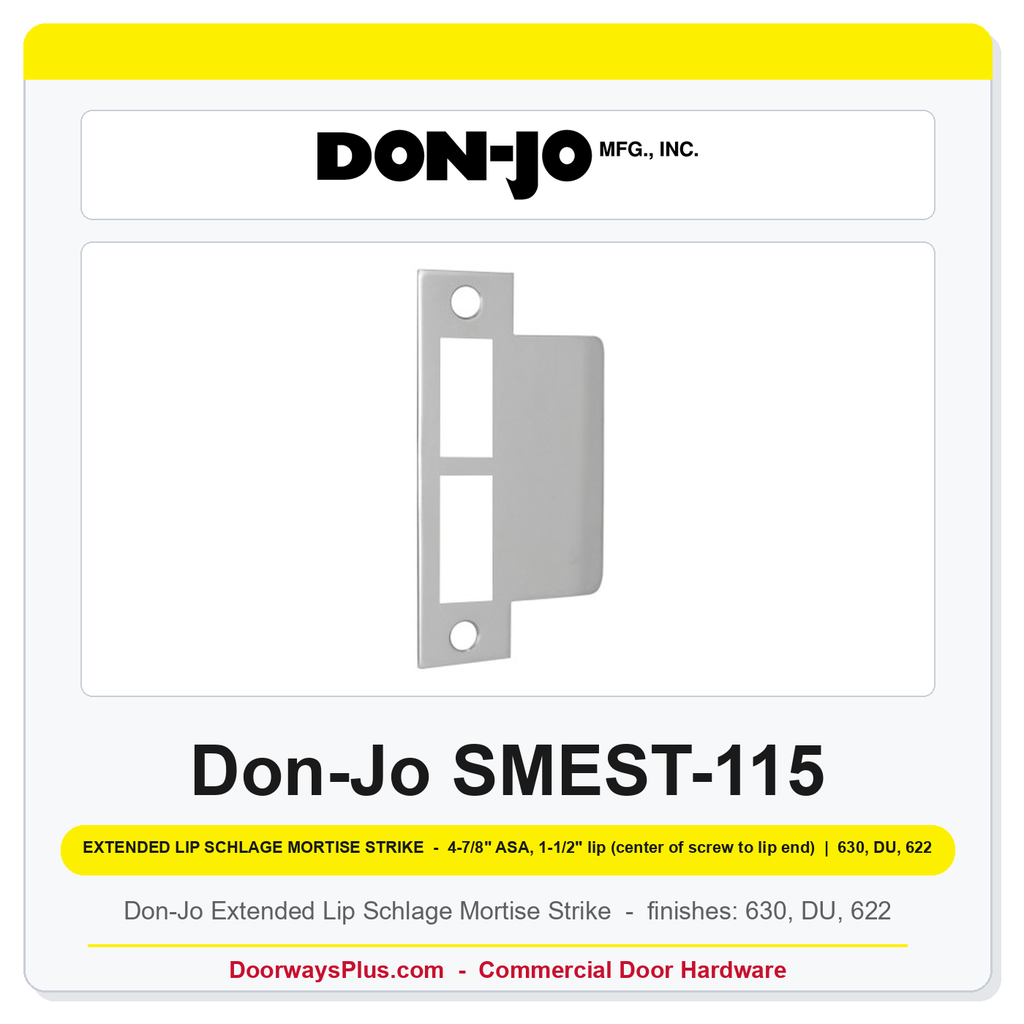

Don-Jo SMEST-115 Extended Lip Mortise Strike – Schlage Prep, 13 Ga. Non-Ferrous, Three Finish Options
The Don-Jo SMEST-115 is a heavy-duty extended lip mortise strike engineered for frames prepped to accept a Schlage mortise lock chassis. Don-Jo Manufacturing produces this ASA strike in 13 ga. (.095) non-ferrous construction, giving specifiers and locksmiths a substantial, deflection-resistant plate where a standard-lip mortise strike simply will not reach the latch bolt. The face plate measures 1-1/2" wide × 4-7/8" tall, with the critical 1-1/2" lip dimension measured from the center of the mounting screw hole to the end of the lip — the spec that confirms frame-to-door-edge alignment on wider stop conditions. Two latch holes accommodate the dual-bolt geometry common to Schlage mortise hardware. DoorwaysPlus carries this extended lip mortise strike in three finishes: 630 satin stainless steel (US32D), Duranodic dark bronze (Don-Jo DU), and 622 / US19 flat black — select the finish that matches the existing frame hardware or architectural specification.
SMEST-115 Extended Lip Mortise Strike — Key Features
- Extended Lip Geometry: 1-1/2" lip (center of screw hole to lip end) bridges the gap between frame edge and latch bolt on frames where a short-lip ASA strike falls short.
- Heavy 13 Ga. (.095) Construction: Non-ferrous plate stock at 13 gauge provides a rigid, durable bearing surface suited to high-cycle commercial mortise lock applications.
- Schlage Mortise Compatibility: Cut to the Schlage mortise prep pattern, making this the correct replacement or new-construction mortise strike for frames already routed for Schlage mortise hardware.
- Dual Latch Holes: Two latch holes match the dual-bolt configuration of a mortise lock chassis — latch bolt and deadbolt engage properly without additional modification.
- Standard ASA Strike Face: 1-1/2" × 4-7/8" face fits standard ASA cutouts; no upsizing of the frame pocket required when replacing an existing mortise strike of the same pattern.
- Three Commercial Finishes: Available in 630 satin stainless steel (US32D), Duranodic dark bronze (DU), and 622 flat black (US19) to coordinate with architectural door hardware specifications.
- Convenient Shelf Pack: Sold in a shelf pack of 5 — practical for locksmiths and hardware distributors stocking multiple finish options.
Technical Details
| Manufacturer | Don-Jo Manufacturing |
| Model Number | SMEST-115 |
| Product Type | Extended Lip ASA Mortise Strike |
| Compatible Prep | Schlage mortise lock (fit/compatibility reference only) |
| Gauge | 13 ga. (.095) |
| Material | Non-ferrous |
| Face Width | 1-1/2" |
| Face Height | 4-7/8" |
| Lip Length | 1-1/2" (center of screw hole to end of lip) |
| Number of Latch Holes | 2 |
| Available Finishes | 630 Satin Stainless Steel (US32D); Duranodic Dark Bronze (Don-Jo DU); 622 / US19 Flat Black |
| Shelf Pack Quantity | 5 |
| Stocking Status | Non-stock; ships direct from Don-Jo Manufacturing |
| Estimated Lead Time | 3–10 business days |
How to Specify / Order
Order the Don-Jo SMEST-115 by specifying the model number followed by the finish designation: SMEST-115-630 for satin stainless steel, SMEST-115-DU for Duranodic dark bronze, or SMEST-115-622 for flat black. This is a non-stock item that ships from Don-Jo; plan for a 3–10 business day lead time when scheduling installation or procurement.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or DU - Duronodic or US19 - Flat Black |
| Brand | Don-Jo |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Part Type | Strike |
