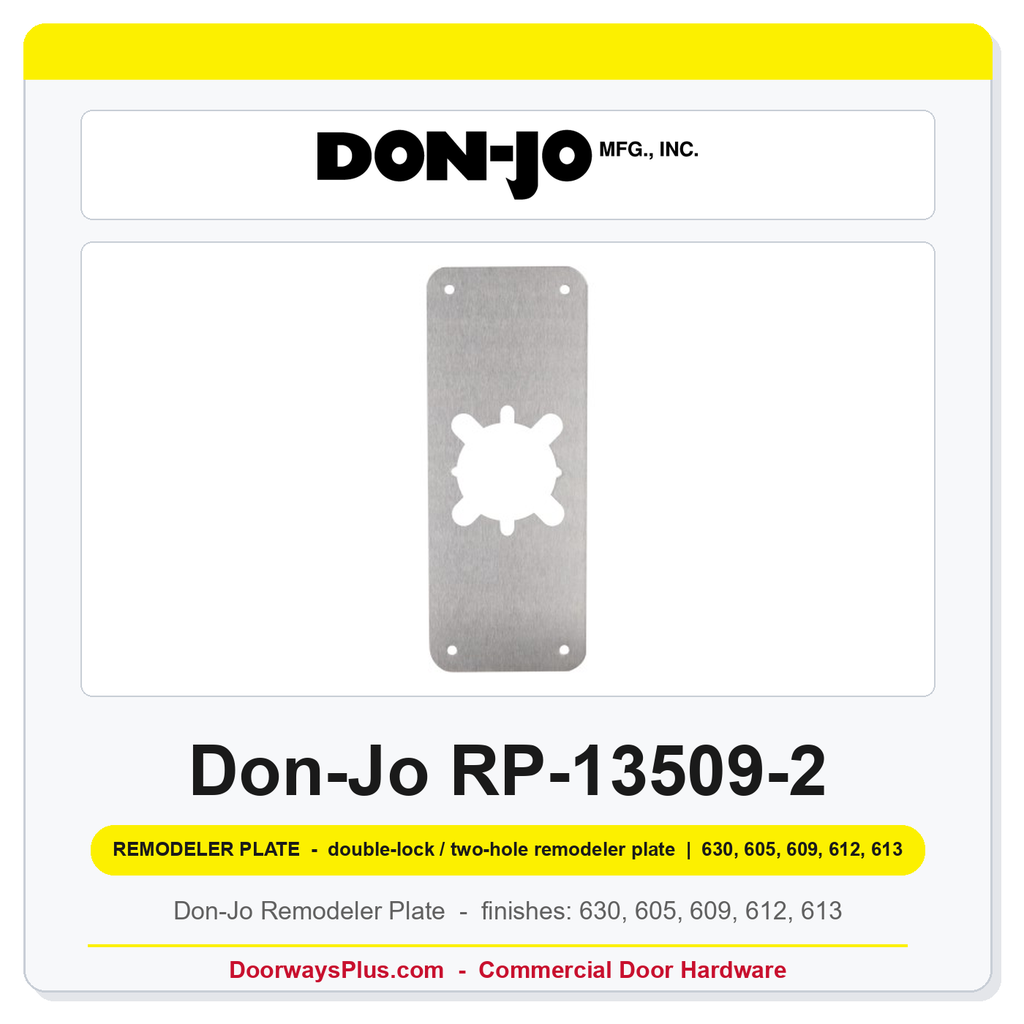

Don-Jo RP-13509-2 Remodeler Plate, 3-1/2" x 9", Five Finish Options
Don-Jo Manufacturing's RP-13509-2 is a double-lock / two-hole remodeler plate engineered to cover and conceal the scarred or oversized mortise cutout left behind when a double-bore lockset is removed or replaced on an existing door frame. Measuring a generous 3-1/2" wide by 9" long and formed from .032" gauge sheet, this scar plate provides a clean, finished appearance over legacy prep marks without requiring frame replacement or costly patching work. Five factory finish options are stocked to the shelf pack: 630 Satin Stainless Steel (US32D), 605 Bright Brass (US3), 609 Satin Brass Blackened (US5), 612 Satin Bronze (US10), and 613 Oil-Rubbed Bronze (US10B) — making it straightforward to match virtually any existing door hardware finish. Specifiers, locksmiths, and facility maintenance teams reach for this remodeler plate whenever a door frame prep needs to be cosmetically corrected after a lock changeout, a rekey project, or a commercial retrofit.
RP-13509-2 Remodeler Plate — Key Features
- Two-Hole / Double-Lock Coverage: Sized and pre-punched to conceal the dual-bore cutout pattern left by a double-lock or two-hole lockset installation, eliminating visible frame damage.
- Generous 3-1/2" x 9" Footprint: The extra length of this scar plate accommodates a wide range of legacy mortise and double-bore frame preps found on commercial and residential door frames alike.
- Consistent .032" Gauge Construction: The uniform sheet thickness delivers a flat, flush lay against the door frame face for a professional finished look after any remodeling or lock-replacement project.
- Five Coordinating Finishes: Available in Satin Stainless Steel (630/US32D), Bright Brass (605/US3), Satin Brass Blackened (609/US5), Satin Bronze (612/US10), and Oil-Rubbed Bronze (613/US10B) — covering the most specified ANSI/BHMA finish codes in commercial and institutional hardware schedules.
- Don-Jo Manufacturing Quality: Produced by Don-Jo, a recognized North American manufacturer of door hardware accessories, ensuring consistent dimensional accuracy and finish durability across the shelf pack.
- Shelf Pack of 10: Packaged in quantities of 10, convenient for contractors, locksmiths, and distributors managing multi-door remodeling or retrofit projects.
Technical Details
| Manufacturer | Don-Jo Manufacturing |
| Model Number | RP-13509-2 |
| Product Type | Remodeler Plate (Scar Plate) |
| Application | Double-lock / two-hole remodeler plate; covers legacy double-bore or oversized frame preps |
| Length | 9" |
| Width | 3-1/2" |
| Gauge | .032" |
| Handing | Not handed |
| Available Finishes | 630 Satin Stainless Steel (US32D), 605 Bright Brass (US3), 609 Satin Brass Blackened (US5), 612 Satin Bronze (US10), 613 Oil-Rubbed Bronze (US10B) |
| Shelf Pack | 10 |
How to Specify / Order
Order by specifying the model number RP-13509-2 together with the required finish code: 630, 605, 609, 612, or 613. This item is non-stock and ships directly from Don-Jo Manufacturing. Please allow 3–10 business days lead time. Shelf pack quantity is 10 units per pack.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US5 - Blackened Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Plate Height | 9" Inches |
| Plate Width | 3-1/2" |
