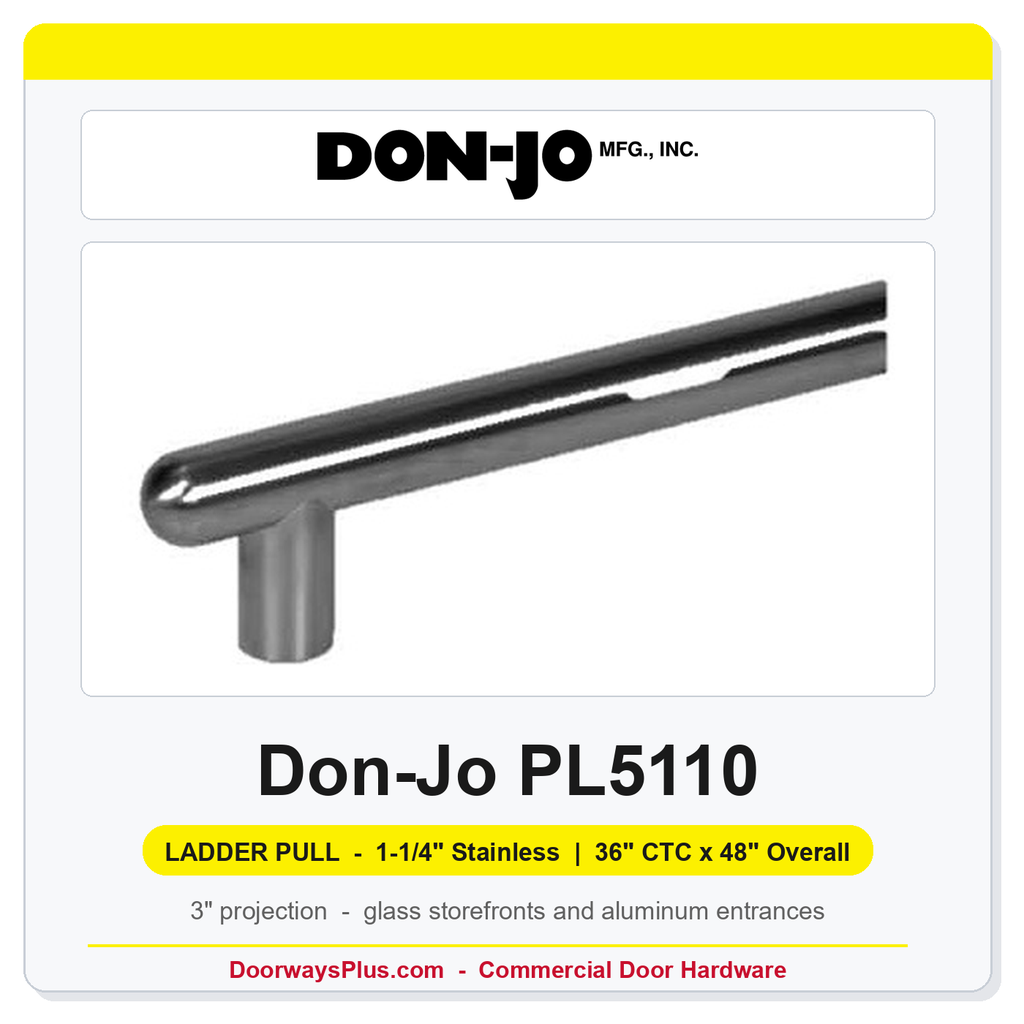

Don-Jo PL5110 Ladder Pull — 1-1/4" Stainless, 36" Center-to-Center
The PL5110 is a straight ladder pull in 1-1/4" diameter stainless steel: 36" center-to-center, 48" overall, with a 3" projection and 1-3/4" hand clearance. It is the full-height pull used on glass storefronts and aluminum entrances, where a single tall grab replaces a conventional door pull.
Where it fits
Ladder pulls suit all-glass and aluminum-stile entrance doors, retail storefronts, and any opening where a full-height pull has been specified. Overall length runs 12" longer than the center-to-center dimension, so confirm door height and stile width before ordering.
Specification highlights
- 1-1/4" diameter stainless steel — 630 satin or 629 polished.
- 36" center-to-center, 48" overall — the shortest of the straight PL5110 range.
- 3" projection, 1-3/4" clearance.
- Multiple mounting methods — thru-bolt, back-to-back, or surface concealed, including glass-door methods using a 3/8-24 decorative bolt with a 5/8" plexiglass bushing and neoprene washers.
Ordering notes
This series also runs at 48", 60" and 72" center-to-center. Don-Jo recommends a center post on any pull over 60" center-to-center. Split finishes, other finishes, and non-standard sizes or center-to-center dimensions are special order.
This item is made to order.
Technical Specifications
| Model | Don-Jo PL5110 |
| Type | Straight ladder pull |
| Diameter | 1-1/4" |
| Center to Center | 36" |
| Overall Length | 48" |
| Projection | 3" |
| Clearance | 1-3/4" |
| Material | Stainless steel |
| Finishes | 630 satin stainless, 629 polished stainless |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US32 - Polished Stainless Steel |
| Brand | Don-Jo |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Center to Center Distance | 36" CTC |
| Pull Handle Overall Length | 48" |
| Handle Diameter | 1-1/4" |
