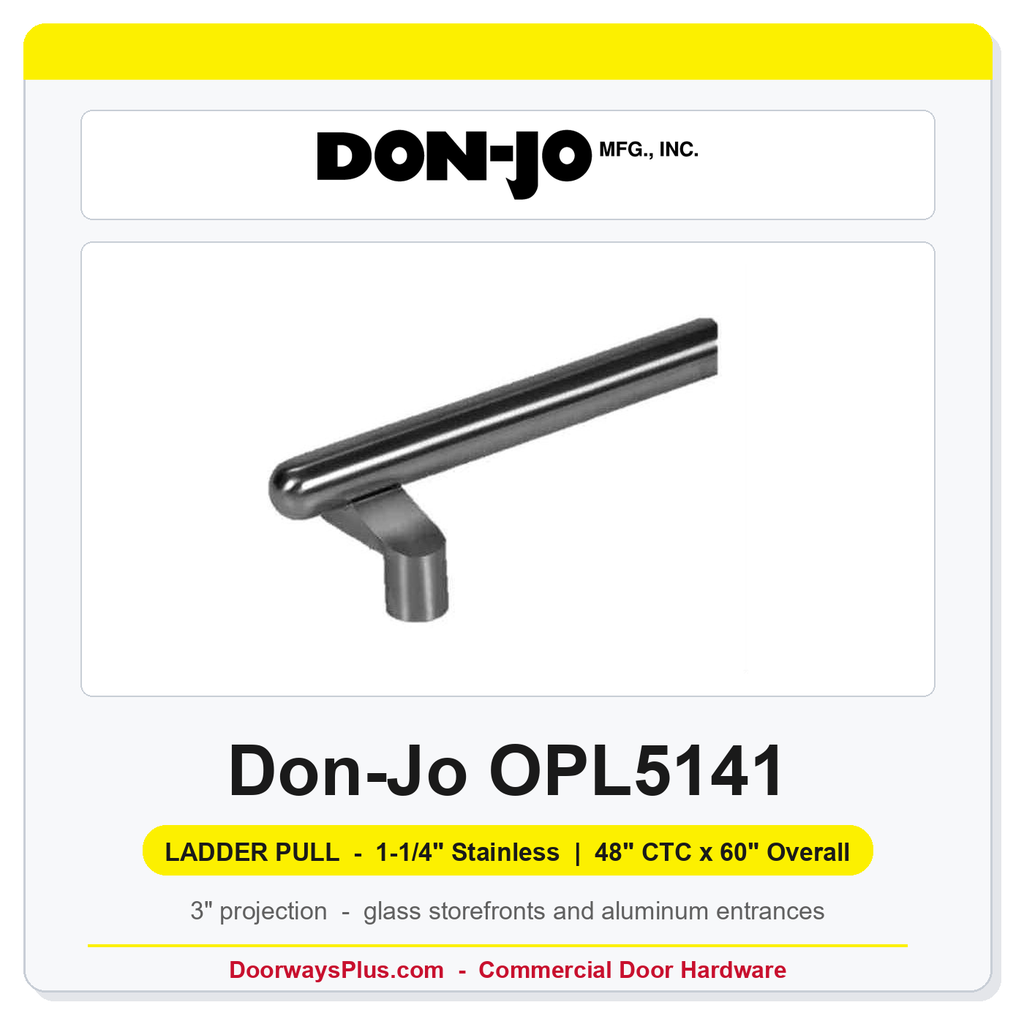

Don-Jo OPL5141 Offset Ladder Pull — 48" Center-to-Center
The Don-Jo OPL5141 is a offset ladder pull in 1 1/4" diameter stainless steel: 48" center-to-center and 60" overall, with a 3" projection and 1 3/4" hand clearance. It is the full-height pull used on glass storefronts and aluminum entrances, where one tall grab replaces a conventional door pull.
The offset geometry carries the grip clear of the door face. Offset ladder pulls step up to 3/8-24 fasteners where the straight posts use 1/4-20.
Where it fits
Ladder pulls suit all-glass and aluminum-stile entrance doors, retail storefronts, and any opening where a full-height pull has been specified. Overall length runs 12" longer than the center-to-center dimension, so confirm door height and stile width before ordering.
Specification highlights
- 1 1/4" diameter stainless steel — 630 satin or 629 polished.
- 48" center-to-center, 60" overall.
- 3" projection, 1 3/4" hand clearance.
- Multiple mounting methods — thru-bolt, back-to-back or surface concealed, including glass-door methods using a decorative thru bolt with a 5/8" plexiglass bushing and neoprene washers.
Ordering notes
This series runs at 36", 48", 60" and 72" center-to-center. Don-Jo recommends a center post on any pull over 60" center-to-center. 629 and 630 are the standard finishes; 313, 315, 605, 606, 613 and 622 are available as custom finishes, and non-standard sizes or center-to-center dimensions are special order.
This item is made to order.
Technical Specifications
| Model | Don-Jo OPL5141 |
| Type | Offset Ladder Pull |
| Diameter | 1 1/4" |
| Center to Center | 48" |
| Overall Length | 60" |
| Projection | 3" |
| Clearance | 1 3/4" |
| Material | Stainless steel |
| Finishes Carried | 629, 630 (629 polished, 630 satin) |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US32 - Polished Stainless Steel |
| Brand | Don-Jo |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Handle Diameter | 1-1/4" |
