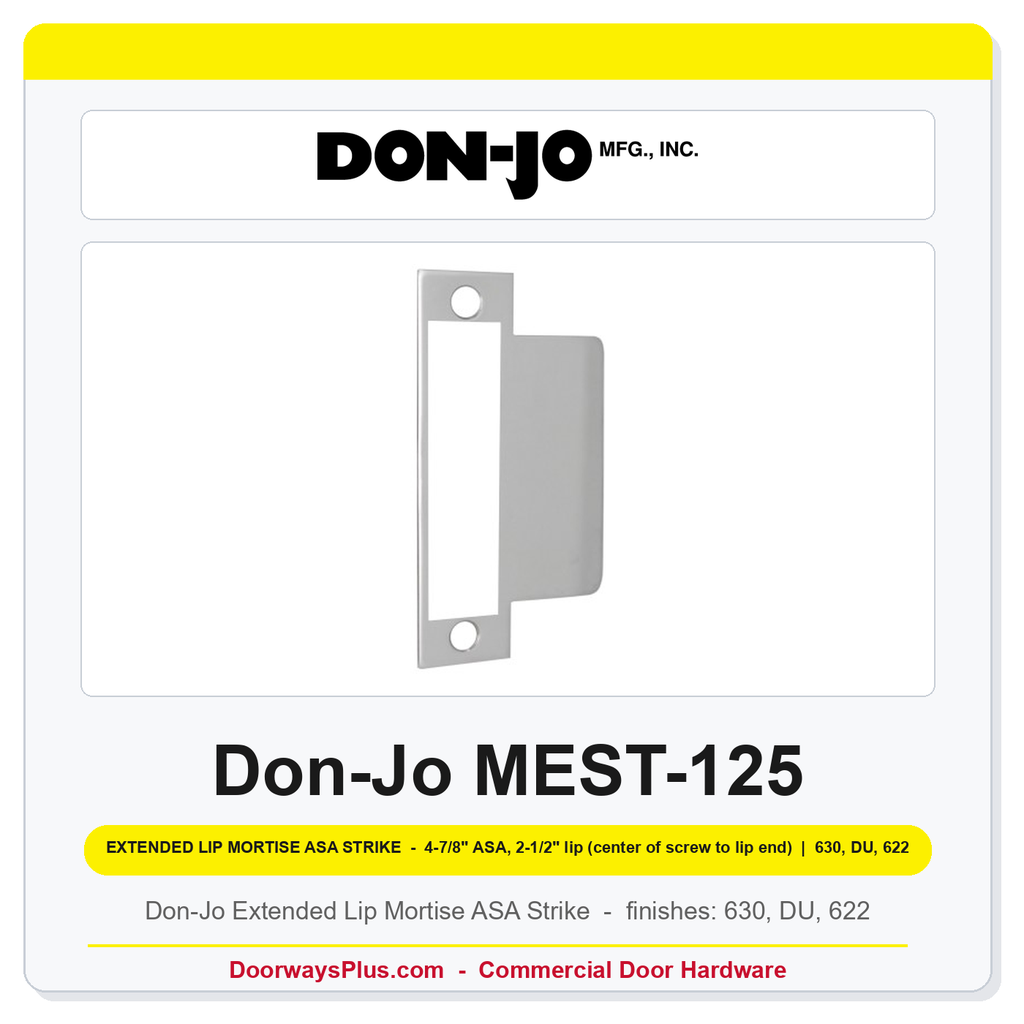

Don-Jo MEST-125 Extended Lip Mortise ASA Strike – 2-1/2" x 4-7/8", 13 Gauge, Satin Stainless, Dark Bronze & Flat Black

The Don-Jo MEST-125 Extended Lip Mortise ASA Strike is a heavy-duty, non-ferrous mortise strike engineered for doors that require a longer lip reach between the latch bolt and the frame-mounted catch. Manufactured by Don-Jo Manufacturing, the MEST-125 carries a 13 ga. (.095) wall thickness — the same commercial-grade construction specified on institutional and multi-family projects where an undersized or lightweight strike will not hold alignment over time. The extended lip ASA strike measures 2-1/2" wide × 4-7/8" tall, with the 2-1/2" lip dimension measured from the center of the screw hole to the end of the lip, providing the clearance needed on thicker door stops or offset frames where a standard-lip mortise strike falls short. A single latch hole accommodates the mortise lock latchbolt, and the face plate seats flush in a standard ASA mortise strike prep. Available in three finishes — 630 Satin Stainless Steel (US32D), Duranodic Dark Bronze (Don-Jo DU), and 622 / US19 Flat Black — the MEST-125 coordinates with the most common commercial hardware finish programs without requiring special orders on the finish itself.

MEST-125 Extended Lip Mortise Strike Features

• Extended Lip Geometry: 2-1/2" lip (center of screw hole to lip end) bridges the gap on thicker door stops and offset frame conditions where a standard-lip mortise ASA strike does not align with the latchbolt travel path.
• 13 Gauge (.095) Non-Ferrous Construction: Heavy commercial wall thickness resists deformation over high-cycle use, and non-ferrous material composition supports corrosion-resistant applications in humid or coastal environments.
• 4-7/8" Face Height — Full ASA Format: Sized to fit a standard mortise strike mortise cutout; the taller face covers the pocket cleanly with no exposed wood or hollow-metal substrate.
• Single Latch Hole: Accepts a mortise lock latchbolt; the clean single-hole format avoids interference with adjacent bolt or roller latch preparations on the lock body.
• Three Commercial Finishes: 630 Satin Stainless Steel (US32D), Duranodic Dark Bronze (DU), and 622 Flat Black (US19) are all stocked within Don-Jo's program, giving specifiers immediate finish-schedule flexibility.
• Shelf Pack of Five: Packaged in units of five — practical for door shops, locksmiths, and contractors running multiple openings of the same specification on a project.

Technical Details

How to Specify / Order

Order the Don-Jo MEST-125 by specifying the model number followed by the finish designation: MEST-125-630 for Satin Stainless Steel (US32D), MEST-125-DU for Duranodic Dark Bronze, or MEST-125-622 for Flat Black (US19). This item is non-stock and ships directly from Don-Jo Manufacturing; allow 3–10 business days for fulfillment. Shelf pack quantity is 5 units per pack — confirm quantity requirements before placing an order to avoid partial-pack fulfillment delays on larger projects.
