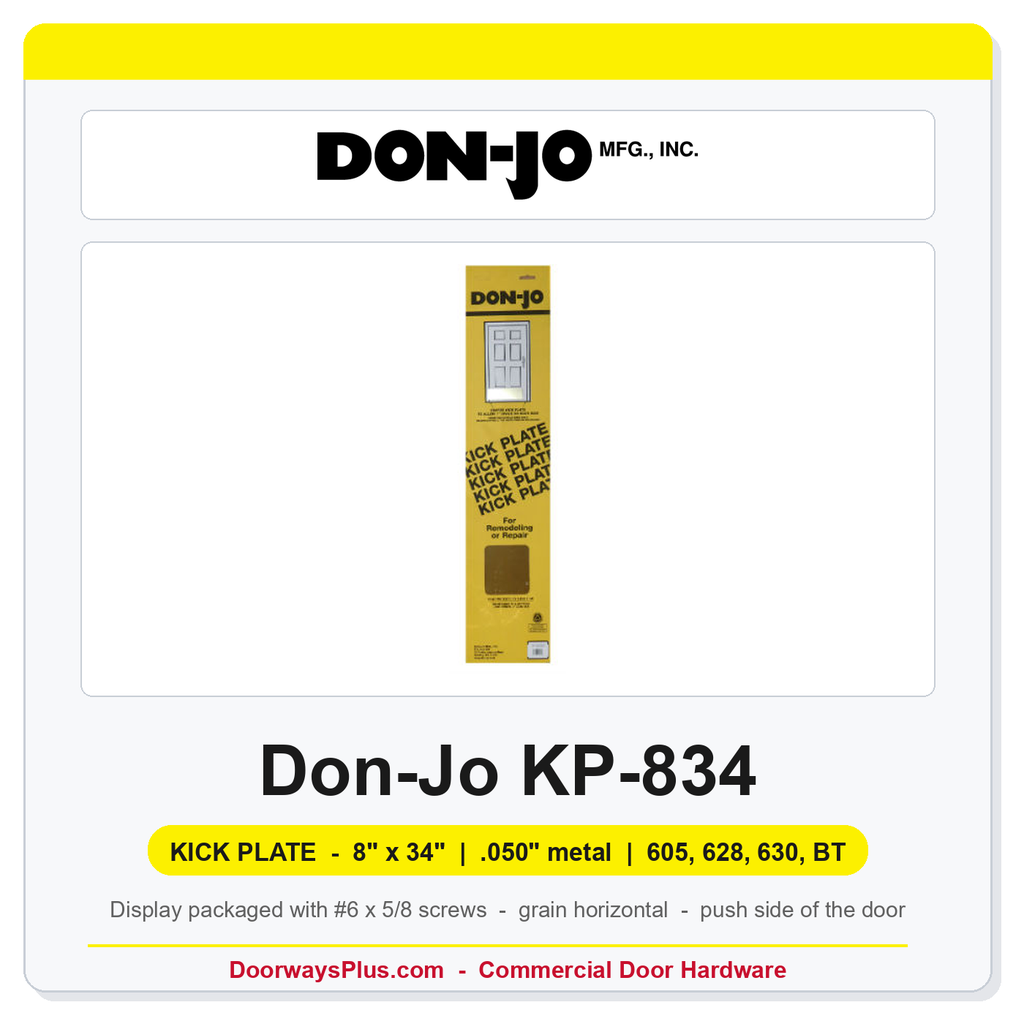

Don-Jo KP-834 Kick Plate
The Don-Jo KP-834 is a pre-sized 8" x 34" kick plate in .050" metal, sold in Don-Jo's display package with its mounting screws. The KP number encodes the size: 8" high, 34" wide. Because it is pre-cut, it is the quick answer where a stock size fits and a made-to-size order is not needed.
A kick plate mounts on the push side of the door, at the bottom, to take the abuse from feet, carts and mop buckets. On a pair, order two. For other sizes or options, use Don-Jo's made-to-size protection plates instead of the KP series.
Specification highlights
- 8" x 34", .050" thick metal.
- Satin/grain horizontal to the door, per Don-Jo.
- #6 x 5/8" sheet metal screws included.
- Display packaged for shelf or hang display.
Finishes carried
- 605 — bright brass
- 628 — satin aluminum
- 630 — satin stainless steel
- BT — brass tone (Don-Jo finish code)
Ordering notes
Order as number + finish, e.g. KP-834-605. This is a non-stock item that ships from Don-Jo; a pre-sized KP plate is a fixed catalog number, not a made-to-size order.
Technical Specifications
| Model | Don-Jo KP-834 |
| Type | Kick plate, display packaged (KP series) |
| Size | 8" high x 34" wide |
| Thickness | .050" metal (Don-Jo) |
| Finishes Carried | 605 bright brass, 628 satin aluminum, 630 satin stainless steel, BT brass tone (Don-Jo finish code) |
| Grain | Satin/grain runs horizontal to the door (Don-Jo catalog) |
| Fasteners | #6 x 5/8" sheet metal screws, packaged with the plate (Don-Jo catalog) |
| ANSI/BHMA | J101 kick plate category (Don-Jo catalog) |
| Package | Display pack, 8-1/4" x 38-1/2" hang/stack carton (Don-Jo catalog) |
| Lead Time | 3–10 business days (non-stock, ships from Don-Jo) |
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or BT - Brass Tone |
| Brand | Don-Jo |
| Plate Material Gauge | 0.050" |
| Kick Plate Dimension | 8 x 34 |
| Type of Door Protection | Kick Plate |
