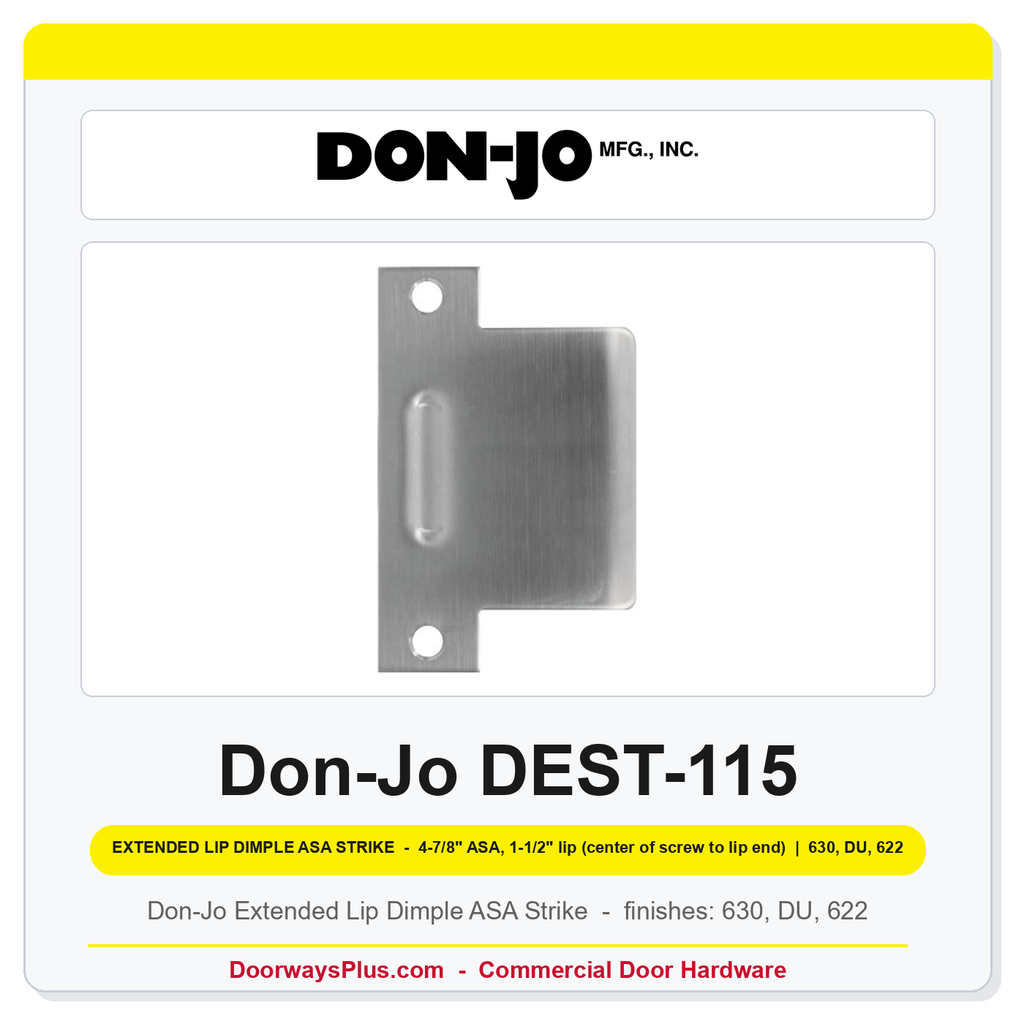

Don-Jo DEST-115 Extended Lip Dimple ASA Strike – Satin Stainless, Dark Bronze & Flat Black

The Don-Jo DEST-115 is an extended lip dimple ASA strike engineered for hollow-metal and wood-frame openings where a standard 4-7/8" ASA strike is specified but the jamb depth or stop profile requires a dimpled face to seat the latch cleanly against the strike box. Don-Jo Manufacturing produces this strike at a 1-1/2" lip width (measured from the center of the screw hole to the end of the lip) and a 4-7/8" overall height, matching the universal ASA strike footprint used by the majority of cylindrical and bored-lock preparations in commercial construction. The dimple geometry in the face of the strike allows the latch bolt to project fully while the strike plate lies flush against a rabbeted or beveled door stop — a detail that matters on installations where a flat extended-lip strike would rock or misalign. Three finish options are stocked on this listing: 630 satin stainless steel (US32D), Duranodic dark bronze (Don-Jo DU), and 622 / US19 flat black, covering the most common commercial finish specifications. Note on gauge: Don-Jo's product page currently lists this strike as 18 ga. (.050); however, Don-Jo's own 2026 Strike-Plates catalog specifies the DEST series at 13 ga. (.095). Until Don-Jo reconciles the discrepancy, specifiers and estimators should reference the catalog figure — 13 ga. — as the more recently published data point.

DEST-115 Extended Lip Dimple Strike – Features & Benefits

• Extended Lip ASA Pattern: 4-7/8" height matches the industry-standard ASA strike dimension for direct replacement or new-construction specification without field modification to the jamb strike pocket.
• Dimpled Face Profile: The coined dimple in the strike face allows the latch bolt to project fully while the plate lies flush against a beveled or rabbeted door stop, eliminating the rocking and misalignment common with flat extended-lip strikes on certain jamb profiles.
• Heavy-Gauge Construction (Catalog-Specified 13 ga. / .095"): The 2026 Don-Jo Strike-Plates catalog rates the DEST series at 13 ga. (.095"), providing the plate rigidity required for repetitive latch-bolt contact in high-cycle commercial openings.
• 1-1/2" Lip Dimension: Lip length is measured from the center of the screw hole to the end of the lip, giving installers and specifiers the precise measurement needed to confirm compatibility with the door stop and frame rabbet.
• Three Commercial Finishes: Available in 630 satin stainless steel (US32D), Duranodic dark bronze (Don-Jo DU), and 622 / US19 flat black — finish designations that align with BHMA finish codes used on hardware schedules and submittal sets.
• Universal ASA Strike Footprint: The DEST-115 drops into any jamb that accepts a standard extended-lip ASA strike, making it suitable for new construction specifications and direct replacement projects without re-mortising the frame.
• Sold in Shelf Packs of 10: Packaged in quantities of 10, supporting both single-opening replacements and multi-door new-construction projects without partial-pack waste.

Technical Details

How to Specify / Order

Order by specifying the model number and finish designation: DEST-115 630 (satin stainless), DEST-115 DU (Duranodic dark bronze), or DEST-115 622 (flat black). This item is non-stock and ships direct from Don-Jo Manufacturing; allow 3–10 business days lead time from order placement. Sold in shelf packs of 10.
