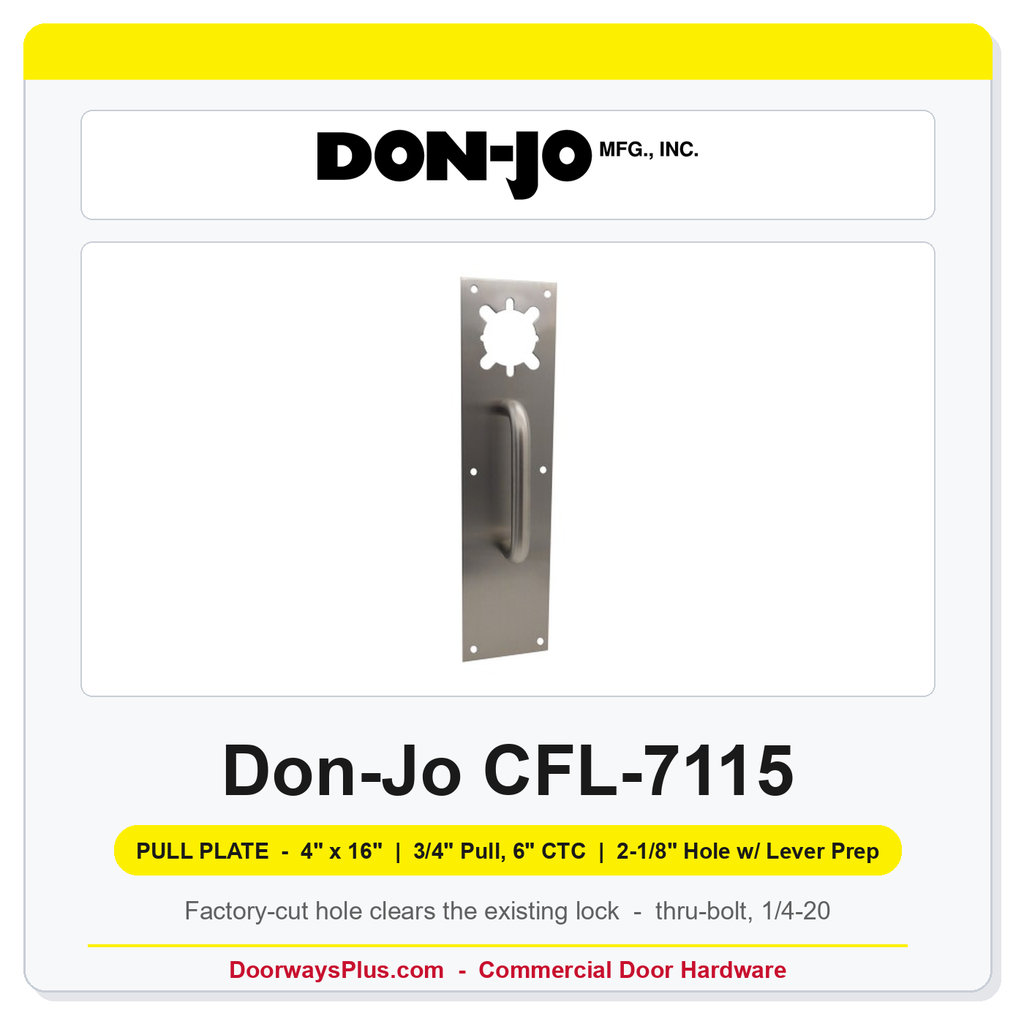

Don-Jo CFL-7115 Pull Plate with 2-1/8" Hole w/ Lever Prep
The Don-Jo CFL-7115 is the standard 4" x 16" Don-Jo 7115 pull plate supplied with a factory-cut 2-1/8" Hole w/ Lever Prep, so it can be fitted over the existing lock hardware without drilling the plate on site. It protects the door face around the hardware on corridor, restroom and back-of-house openings.
The plate carries the same 3/4" round bar pull as the Don-Jo 7115, on 6" centers with 2-1/4" projection and 1-1/2" hand clearance, thru-bolted with finish washers.
Specification highlights
- 4" x 16" plate, 0.050" material — the same blank as the Don-Jo 7115.
- 2-1/8" Hole w/ Lever Prep cut at the factory; see the cut sheet for hole location and the mounting-hole pattern.
- Countersunk mounting holes, fasteners supplied.
Ordering notes
Order as number + finish. Confirm the hole size against the lock hardware it must clear before ordering; the plate is not field-modifiable without spoiling the finish.
This item is made to order.
Technical Specifications
| Model | Don-Jo CFL-7115 |
| Type | Pull Plate with 2-1/8" Hole w/ Lever Prep |
| Plate Size | 4" x 16" |
| Material Thickness | 0.050" |
| Hole | 2-1/8" Hole w/ Lever Prep |
| Base Plate | Don-Jo 7115 pull plate |
| Pull | 3/4" round bar |
| Center to Center | 6" |
| Projection | 2-1/4" |
| Clearance | 1-1/2" |
| Mounting | Thru-bolt (1/4-20 with finish washer) |
| Finishes Carried | 605, 606, 613, 628, 629, 630 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or US32 - Polished Stainless Steel |
| Brand | Don-Jo |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Plate Height | 16" |
| Plate Width | 4" |
| Center to Center Distance | 6" CTC |
| Handle Diameter | 3/4" |
| Plate Material Gauge | 0.050" |
